Home / Products / Refrigerated Heating Circulator

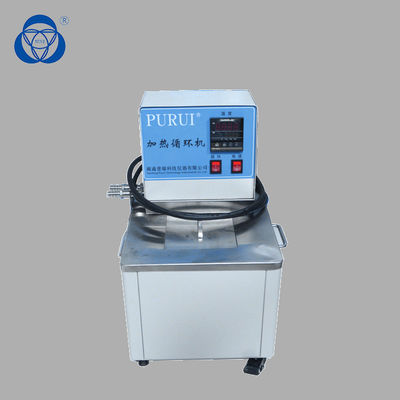

Reactor Refrigerated Heating Circulator , Refrigerated Water Bath Open Type

Reactor Refrigerated Heating Circulator , Refrigerated Water Bath Open Type
Reactor Refrigerated Heating Circulator , Refrigerated Water Bath Open Type Reactor Refrigerated Heating Circulator , Refrigerated Water Bath Open Type Reactor Refrigerated Heating Circulator , Refrigerated Water Bath Open Type
Basic Information
Place of Origin: NANTONG, CHINA
Brand Name: NTSJ
Certification: ISO9001
Model Number: GX-2005
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: polywood case
Delivery Time: 5 work days
Payment Terms: T/T, L/C, Western Union
Supply Ability: 100 sets per month
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Material: Stainless Steel Temperature Range: Rt~200℃
Voltage: 220V Max Power: 2.6KW
High Light:

polyscience refrigerated circulating baths

,

heating cooling circulator

,

opening type heating circulator

Product

This product adopts 304 stainless steel plate as the liner and high qualified plastic sprayed cold rolled plate as the shell. There is a cotton insulation between oil bath shell and liner which has excellent thermal insulation effect. The special design of inlet of outlet of circulation liquid make the heat conducting oil form circulation in oil bath to ensure the temperature uniformity of oil and stability of temperature control.



Features

Wide working temp range, the max temp range is Home Temp-200℃.



Controller with 2 double row of LED displays can show temp setting value and actual value at same .



PID controller with precise temp control and small temp stamping.



Adopt solid relay to control the circuit without touch point and no spark to prolong the life.



Can select water cooling which can cool down quickly and solve the problem that the natural cooling time is too long.





Technical Parameter of Opening Type Heating Circulator

Model No GX-2005
Temp Range RT~ 200℃
Temp Accuracy ±0.5℃
Temp Resolution 0.1K
Controller PID Fuzzy Controller
Oil Groove Tank 10L
Heating Power 2.5KW
Max Flow of Circulation Pump 20L/min
Max Pressure of Circulation Pump 1bar
Size of Inlet and Outlet ¢15
Temp Probe PT100
Expansion Groove Material SUS304
Shell Material Plastic Spray on Cold Rolled Sheet
Electric Famous Brand such as Zhengtai etc
Dimension 385×250×560
Max Power 2.6kw
Power 220V;50HZ
Weight 25KG



Factory

Reactor Refrigerated Heating Circulator , Refrigerated Water Bath Open Type 0

Reactor Refrigerated Heating Circulator , Refrigerated Water Bath Open Type 1Reactor Refrigerated Heating Circulator , Refrigerated Water Bath Open Type 2

Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument. Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.

Advantage of us is customize according to client need. We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, new material, noble material.
