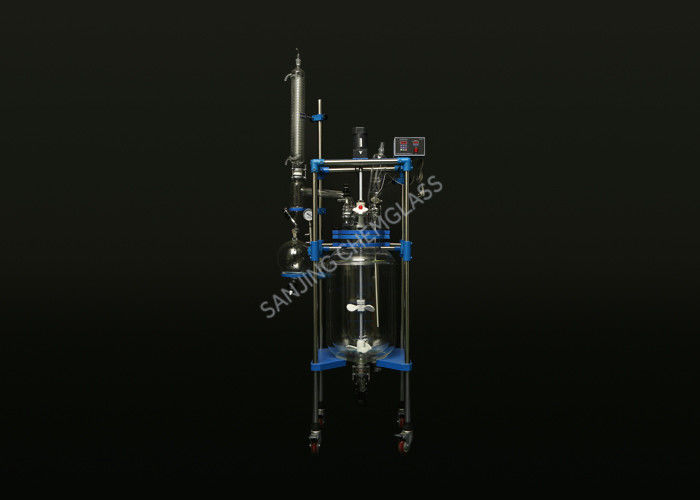

Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank

Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank
Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank
Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank
Basic Information
Place of Origin: CHINA
Brand Name: NTSJ
Certification: CE,ISO9001
Model Number: FPGR-50
Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Time: within 5days after payemnt received
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 500 sets/momth
Get Best Price Contact Now Chat Now
  • Detail Information
  • Product Description
Condition: NEW Type: Reaction Kettle
Weight: 68kg ~ 190kg Warranty: 1 Year
Pipe Fitting Material: 304 Stainless Steel Vacuum Degree: 0.098mpa
Automatic Grade: Semi-Automatic Voltage: 220V/50Hz
Certification: CE,ISO9001 Application: Lab Stirring, Distillation
High Light:

jacketed glass vessel

,

double layer glass reactor

,

50L explosion proof glass reactor

50l Double Layer Jacketed Glass Reactor Laboratory from China

Double glass reactor double glass design, inner into reaction menstruum do stirring reaction, interlayer can pass different cold sources (cryoprotectants, hot water or hot oil) do cycle heating or cooling reaction. Setting thermostat conditions, in confined glass reactor, can use require atmospheric or negative pressure conditions conducted stirring response and do reaction solution reflux and distillation is modern Fine Chemical Factory, biopharmaceuticals and new materials synthesized ideal test production equipment.



Main features

Customizable

1. Constant rotate speed, no electric brush, no spark, safe and stable, enable continuous working.
2. Full set of glass part is produced by G3.3 borosilicate glass, owns excellent chemical and physical properties.
3. When glass interlayer connecting to hot oil and been circulated, it can do heating reaction, connecting to refrigerating fluid can do low temperature reaction.
4. Enable reaction under normal temperature, that is connecting to tap water can take away the reaction heat quickly.
5. Discharge outlet has flange mouth and PTFE valve, there has no dead angle in vessel, detachable and convenient for solid material to discharge.
6. Main body is made from stainless steel, which is beautiful and anti-corrosion.
7. Sealed by PTFE component, be able to maintain higher vacuum degree.
8. Be able to work under normal and negative pressure, negative pressure up to -0.098MPa.
9. Alternating current dynamo conducts frequency control stirring, reliable operation, large moment of force and no spark.
10. The inner core of stirring rod is made from 321 stainless steel, strengthened anti-corrosion property, military technology makes workmanship more exquisite, operation with high proficiency.




Product Model

Volume(L)

Neck No.on Cover

External
Diameter of
inner Vessel(mm)

External
Diameter of
outer Vessel(mm)

Cover Diameter

Vessel Height(mm)

Motor Power(w)

Vacuum Degree(Mpa)

Rotation
Speed(rpm)

Torque(Nm)

Power(V)

Dimension(mm)
PGR-3
3
4
150
200
150
300
40
0.098
50-1400
0.27
220
320*350*900
PGR-10
10
6
230
265
450
140
0.098
50-600
2.23
220
650*650*1900
PGR-50
50
6
365
410
265
850
140
0.098
50-600
2.23
220
800*600*2300
PGR-100
100
6
460
500
340
950
250
0.098
50-600
3.98
220
1000*700*2700
PGR-200
200
6
600
650
340
1200
750
0.098
50-600
6.37
220
1200*900*3200

Product Details

Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank 0

Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank 1



Packing and delivery

Packaging
-The 2L mini rotary evaporator/ vacuum rotary evaporator glass parts will be wrapped with foam, then put into the carton, the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping
-We can ship the goods to you by International Express such as DHL, UPS, TNT, EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.

Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank 2

Our factory

Nantong Sanjing Chemglass Co . Ltd is one of largest professional manufacturers of chemical glass equipments in China,The company specializes in design , production and manufacturing of biological and chemical testing instruments and pharmaceutical glass equipments , main products are : glass reactor series , rotary evaporator chemical glass pipes , glass condenser series , glass reaction devices series , bath pots series , heating circulator series , thermostatic bath series , cooling circulator series , constant speed stirrer , water circulation vacuum pumps , lab consumables and other products which are widely used in pharmaceuticals , chemicals , biological pharmacy , new materials , noble metals and other files , meanwhile , we can provide relevant industry with design , manufacturing , equipment selection instrument supporting , installation , debugging . maintenance and other services etc.

Explosion Proof Jacketed Glass Reactor 50L Double Glass Stirred Tank 3



Our services

1. The period, scope and condition of the warranty.

(1)We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing&quality problem, we offer replacement, maintenance service.
(2)The damage caused by the transportation problem shall be borne by the seller.

2. How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better. we will find the
problem and tell you how to solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.

3.How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.

4. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized services.
