MOQ: | 1 set |
Price: | Negotiable |
Standard Packaging: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
Delivery Period: | within 5days after payemnt received |
Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Capacity: | 500 sets/momth |

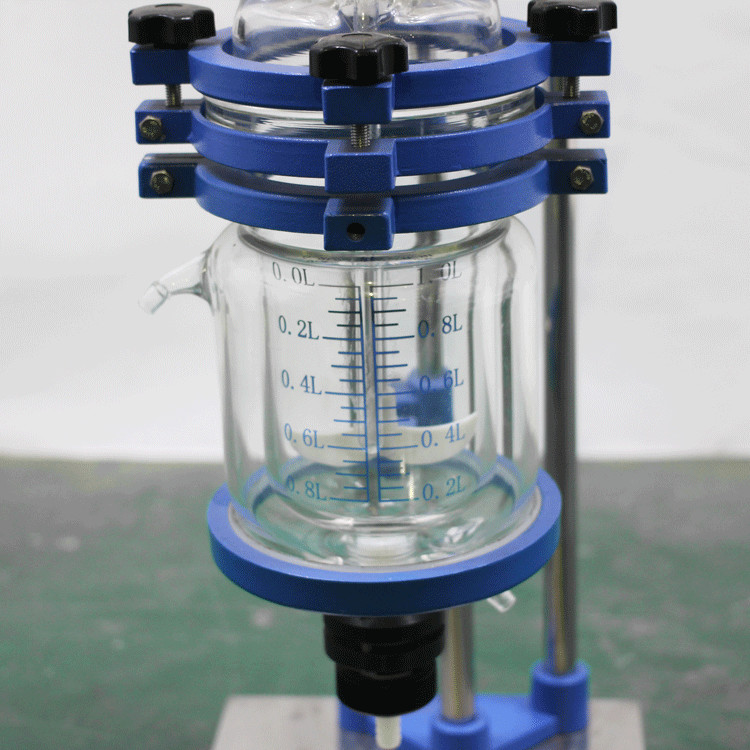

Double-layer glass reactor vessel is made according to customers actual requirements and new standards. It absorbs the advantages of similar products at home and broad, and also makes a bold innovation. At the same time, the products have the characteristics: easy to use(one person moving, operating, cleaning, installing, unloading); novel and practical structure; beautiful appearance; leading domestic. It is an ideal instrument for modern chemistry, fine chemicals, bio-pharmaceuticals, new materials synthesis, test, and production.
Product Model | PGR-3 | PGR-5 | PGR-10 | PGR-30 | PGR-50 | PGR-100 | PGR-200 |
Volume(L) | 3 | 5 | 10 | 30 | 50 | 100 | 200 |
Neck No.on Cover | 4 | 5 | 6 | 6 | 6 | 6 | 6 |
External Diameter of Inner Vessel(mm) | 150 | 180 | 230 | 330 | 365 | 460 | 600 |
External Diameter of Outer Vessel(mm) | 200 | 230 | 290 | 365 | 410 | 500 | 650 |
Cover Diameter(mm) | 150 | 180 | 265 | 265 | 265 | 340 | 340 |
Vessel Height(mm) | 300 | 400 | 450 | 730 | 850 | 950 | 1200 |
Motor Power(W) | 40 | 60 | 140 | 140 | 140 | 250 | 750 |
Vacuum Degree(Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
Rotation Speed(rpm) | 50-1400 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
Torque(Nm) | 0.27 | 0.95 | 2.23 | 2.23 | 2.23 | 3.98 | 6.37 |
Power(V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
Dimension(mm) | 320*350*900 | 450*450*1200 | 650*650*1900 | 700*500*2100 | 800*600*2300 | 1000*700*2700 | 1200*900*3200 |
Customizable
1. Enable react under normal temperature, tap water connected can take away the reaction heat quickly.
2. Be able to work under normal and negative pressure, negative pressure up to -0.098MPa.
3. Main body is made from stainless steel, which is anti-corrosion.
4. Discharge outlet has flange mouth and PTFE valve, there has no dead angle in vessel, detachable and convenient for solid material to discharge.
5. Constant rotate speed, no electric brush, no spark, safe and stable, enable continuous working.
The damage caused by the transportation problem shall be born by the seller.
We are experienced in the whole packing and shipping process, and we will be responsible for any damage made during shipping and sending clients replacements for free.
We have good cooperation with many international express companies, such as DHL/ UPS/ FedEx/ TNT and other, as well as large shipping companies providing air shipping and sea shipping.
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument. Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.
We are located in Nantong City, with convenient transportation access. 2 hours away drives from Shanghai. Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.
1. The period, scope and condition of the warranty.
(1)We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing&quality problem, we offer replacement, maintenance service.
(2)The damage caused by the transportation problem shall be borne by the seller.
2.Could you do customized for us?
We are a manufacturer that can provide all kinds of customized service.
3.How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
