Ultrasonic High Pressure Glass Reactor High Precision Temperature Measuring Tool

Ultrasonic High Pressure Glass Reactor High Precision Temperature Measuring Tool

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets/momth
Detail Information
Place of Origin
CHINA
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
FPGR-50
Glass Material:
Borosilicate Glass 3.3
Dimension(l*w*h):
Ordered Equipment
Automatic Grade:
Semi-Automatic
Voltage:
Customizable As Clients' Region
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Application:
Lab Stirring, Distillation
Type:
Reaction Kettle
Warranty:
12 Months
Feature:
Customized
High Light:

jacketed glass vessel

,

double layer glass reactor

,

moveable design lab glass reactor

Product Description

Glass Reactor Laboratory

General of Ultrasonic continuous glass reactor on powder material in liquid phase of crushed,and dispersed, and mixed are used of is mechanical mixing, its processing time and process will very long, especially for diameter is less than 10um of solid particles in liquid in the of dispersed, for solid particles in mixing process ,in the of mixed rate and the quality transfer rate are has been reached limit value and into constants, at even again increased mixing of speed, its reaction also not has improved. Ultrasonic reactor is the use of ultrasonic dispersion, grinding, activation, such as multiple effects, which can damage the solvent structure and improve reactivity, dispersing, grinding particle,so that its diameter to decrease further.

Main features

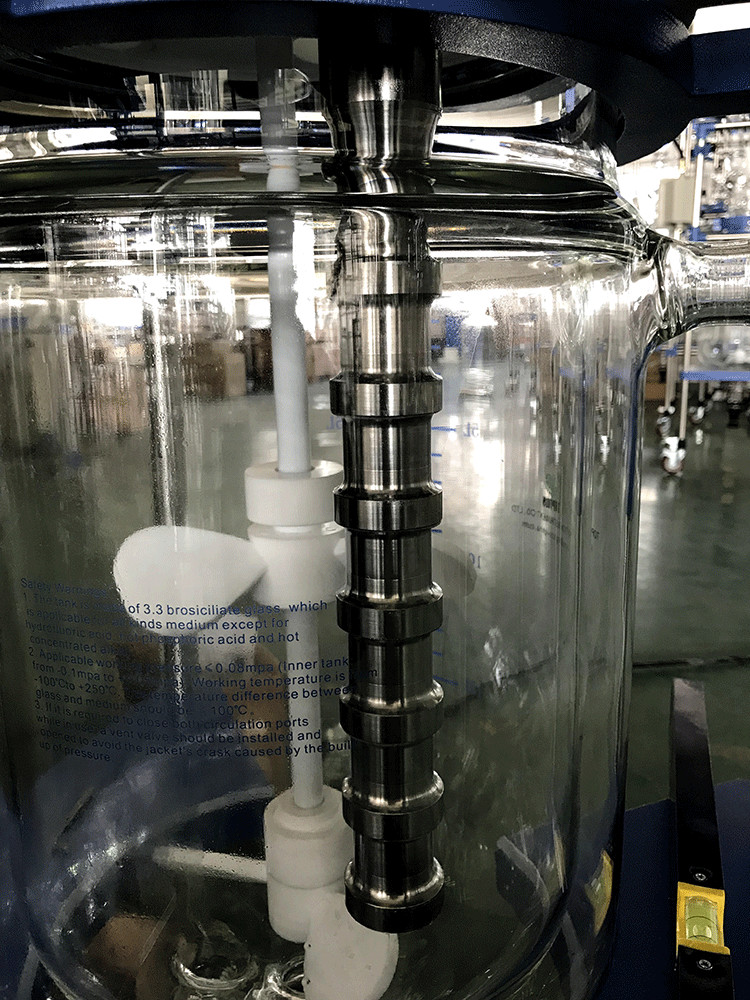

Machine has a 304 stainless steel frame and moveable design. There are at least 5 preformed holes on the lid, which can help processing of liquid recycling, flowing in, temperature measuring, liquid adding, etc.

Main reactor body is made by G3.3 borosilicate glass. It can support chemical reaction temperature from -120 to 300 centigrade.

Glass reactor can work under vacuum and constant pressure. In quiescent state, vacuum rate of its inner space can reach -0.098MPa.

Stirring hole of the lid will be sealed by alloy steel mechanical sealing part. Connector is adopted PTFE material. Both of them will guarantee the vacuum rate of reactor inside space.

PT100 temperature sensor, which is a high precision temperature measuring tool.

Customized




Product Model

Volume(L)

Neck No.on Cover

External
Diameter of
inner Vessel(mm)

External
Diameter of
outer Vessel(mm)

Cover Diameter

Vessel Height(mm)

Motor Power(w)

Vacuum Degree(Mpa)

Rotation
Speed(rpm)

Torque(Nm)

Power(V)

Dimension(mm)
PGR-3
3
4
150
200
150
300
40
0.098
50-1400
0.27
220
320*350*900
PGR-10
10
6
230
265
450
140
0.098
50-600
2.23
220
650*650*1900
PGR-50
50
6
365
410
265
850
140
0.098
50-600
2.23
220
800*600*2300
PGR-100
100
6
460
500
340
950
250
0.098
50-600
3.98
220
1000*700*2700
PGR-200
200
6
600
650
340
1200
750
0.098
50-600
6.37
220
1200*900*3200

Ultrasonic High Pressure Glass Reactor  High Precision Temperature Measuring Tool 0

Packing and delivery

1.Export standard packing
2.Qualified wooden package and sufficient inner protection or as your requirement



Ultrasonic High Pressure Glass Reactor  High Precision Temperature Measuring Tool 1

Our factory

Nantong Sanjing Chemglass Co . Ltd is one of largest professional manufacturers of chemical glass equipments in China.The company specializes in design , production and manufacturing of biological and chemical testing instruments and pharmaceutical glass equipments .

Main products are : glass reactor series , rotary evaporator chemical glass pipes , glass condenser series , glass reaction devices series , bath pots series , heating circulator series , thermostatic bath series , cooling circulator series , constant speed stirrer , water circulation vacuum pumps , lab consumables and other products which are widely used in pharmaceuticals , chemicals , biological pharmacy , new materials , noble metals and other files , meanwhile .

Ultrasonic High Pressure Glass Reactor  High Precision Temperature Measuring Tool 2

Our service



Customized

1.How long is your delivery time?
Generally it is within 3 working days after receiving the payment if the goods are in stock. Otherwise, it is 5-10 working days.

2.Do you provide samples? Is it free?
Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we'll give you our best price including shipping cost.

3.Are you trading company or manufacturer?
We are professional manufacturer and we have our own factory.
