MOQ: | 1 set |
Price: | Negotiable |
Standard Packaging: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
Delivery Period: | within 5days after payemnt received |
Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Capacity: | 500 sets/momth |

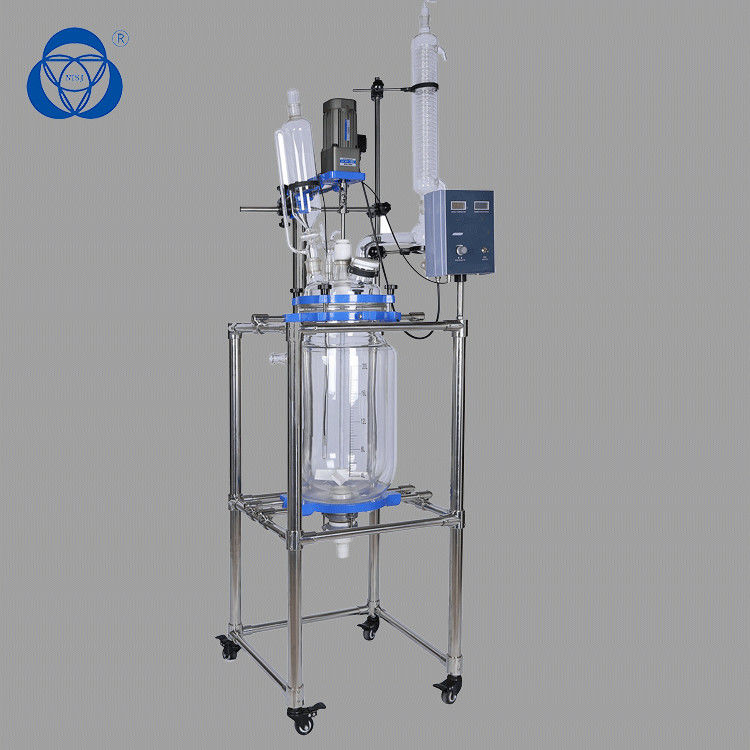

For laboratory research, double layer glass reactor is the idea reaction vessel to do new materials synthesis, mixing
homogeneous reaction, extraction and purification, distillation and samples purification.
Jacketed glass reactor is popular as physical or chemical reaction vessel,through reaction vessel structure design and
parameter configuration to achieve the process requirement of heating, evaporation, cooling and low-high-speed mixing
function.
Product Model | PGR-3 | PGR-5 | PGR-10 | PGR-30 | PGR-50 | PGR-100 | PGR-200 |
Volume(L) | 3 | 5 | 10 | 30 | 50 | 100 | 200 |
Neck No.on Cover | 4 | 5 | 6 | 6 | 6 | 6 | 6 |
External Diameter of Inner Vessel(mm) | 150 | 180 | 230 | 330 | 365 | 460 | 600 |
External Diameter of Outer Vessel(mm) | 200 | 230 | 290 | 365 | 410 | 500 | 650 |
Cover Diameter(mm) | 150 | 180 | 265 | 265 | 265 | 340 | 340 |
Vessel Height(mm) | 300 | 400 | 450 | 730 | 850 | 950 | 1200 |
Motor Power(W) | 40 | 60 | 140 | 140 | 140 | 250 | 750 |
Vacuum Degree(Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
Rotation Speed(rpm) | 50-1400 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
Torque(Nm) | 0.27 | 0.95 | 2.23 | 2.23 | 2.23 | 3.98 | 6.37 |
Power(V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
Dimension(mm) | 320*350*900 | 450*450*1200 | 650*650*1900 | 700*500*2100 | 800*600*2300 | 1000*700*2700 | 1200*900*3200 |
Customizable
Be able to work under normal and negative pressure, negative pressure up to -0.098MPa.
Main body is made from stainless steel, which is anti-corrosion.
Enable react under normal temperature, tap water connected can take away the reaction heat quickly.
Discharge outlet has flange mouth and PTFE valve, there has no dead angle in vessel, detachable and convenient for solid material to discharge.
Constant rotate speed, no electric brush, no spark, safe and stable, enable continuous working.
We are located in Nantong City, with convenient transportation access. 2 hours away drives from Shanghai. Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.
Advantage of us is customize according to client need. We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, new material, noble material.
We are experienced in the whole packing and shipping process, and we will be responsible for any damage made during shipping and sending clients replacements for free.
We have good cooperation with many international express companies, such as DHL/ UPS/ FedEx/ TNT and other, as well as large shipping companies providing air shipping and sea shipping.
Customizable
Pre-Sales Service
1.Provide free technical advice.
2.Design proposals can be issued according to customer requirements.3.The seller can provide detailed equipment parameters and
configuration list.
After-Sales Service
1.The warranty period of the company's products is 12 months from the date of acceptance of the equipment (excluding glass fitings andconsumables);
2.If there are quality problems in the parts during the warranty period,the seller can provide free replacement of malfunction components;if the damage is due to human factors, when the parts need to bereplaced, the seller will provide the accessories and charge themaintenance cost according to the price.
3.For on-site installation and commissioning, additional charges will apply.
