Semi Automatic Reaction Kettle Glass Reactor Pharmaceutical Industrial Grade

Semi Automatic Reaction Kettle Glass Reactor Pharmaceutical Industrial Grade

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets/momth
Detail Information
Place of Origin
CHINA
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
FPGR-10
Condition:
New
Vacuum Degree:
-0.098mpa
Warranty:
12 Months
Certification:
CE,ISO9001
Application:
New Material Synthesis
Type:
Reaction Kettle
After-sales Service Provided:
Video Technical Support,Field Maintenance And Repair Service
High Light:

jacketed glass vessel

,

double layer glass reactor

,

industrial grade glass reactor vessel

Product Description

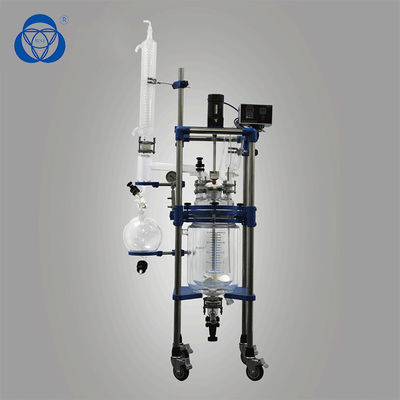

Glass Reactor

The glass reactor systems are the essential equipment for mixing, reaction, distillation and filtration in chemistry and pharmaceutical industries.

We offer a wide range of glass reactors with volumes from 250mL to 250L. They are electrical or air-driven, desktop or floor-stand, with or without filter base.

All the glass reactor systems can be modified in our own factory quickly (dimension, motor power, explosion proof, additional glassware, customize port size, etc).



Product Model PGR-3 PGR-5 PGR-10 PGR-30 PGR-50 PGR-100 PGR-200
Volume(L) 3 5 10 30 50 100 200
Neck No.on Cover 4 5 6 6 6 6 6
External Diameter of Inner Vessel(mm) 150 180 230 330 365 460 600
External Diameter of Outer Vessel(mm) 200 230 290 365 410 500 650
Cover Diameter(mm) 150 180 265 265 265 340 340
Vessel Height(mm) 300 400 450 730 850 950 1200
Motor Power(W) 40 60 140 140 140 250 750
Vacuum Degree(Mpa) 0.098 0.098 0.098 0.098 0.098 0.098 0.098
Rotation Speed(rpm) 50-1400 50-600 50-600 50-600 50-600 50-600 50-600
Torque(Nm) 0.27 0.95 2.23 2.23 2.23 3.98 6.37
Power(V) 220 220 220 220 220 220 220
Dimension(mm) 320*350*900 450*450*1200 650*650*1900 700*500*2100 800*600*2300 1000*700*2700 1200*900*3200



Main features

Customizable

① Full set of glass part is produced by G3.3 borosilicate glass, owning excellent chemical and physical properties.

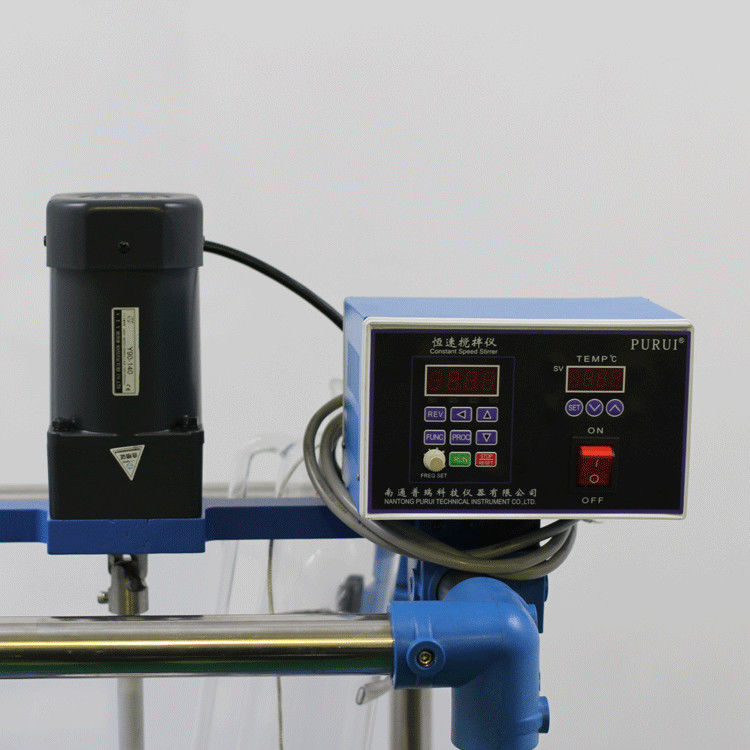

② Alternating current dynamo conducts frequency control stirring, reliable operation, large moment of force and no spark.


③ Enable react under normal temperature, tap water connected can take away the reaction heat quickly.


④  Be able to work under normal and negative pressure, negative pressure up to -0.098MPa.



⑤ Constant rotate speed, no electric brush, no spark, safe and stable, enable continuous working.
⑥ Main body is made from stainless steel, which is anti-corrosion.
⑦ Discharge outlet has flange mouth and PTFE valve, there has no dead angle in vessel, detachable and convenient for solid material to discharge.



Semi Automatic Reaction Kettle Glass Reactor Pharmaceutical Industrial Grade 0

Product Details

Semi Automatic Reaction Kettle Glass Reactor Pharmaceutical Industrial Grade 1



Packing and delivery

Packaging


-Glass parts will be wrapped with foam and carton, the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.


Shipping


-By International Express such as DHL, UPS, TNT, EMS and so on.Besides, you can choose to use your own shipping agent.



Semi Automatic Reaction Kettle Glass Reactor Pharmaceutical Industrial Grade 2

Our factory

Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument. Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.

Advantage of us is customize according to client need. We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, new material, noble material.

We are located in Nantong City, with convenient transportation access. 2 hours away drives from Shanghai. Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.

Semi Automatic Reaction Kettle Glass Reactor Pharmaceutical Industrial Grade 3

Our services

1. The period, scope and condition of the warranty.
(1)We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing&quality problem, we offer replacement, maintenance service.
(2)The damage caused by the transportation problem shall be borne by the seller.
2. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized service.

3. How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
