| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
| Delivery Period: | within 5days after payemnt received |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, |
| Supply Capacity: | 500 sets/momth |

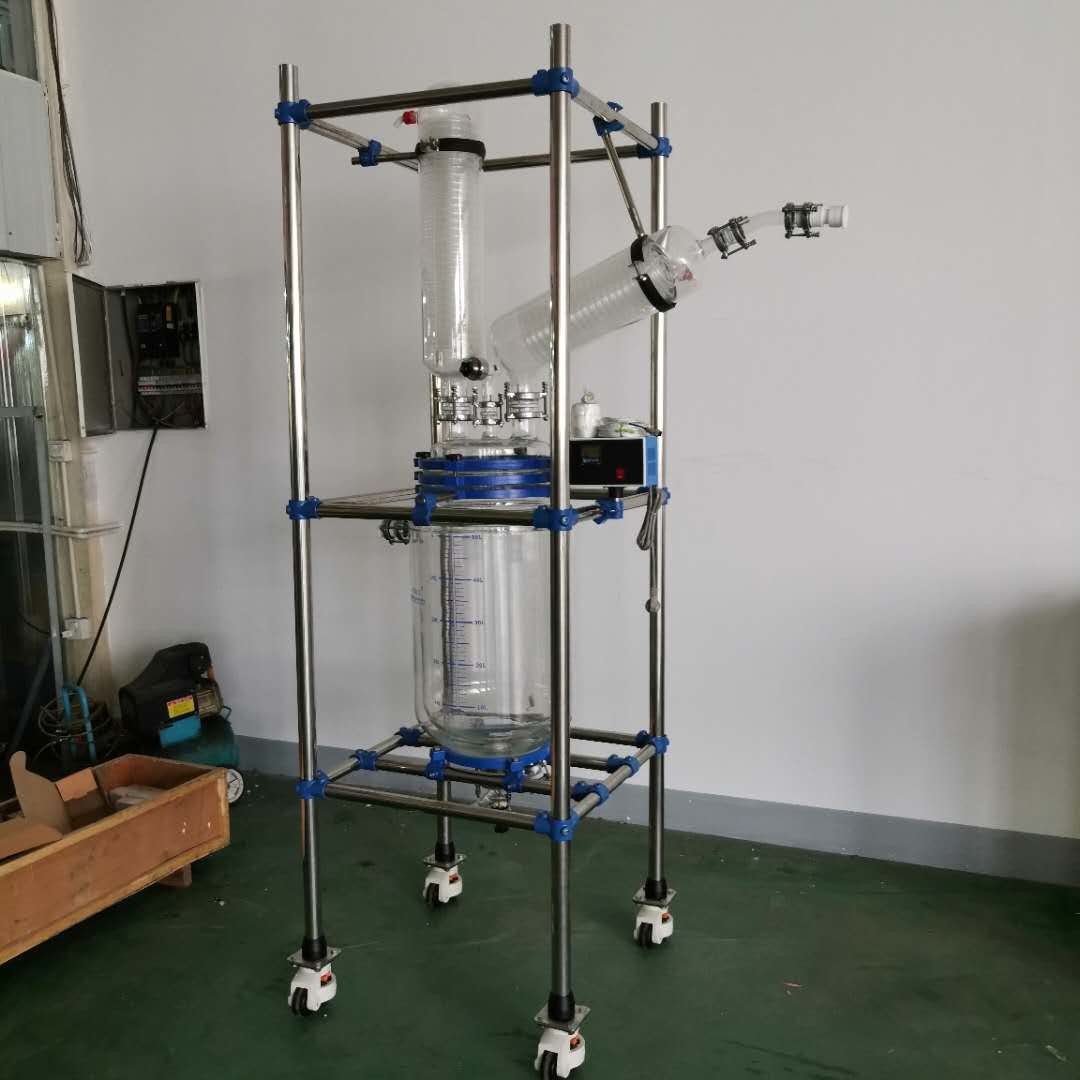

The glass reactor systems are essential equipment for mixing, reaction, distillation, and filtration in chemistry and pharmaceutical industries. We offer a wide range of glass reactors with volumes from 250mL to 250L, available in electrical or air-driven configurations, desktop or floor-stand models, with or without filter base.
All glass reactor systems can be modified in our factory quickly, including dimensions, motor power, explosion-proof features, additional glassware, and custom port sizes.
| Product Model | PGR-3 | PGR-5 | PGR-10 | PGR-30 | PGR-50 | PGR-100 | PGR-200 |
|---|---|---|---|---|---|---|---|
| Volume (L) | 3 | 5 | 10 | 30 | 50 | 100 | 200 |
| Neck No. on Cover | 4 | 5 | 6 | 6 | 6 | 6 | 6 |
| External Diameter of Inner Vessel (mm) | 150 | 180 | 230 | 330 | 365 | 460 | 600 |
| External Diameter of Outer Vessel (mm) | 200 | 230 | 290 | 365 | 410 | 500 | 650 |
| Cover Diameter (mm) | 150 | 180 | 265 | 265 | 265 | 340 | 340 |
| Vessel Height (mm) | 300 | 400 | 450 | 730 | 850 | 950 | 1200 |
| Motor Power (W) | 40 | 60 | 140 | 140 | 140 | 250 | 750 |
| Vacuum Degree (Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
| Rotation Speed (rpm) | 50-1400 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
| Torque (Nm) | 0.27 | 0.95 | 2.23 | 2.23 | 2.23 | 3.98 | 6.37 |
| Power (V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Dimension (mm) | 320×350×900 | 450×450×1200 | 650×650×1900 | 700×500×2100 | 800×600×2300 | 1000×700×2700 | 1200×900×3200 |
Packaging:
Shipping:
Available via International Express services including DHL, UPS, TNT, EMS, and others. Customers may also choose to use their own shipping agent.
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specializing in research, development, and production of chemical glass instruments. Our main products include glass reactors, wiped film evaporators, rotary evaporators, short-path molecular distillation devices, and chemical glass tubes.
Our advantage lies in customizing according to client needs. We provide relevant industries with design, manufacturing, equipment selection, instrument supporting, installation, debugging, and maintenance services. Our chemical glass instruments are widely used in pharmaceuticals, chemicals, biological pharmacy, new materials, and noble materials.
Located in Nantong City with convenient transportation access (2 hours from Shanghai), we cover an area of sixteen thousand square meters with over one hundred employees and annual sales exceeding twenty million US dollars.
|
|
