| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
| Delivery Period: | within 5days after payemnt received |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, |
| Supply Capacity: | 500 sets/momth |
| Product Model | PGR-3 | PGR-5 | PGR-10 | PGR-30 | PGR-50 | PGR-100 | PGR-200 |
|---|---|---|---|---|---|---|---|
| Volume (L) | 3 | 5 | 10 | 30 | 50 | 100 | 200 |
| Neck No. on Cover | 4 | 5 | 6 | 6 | 6 | 6 | 6 |
| External Diameter of Inner Vessel (mm) | 150 | 180 | 230 | 330 | 365 | 460 | 600 |
| External Diameter of Outer Vessel (mm) | 200 | 230 | 290 | 365 | 410 | 500 | 650 |
| Cover Diameter (mm) | 150 | 180 | 265 | 265 | 265 | 340 | 340 |
| Vessel Height (mm) | 300 | 400 | 450 | 730 | 850 | 950 | 1200 |
| Motor Power (W) | 40 | 60 | 140 | 140 | 140 | 250 | 750 |
| Vacuum Degree (Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
| Rotation Speed (rpm) | 50-1400 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
| Torque (Nm) | 0.27 | 0.95 | 2.23 | 2.23 | 2.23 | 3.98 | 6.37 |
| Power (V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Dimension (mm) | 320*350*900 | 450*450*1200 | 650*650*1900 | 700*500*2100 | 800*600*2300 | 1000*700*2700 | 1200*900*3200 |

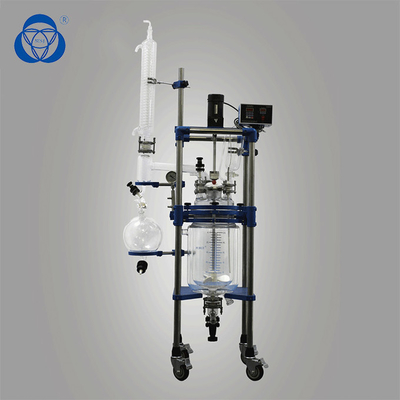

Glass reactor systems are essential equipment for mixing, reaction, distillation and filtration in chemistry and pharmaceutical industries.
We offer a wide range of glass reactors with volumes from 250mL to 250L. They are electrical or air-driven, desktop or floor-stand, with or without filter base.
All glass reactor systems can be modified in our factory quickly (dimension, motor power, explosion proof, additional glassware, custom port size, etc).
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instruments. Main products include glass reactors, wiped film evaporators, rotary evaporators, short-path molecular distillation devices and chemical glass tubes.
Our advantage is customization according to client needs. We provide relevant industries with design, manufacturing, equipment selection, instrument supporting, installation, debugging, and maintenance services. Our chemical glass instruments have been widely used in pharmaceuticals, chemicals, biological pharmacy, new materials, and noble materials.
We are located in Nantong City with convenient transportation access, just 2 hours from Shanghai. Covering an area of sixteen thousand square meters, we have over one hundred employees and boast annual sales exceeding twenty million US dollars.
We are a manufacturer that can provide all kinds of customized services to meet your specific requirements.
We select suitable shipping methods based on actual situation. Small parts are shipped by Express service for timely delivery.
|
|
