| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
| Delivery Period: | within 5days after payemnt received |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 500 sets/momth |

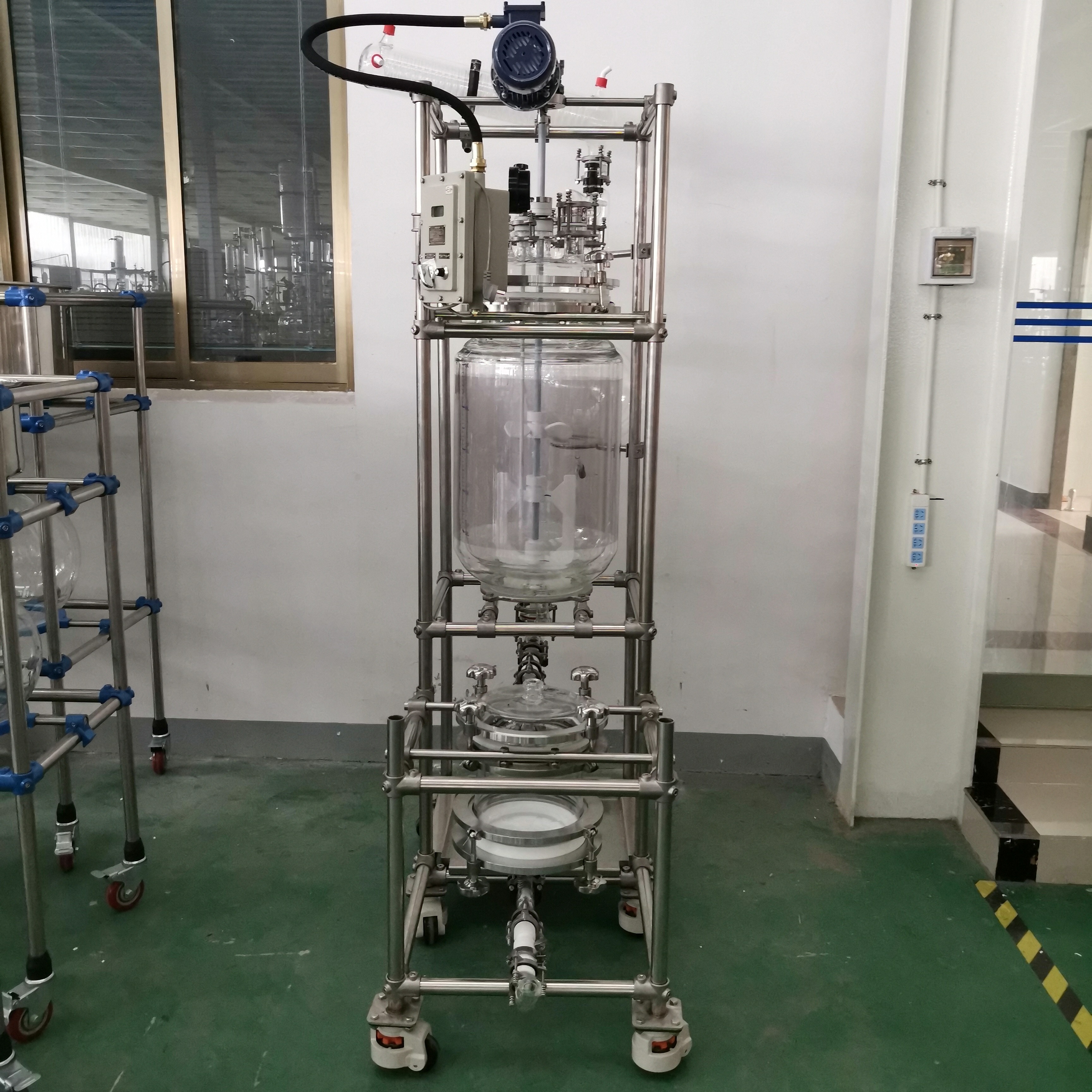

New Material Synthesis CSTR Continuous Stirred Tank Reactor 10L Glass Reactor
Main features Of 10L Glass Reactor
Customizable
① Full set of glass part is produced by G3.3 borosilicate glass, owning excellent chemical and physical properties.
② Alternating current dynamo conducts frequency control stirring, reliable operation, large moment of force and no spark.
③ Enable react under normal temperature, tap water connected can take away the reaction heat quickly.
④ Be able to work under normal and negative pressure, negative pressure up to -0.098MPa.
⑤ Constant rotate speed, no electric brush, no spark, safe and stable, enable continuous working.
⑥ Main body is made from stainless steel, which is anti-corrosion.
⑦ Discharge outlet has flange mouth and PTFE valve, there has no dead angle in vessel, detachable and convenient for solid material to discharge.
Specification Of 10L Glass Reactor
|
Product Model |
PGR-3 |
PGR-5 |
PGR-10 |
PGR-30 |
PGR-50 |
PGR-100 |
PGR-200 |
|
Volume(L) |
3 |
5 |
10 |
30 |
50 |
100 |
200 |
|
Neck No.on Cover |
4 |
5 |
6 |
6 |
6 |
6 |
6 |
|
External Diameter of Inner Vessel(mm) |
150 |
180 |
230 |
330 |
365 |
460 |
600 |
|
External Diameter of Outer Vessel(mm) |
200 |
230 |
290 |
365 |
410 |
500 |
650 |
|
Cover Diameter(mm) |
150 |
180 |
265 |
265 |
265 |
340 |
340 |
|
Vessel Height(mm) |
300 |
400 |
450 |
730 |
850 |
950 |
1200 |
|
Motor Power(W) |
40 |
60 |
140 |
140 |
140 |
250 |
750 |
|
Vacuum Degree(Mpa) |
0.098 |
0.098 |
0.098 |
0.098 |
0.098 |
0.098 |
0.098 |
|
Rotation Speed(rpm) |
50-1400 |
50-600 |
50-600 |
50-600 |
50-600 |
50-600 |
50-600 |
|
Torque(Nm) |
0.27 |
0.95 |
2.23 |
2.23 |
2.23 |
3.98 |
6.37 |
|
Power(V) |
220 |
220 |
220 |
220 |
220 |
220 |
220 |
|
Dimension(mm) |
320*350*900 |
450*450*1200 |
650*650*1900 |
700*500*2100 |
800*600*2300 |
1000*700*2700 |
1200*900*3200 |
The glass reactor systems are the essential equipment for mixing, reaction, distillation and filtration in chemistry and pharmaceutical industries.
We offer a wide range of glass reactors with volumes from 250mL to 250L. They are electrical or air-driven, desktop or floor-stand, with or without filter base.
All the glass reactor systems can be modified in our own factory quickly (dimension, motor power, explosion proof, additional glassware, customize port size, etc).
Product Details Of 10L Glass Reactor
Packing And Delivery
Packaging
-Glass parts will be wrapped with foam and carton, the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping
-By International Express such as DHL, UPS, TNT, EMS and so on.Besides, you can choose to use your own shipping agent.
Our Factory
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument. Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.
Advantage of us is customize according to client need. We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, new material, noble material.
We are located in Nantong City, with convenient transportation access. 2 hours away drives from Shanghai. Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.
Our Services
1. The period, scope and condition of the warranty.
(1)We offer 1 years warranty on the date of shipping from China. During the warranty time, because of manufacturing&quality problem, we offer replacement, maintenance service.
(2)The damage caused by the transportation problem shall be borne by the seller.
2. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized service.
3. How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
Video
Video
Video
|
|
