| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
| Delivery Period: | within 5days after payemnt received |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, |
| Supply Capacity: | 500 sets/momth |

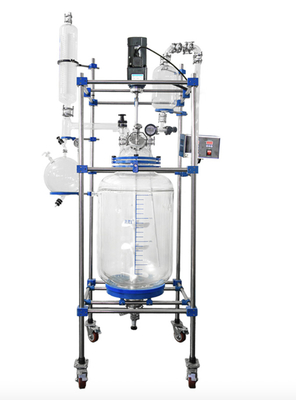

This glass reactor features a double glass design where the inner layer contains the reaction solvent for mixing reactions, while the outer layer accommodates various hot and cold sources (frozen liquid, hot oil) for circulating cooling or heating reactions. Under constant temperature conditions, mixing reactions can be conducted within the sealed glass reactor under atmospheric pressure or negative pressure conditions, with capabilities for dripping, reflux, distillation, and stirring operations.
| Product Model | FPGR-50 | FPGR-80 | FPGR-100 | FPGR-150 | FPGR-200 |
|---|---|---|---|---|---|
| Volume (L) | 50 | 80 | 100 | 150 | 200 |
| Neck No. on Cover | 6 | 6 | 6 | 6 | 6 |
| External Diameter of Inner Vessel (mm) | 365 | 410 | 460 | 550 | 600 |
| External Diameter of Outer Vessel (mm) | 410 | 460 | 500 | 600 | 650 |
| Cover Diameter (mm) | 265 | 340 | 340 | 340 | 340 |
| Vessel Height (mm) | 850 | 950 | 950 | 980 | 1200 |
| Motor Power (W) | 180 | 370 | 370 | 750 | 750 |
| Vacuum Degree (Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
| Rotation Speed (rpm) | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
| Torque (Nm) | 2.86 | 5.89 | 5.89 | 11.9 | 11.9 |
| Power (V) | 220 | 220 | 220 | 220 | 220 |
| Dimension (mm) | 700*500*2300 | 1000*700*2500 | 1000*700*2700 | 1200*900*3000 | 1200*900*3200 |
Glass parts are wrapped with foam and placed in cartons, while the main body portion is packed in wooden cases. Both neutral and customized packaging options are available. Customers may also choose to use their own shipping agent.
Nantong Sanjing Chemglass Co. Ltd is one of the largest professional manufacturers of chemical glass equipment in China. The company specializes in the design, production, and manufacturing of biological and chemical testing instruments and pharmaceutical glass equipment. Main products include: glass reactor series, rotary evaporator chemical glass pipes, glass condenser series, glass reaction devices series, bath pots series, heating circulator series, thermostatic bath series, cooling circulator series, constant speed stirrer, water circulation vacuum pumps, lab consumables, and other related products.
