| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
| Delivery Period: | within 5days after payemnt received |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, |
| Supply Capacity: | 500 sets/momth |

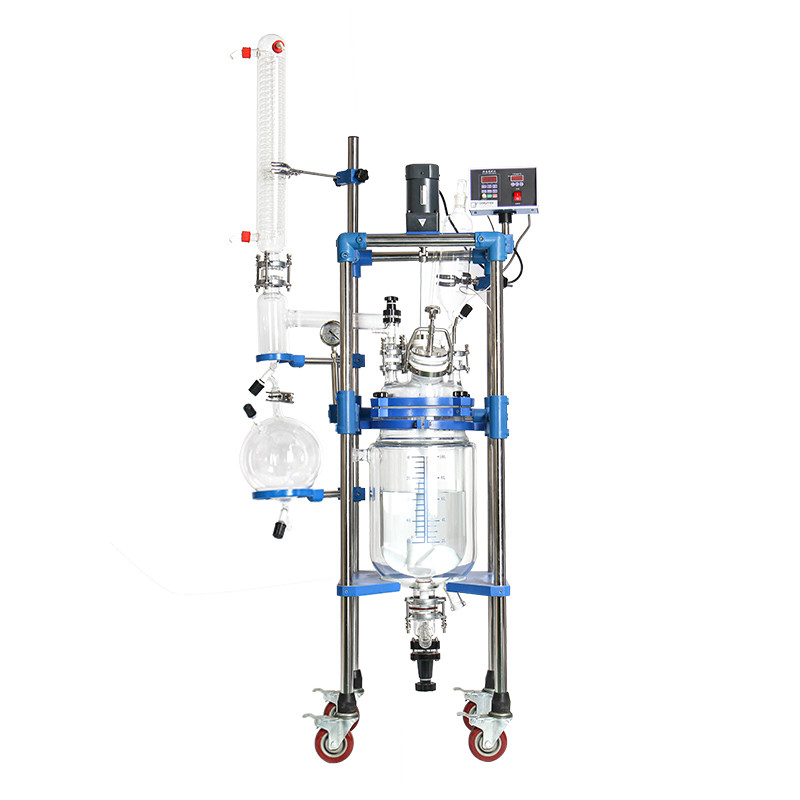

High pressure reactor autoclave's reaction flask volume is 20L, interlayer volume is 8L, stirring diameter of axle is 12mm, power of stirring is 90W. Double-layer glass reactor is an innovative product that combines advantages of domestic and foreign similar products. It features double-layer glass design, allowing reaction solvent in the internal layer for stirring reaction, while connecting different cold and heat sources (refrigerating fluid, hot water or hot oil) to the interlayer for cyclic heating or cooling reaction.
Under set constant temperature conditions, you can conduct stirring reaction under normal or negative pressure in airtight glass reactor, as well as conducting backflow and distillation of reaction solution. The double-layer glass reactor is an ideal pilot test and production equipment for modern fine chemical engineering, biological pharmacy and new material synthesis.

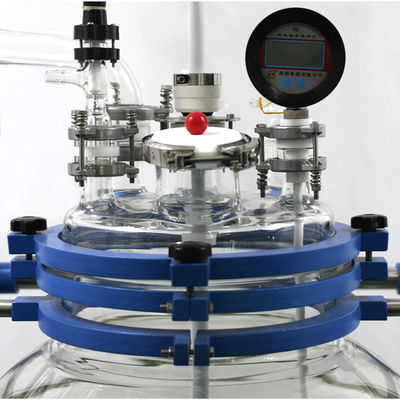

This glass reactor series mainly contains following components: double-layer glass reaction kettle, component cover of glass reactor, condenser, constant voltage funnel, frequency conversion controller, rotate stirring and sealing system, stainless steel frame system, etc.
| Product Model | PGR-3 | PGR-5 | PGR-10 | PGR-30 | PGR-50 | PGR-100 | PGR-200 |
|---|---|---|---|---|---|---|---|
| Volume (L) | 3 | 5 | 10 | 30 | 50 | 100 | 200 |
| Neck No. on Cover | 4 | 5 | 6 | 6 | 6 | 6 | 6 |
| External Diameter of Inner Vessel (mm) | 150 | 180 | 230 | 330 | 365 | 460 | 600 |
| External Diameter of Outer Vessel (mm) | 200 | 230 | 290 | 365 | 410 | 500 | 650 |
| Cover Diameter (mm) | 150 | 180 | 265 | 265 | 265 | 340 | 340 |
| Vessel Height (mm) | 300 | 400 | 450 | 730 | 850 | 950 | 1200 |
| Motor Power (W) | 40 | 60 | 140 | 140 | 140 | 250 | 750 |
| Vacuum Degree (Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
| Rotation Speed (rpm) | 50-1400 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
| Torque (Nm) | 0.27 | 0.95 | 2.23 | 2.23 | 2.23 | 3.98 | 6.37 |
| Power (V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Dimension (mm) | 320*350*900 | 450*450*1200 | 650*650*1900 | 700*500*2100 | 800*600*2300 | 1000*700*2700 | 1200*900*3200 |
The glass reactor systems are essential equipment for mixing, reaction, distillation and filtration in chemistry and pharmaceutical industries.
We offer a wide range of glass reactors with volumes from 250mL to 250L. They are electrical or air-driven, desktop or floor-stand, with or without filter base.
All glass reactor systems can be modified in our factory quickly (dimension, motor power, explosion proof, additional glassware, customize port size, etc).
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instruments. Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.
Our advantage is customization according to client needs. We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, and maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, new material, and noble material.
We are located in Nantong City, with convenient transportation access - just 2 hours drive from Shanghai. Covering an area of sixteen thousand square meters, we have over one hundred employees and boast an annual sales figure that exceeds twenty million US dollars.
Could you do customized for us?
We are a manufacturer that can provide all kinds of customized services.
How to ship replacement parts?
We will choose suitable shipping methods according to the actual situation. For small parts, we ship by Express.
|
|
