| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
| Delivery Period: | within 5days after payemnt received |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, |
| Supply Capacity: | 500 sets/momth |

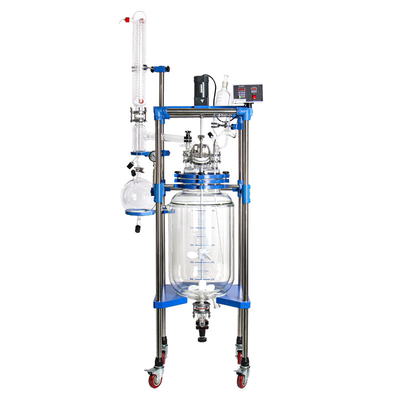

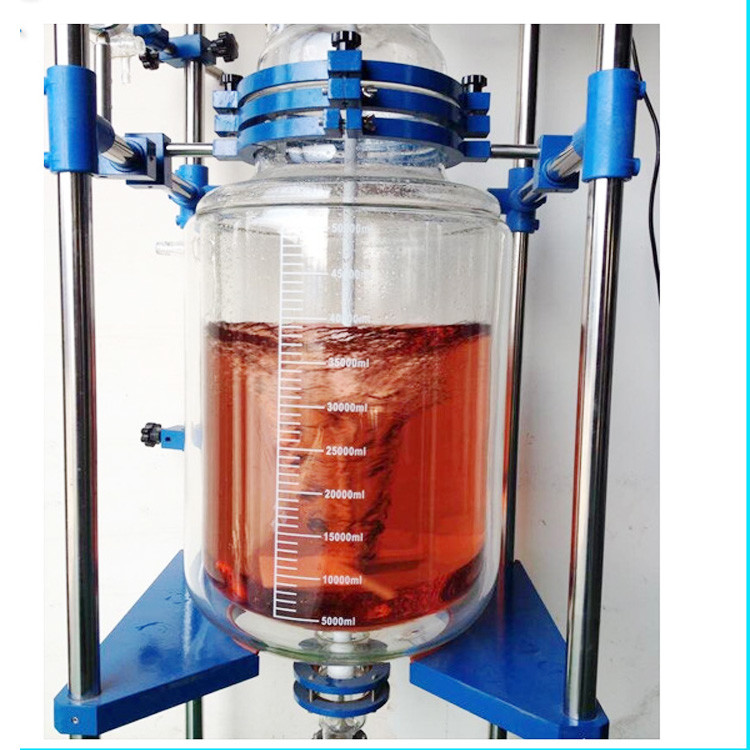

Our 100L jacketed glass reactor is designed for laboratory chemical applications, offering exceptional performance and durability for demanding industrial processes.
| Product Model | PGR-3 | PGR-5 | PGR-10 | PGR-30 | PGR-50 | PGR-100 | PGR-200 |
|---|---|---|---|---|---|---|---|
| Volume (L) | 3 | 5 | 10 | 30 | 50 | 100 | 200 |
| Neck No. on Cover | 4 | 5 | 6 | 6 | 6 | 6 | 6 |
| External Diameter of Inner Vessel (mm) | 150 | 180 | 230 | 330 | 365 | 460 | 600 |
| External Diameter of Outer Vessel (mm) | 200 | 230 | 290 | 365 | 410 | 500 | 650 |
| Cover Diameter (mm) | 150 | 180 | 265 | 265 | 265 | 340 | 340 |
| Vessel Height (mm) | 300 | 400 | 450 | 730 | 850 | 950 | 1200 |
| Motor Power (W) | 40 | 60 | 140 | 140 | 140 | 250 | 750 |
| Vacuum Degree (Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
| Rotation Speed (rpm) | 50-1400 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
| Torque (Nm) | 0.27 | 0.95 | 2.23 | 2.23 | 2.23 | 3.98 | 6.37 |
| Power (V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Dimension (mm) | 320*350*900 | 450*450*1200 | 650*650*1900 | 700*500*2100 | 800*600*2300 | 1000*700*2700 | 1200*900*3200 |
Glass reactor systems are essential equipment for mixing, reaction, distillation and filtration in chemistry and pharmaceutical industries.
We offer a wide range of glass reactors with volumes from 250mL to 250L. They are electrical or air-driven, desktop or floor-stand, with or without filter base.
All glass reactor systems can be modified in our own factory quickly (dimension, motor power, explosion proof, additional glassware, customize port size, etc).
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instruments. Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.
Our advantage is customizing according to client needs. We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, and maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, new material, and noble material.
We are located in Nantong City, with convenient transportation access - just 2 hours drive from Shanghai. Covering an area of sixteen thousand square meters, we have over one hundred employees and boast an annual sales figure that exceeds US dollars twenty million.
|
|
