Semi-Automatic Glass Jacketed Laboratory Reactor with 10L-200L Volume and Double Jacket Design

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union,
Supply Capacity: 500 sets/momth
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
PGR-10-PGR-200
Warranty:
1 Year
Volume:
10L-200L
Automatic Grade:
Semi-Automatic
Certification:
CE,ISO9001
Condition:
New
Type:
Laboratory Glass Reactor
After-sales Service Provided:
Video Technical Support,Field Maintenance And Repair Service
Application:
Chemistry And Pharmaceutical Industries
Feature:
Double Jacket
Highlight:

50L Glass Lab Jacketed Reactor

,

Glass Jacketed Laboratory Reactor

,

100L Glass Lab Reactor

Product Description

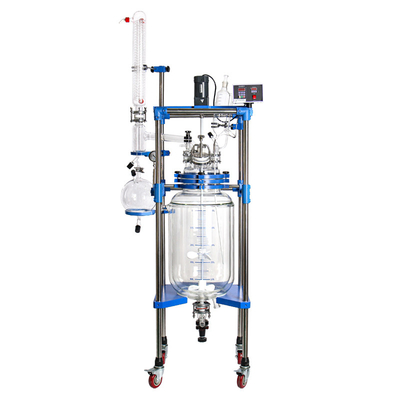

Customization Glass Jacketed Laboratory Reactor 1-100L Semi-Automatic
1-100L Big New Glass Jacketed Laboratory Reactor Vessel
High vacuum reactor autoclave with 10L reaction flask volume, 8L interlayer volume, 12mm stirring diameter, and 90W stirring power. The double-layer glass reactor combines domestic and international product advantages, featuring a double-layer glass design that allows reaction solvents in the internal layer for stirring reactions. Connect different cold and heat sources (refrigerating fluid, hot water, or hot oil) to the interlayer for cyclic heating or cooling reactions.
Under set constant temperature conditions, you can conduct stirring reactions under normal or negative pressure in airtight glass reactors, as well as backflow and distillation of reaction solutions. This double-layer glass reactor is an ideal pilot test and production equipment for modern fine chemical engineering, biological pharmacy, and new material synthesis.
The glass reactor series mainly includes: double-layer glass reaction kettle, component cover set, condenser, constant voltage funnel, frequency conversion controller, rotating stirring and sealing system, and stainless steel frame system.
Product Model PGR-3 PGR-5 PGR-10 PGR-30 PGR-50 PGR-100 PGR-200
Volume (L) 3 5 10 30 50 100 200
Neck No. on Cover 4 5 6 6 6 6 6
External Diameter of Inner Vessel (mm) 150 180 230 330 365 460 600
External Diameter of Outer Vessel (mm) 200 230 290 365 410 500 650
Cover Diameter (mm) 150 180 265 265 265 340 340
Vessel Height (mm) 300 400 450 730 850 950 1200
Motor Power (W) 40 60 140 140 140 250 750
Vacuum Degree (Mpa) 0.098 0.098 0.098 0.098 0.098 0.098 0.098
Rotation Speed (rpm) 50-1400 50-600 50-600 50-600 50-600 50-600 50-600
Torque (Nm) 0.27 0.95 2.23 2.23 2.23 3.98 6.37
Power (V) 220 220 220 220 220 220 220
Dimension (mm) 320*350*900 450*450*1200 650*650*1900 700*500*2100 800*600*2300 1000*700*2700 1200*900*3200
Glass reactor systems are essential equipment for mixing, reaction, distillation, and filtration in chemistry and pharmaceutical industries.
We offer a wide range of glass reactors with volumes from 250mL to 250L. They are electrical or air-driven, desktop or floor-stand, with or without filter base.
All glass reactor systems can be modified in our factory (dimension, motor power, explosion proof, additional glassware, custom port size, etc).
Product Details
Glass Lined Chemical Reactor product details
Packing and Delivery
Packaging
  • Glass parts wrapped with foam and carton, main body portion packed in wooden cases
  • Both neutral and customized packaging available
Shipping
  • International Express services: DHL, UPS, TNT, EMS, etc.
  • Option to use your own shipping agent
Packing and shipping process
Our Factory
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development, and production of chemical glass instruments. Main products include glass reactors, wiped film evaporators, rotary evaporators, short-path molecular distillation devices, and chemical glass tubes.
Our advantage is customization according to client needs. We provide relevant industries with design, manufacturing, equipment selection, instrument supporting, installation, debugging, and maintenance. Our chemical glass instruments are widely used in pharmaceuticals, chemicals, biological pharmacy, new materials, and noble materials.
Located in Nantong City with convenient transportation access (2 hours from Shanghai). Covering 16,000 square meters with over 100 employees and annual sales exceeding $20 million USD.
Nantong Sanjing Chemglass factory facility
Our Service
Warranty Period, Scope and Conditions
  • 1-year warranty from shipping date from China
  • During warranty: replacement and maintenance service for manufacturing/quality issues
  • Transportation damage covered by seller
Customization Services
We are a manufacturer that provides all kinds of customized services to meet specific client requirements.
Replacement Parts Shipping
We select suitable shipping methods based on actual situations. Small parts are shipped by Express service.
