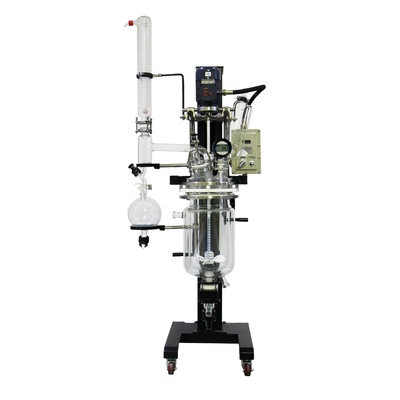

10L Capacity 600 Rpm/Min Stainless Steel Frame Jacketed Glass Reactor Chemglass Reaction Vessel

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union,
Supply Capacity: 500 sets/momth
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
FPGR-10
Product Name:
Chemglass Reaction Vessel
Capacity:
50L
Warranty:
12 Months
Stirring Speed(rpm):
50-600 Rpm/min
Application:
New Material Synthesis
Body Material:
Stainless Steel
Working Temperature:
-100-250
Feature:
Customizable
Highlight:

Lab Jacketed glass Reactor 10L

,

Chemglass Jacketed glass Reactor

,

600 Rpm/min Lab Jacketed glass Reactor

Product Description
Chemglass Lab Jacketed Glass Reactor 10L 600 Rpm/Min Stainless Steel
10L Chemglass Jacketed Reactor glass Chemglass Reaction Vessel
Product Features
  • Complete stainless steel frame structure with exquisite three-way and four-way connections - compact, firm, and easy to move
  • VFD (variable-frequency drive) motor controller enables high-medium-low-speed operation with precision and full explosion-proof capability
  • Kettle chamber and jacket designed without dead angles, with special solid feeding port for easy cleaning without disassembly
  • Lower discharge part facilitates easy release of concentrated liquid and residue
  • Heating/cooling solution in sandwich layer completely eliminated after reaction
Our Services
  • Warranty: 1-year warranty from shipping date from China. We provide replacement and maintenance services for manufacturing and quality issues. Transportation damage covered by seller.
  • Customization: As a manufacturer, we provide all types of customized services.
  • Replacement Parts Shipping: We select suitable shipping methods based on actual situation. Small parts shipped by express.
Specifications
Product Model FPGR-3 FPGR-5 FPGR-10 FPGR-30 FPGR-50 FPGR-100 FPGR-200
Volume (L) 3 5 10 30 50 100 200
Neck No. on Cover 4 5 6 6 6 6 6
External Diameter of Inner Vessel (mm) 150 180 230 330 365 460 600
External Diameter of Outer Vessel (mm) 200 230 290 365 410 500 650
Cover Diameter (mm) 150 180 265 265 265 340 340
Vessel Height (mm) 300 400 450 730 850 950 1200
Motor Power (W) 40 60 140 140 140 250 750
Vacuum Degree (Mpa) 0.098 0.098 0.098 0.098 0.098 0.098 0.098
Rotation Speed (rpm) 50-1400 50-600 50-600 50-600 50-600 50-600 50-600
Torque (Nm) 0.27 0.95 2.23 2.23 2.23 3.98 6.37
Power (V) 220 220 220 220 220 220 220
Dimension (mm) 320*350*900 450*450*1200 650*650*1900 700*500*2100 800*600*2300 1000*700*2700 1200*900*3200
Product Description
Glass reactor systems are essential equipment for mixing, reaction, distillation and filtration in chemistry and pharmaceutical industries. We offer a wide range of glass reactors with volumes from 250mL to 250L, available as electrical or air-driven, desktop or floor-stand models, with or without filter base. All glass reactor systems can be modified in our factory for dimension, motor power, explosion proof requirements, additional glassware, custom port sizes, and more.
Main Features
  • Full set of glass parts made from G3.3 borosilicate glass with excellent chemical and physical properties
  • Alternating current dynamo with frequency control stirring for reliable operation, large torque, and no spark
  • Operates under normal temperature with tap water connection for rapid reaction heat removal
  • Works under normal and negative pressure conditions up to -0.098MPa
  • Constant rotation speed, brushless operation, no spark, safe and stable for continuous work
  • Main body constructed from anti-corrosion stainless steel
  • Discharge outlet with flange mouth and PTFE valve, no dead angles in vessel, detachable for convenient solid material discharge
Product Details

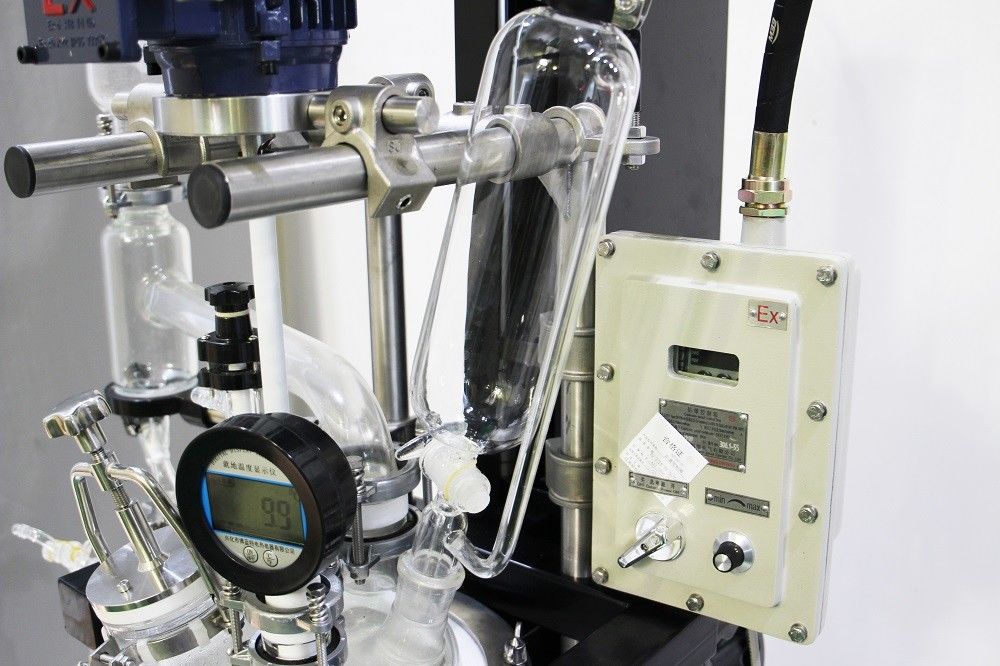

Chemglass Jacketed Reactor product detail view
Packaging & Delivery
Packaging: Glass parts wrapped with foam and carton, main body portion packed in wooden cases. Both neutral and customized packaging available.
Shipping: International Express services including DHL, UPS, TNT, EMS. Option to use your own shipping agent available.
Packaging and shipping process for Chemglass Reactor
Our Factory
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specializing in research, development and production of chemical glass instruments. Our main products include glass reactors, wiped film evaporators, rotary evaporators, short-path molecular distillation devices and chemical glass tubes.
Our advantage is customization according to client needs. We provide relevant industries with design, manufacturing, equipment selection, instrument supporting, installation, debugging, and maintenance services. Our chemical glass instruments are widely used in pharmaceuticals, chemicals, biological pharmacy, new materials, and noble materials.
Located in Nantong City with convenient transportation access (2 hours from Shanghai). Covering 16,000 square meters with over 100 employees and annual sales exceeding $20 million USD.
Nantong Sanjing Chemglass factory facility
