150-200L Capacity Laboratory Glass Jacketed Reactor with High Borosilicate Glass 3.3 and Thermal Oil Heating
  • name

150-200L Capacity Laboratory Glass Jacketed Reactor with High Borosilicate Glass 3.3 and Thermal Oil Heating

Details Information
Product Description
Detail Information
Capacity:
150L-200L
Automatic Grade:
Automatic
Type:
Reaction Kettle
Core Components::
Engine, Motor
Glass Material::
High Borosilicate Glass 3.3
Working Temperatur::
-350
Heating Method::
Thermal Oil Heating
After Warranty Service::
Online Support
Product Modle:
PGR-150
Volume(L):
150
Neck No.on Cover:
6
External Diameter Of Inner Vessel(mm):
550
External Diameter Of Outer Vessel(mm):
600
Cover Diameter(mm):
340
Vessel Height(mm):
980
Motor Power(w):
400
Vacuum Degree(Mpa):
0.098
Rotation Speed(rpm):
50-600
Torque(Nm):
6.37
Power(V):
220
Diamension(mm):
1200*900*3000
Product Modle:
PGR-200
Volume(L):
200
External Diameter Of Inner Vessel(mm):
600
External Diameter Of Outer Vessel(mm):
650
Vessel Height(mm):
1200
Motor Power(w):
750
Diamension(mm):
1200*900*3200
Highlight:

150-200L jacketed glass reactor

,

laboratory chemical reactor with jacket

,

large capacity lab glass reactor

Product Description

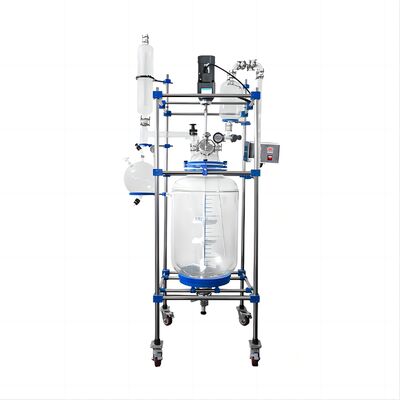

150-200L Laboratory Glass Chemical Jacketed Reactor
150-200L Laboratory Glass Chemical Jacketed Reactor
The 150-200L laboratory glass chemical jacketed reactor is a robust system designed to handle larger reaction volumes, ranging from 150 to 200 liters. Its capacity makes it suitable for advanced research and industrial applications. This reactor is constructed using high-quality laboratory-grade glass, which is resistant to chemical corrosion and ensures optimal visibility of the reaction process. Additionally, the reactor can withstand a wide range of operating temperatures and pressures, providing researchers with versatility and control.
  • High-quality laboratory-grade glass construction
  • Excellent chemical corrosion resistance
  • Optimal visibility of reaction processes
  • Versatile temperature and pressure handling capabilities
  • Robust design for advanced research and industrial use
Ideal for: Pharmaceutical research, chemical synthesis, material science, and pilot-scale production in industries requiring precise reaction control.
Key Product Attributes
Glass Material
High Borosilicate Glass 3.3
Automatic Grade
Automatic
Type
Reaction Kettle
Heating Method
Thermal Oil Heating
After Warranty Service
Online support
Technical Specifications
Model: PGR-150
Parameter Value Unit Details
Volume150LJacketed Reactor
Neck No. on Cover6-Standard Configuration
External Diameter of Inner Vessel550mm-
External Diameter of Outer Vessel600mm-
Cover Diameter340mm-
Vessel Height980mm-
Motor Power400W-
Vacuum Degree0.098Mpa-
Rotation Speed50-600rpmVariable Speed
Torque6.37Nm-
Power220VSingle Phase
Dimensions1200*900*3000mm(L*W*H)
Model: PGR-200
Parameter Value Unit Details
Volume200LJacketed Reactor
Neck No. on Cover6-Standard Configuration
External Diameter of Inner Vessel600mm-
External Diameter of Outer Vessel650mm-
Cover Diameter340mm-
Vessel Height1200mm-
Motor Power750W-
Vacuum Degree0.098Mpa-
Rotation Speed50-600rpmVariable Speed
Torque6.37Nm-
Power220VSingle Phase
Dimensions1200*900*3200mm(L*W*H)
General Specifications
Parameter Value Unit Details
Working Temperature-350°C(Note: This value seems unusually low for a working temperature. Please verify.)
Core ComponentsEngine, Motor-Provided
