150-200L Customizable Laboratory Glass Reactor with High Borosilicate Glass 3.3 and Thermal Oil Heating
  • name
  • name
  • name

150-200L Customizable Laboratory Glass Reactor with High Borosilicate Glass 3.3 and Thermal Oil Heating

MOQ: 1
Details Information
Product Description
Detail Information
Capacity:
150L-200L
Automatic Grade:
Automatic
Type:
Reaction Kettle
Core Components::
Engine, Motor
Glass Material::
High Borosilicate Glass 3.3
Working Temperatur::
-350
Heating Method::
Thermal Oil Heating
After Warranty Service::
Online Support
Product Modle:
FPGR-150
Volume(L):
150
Neck No.on Cover:
6
External Diameter Of Inner Vessel(mm):
550
External Diameter Of Outer Vessel(mm):
600
Cover Diameter(mm):
340
Vessel Height(mm):
980
Motor Power(w):
750
Vacuum Degree(Mpa):
0.098
Rotation Speed(rpm):
50-600
Torque(Nm):
11.9
Power(V):
220
Diamension(mm):
1200*900*3000
Product Modle:
FPGR-200
Volume(L):
200
External Diameter Of Inner Vessel(mm):
600
External Diameter Of Outer Vessel(mm):
650
Vessel Height(mm):
1200
Diamension(mm):
1200*900*3200
Highlight:

150-200L jacketed glass reactor

,

customizable lab chemical reactor

,

laboratory glass reactor with jacket

Product Description
150-200L Customizable Laboratory Jacketed Chemical Glass Reactor

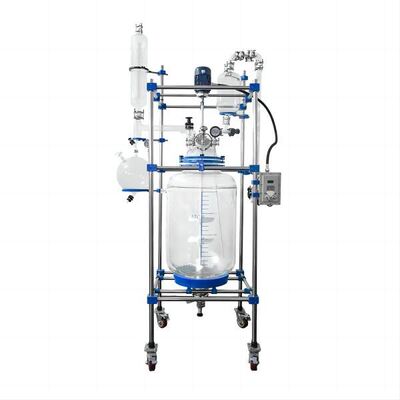

Laboratory jacketed chemical glass reactor front view Laboratory jacketed chemical glass reactor side view Laboratory jacketed chemical glass reactor operational view
Precision, control, and safety are paramount in laboratory experiments. Our 150-200L Customizable Laboratory Jacketed Chemical Glass Reactor is designed to meet these critical needs, offering a versatile, efficient, and adaptable solution for your research endeavors. With ample capacity and customizable features, this reactor empowers scientists across various disciplines.
  • Versatile Capacity: Generous 150-200L volume accommodates diverse substances and scales.
  • Customizable Design: Tailored adjustments to meet specific research requirements.
  • Precise Temperature Control: Essential for accurate and reliable experimental outcomes.
  • High-Quality Materials: Constructed with durable, laboratory-grade components.
  • Enhanced Safety Features: Designed with paramount safety in mind for all laboratory operations.
Ideal for: Pharmaceutical research, chemical synthesis, material science, and other advanced laboratory applications requiring precise reaction conditions.
Product Attributes
Brand N/A
Origin N/A
Material High Borosilicate Glass 3.3
Color Clear Glass
FOB Unit piece
MOQ 1
FOB Price 0
Packaging & Delivery Standard packaging and delivery methods for laboratory equipment will be applied.
Technical Specifications
General Specifications
Capacity Automatic Grade Type Core Components Glass Material Working Temperature Heating Method After Warranty Service
150L-200L Automatic Reaction Kettle Engine, Motor High Borosilicate Glass 3.3 -35°C to 350°C Thermal Oil Heating Online support
Model FPGR-150
Product Model Volume(L) Neck No.on Cover External Diameter of Inner Vessel(mm) External Diameter of Outer Vessel(mm) Cover Diameter(mm) Vessel Height(mm) Motor Power(w) Vacuum Degree(Mpa) Rotation Speed(rpm) Torque(Nm) Power(V) Dimensions(mm)
FPGR-150 150 6 550 600 340 980 750 0.098 50-600 11.9 220 1200*900*3000
Model FPGR-200
Product Model Volume(L) Neck No.on Cover External Diameter of Inner Vessel(mm) External Diameter of Outer Vessel(mm) Cover Diameter(mm) Vessel Height(mm) Motor Power(w) Vacuum Degree(Mpa) Rotation Speed(rpm) Torque(Nm) Power(V) Dimensions(mm)
FPGR-200 200 6 600 650 340 1200 750 0.098 50-600 11.9 220 1200*900*3200
