Rotary  Evaporator 2020 Brand New10-50L Vacuum Rotary Evaporator With Dual Condensers

Rotary  Evaporator 2020 Brand New10-50L Vacuum Rotary Evaporator With Dual Condensers

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets/momth
Detail Information
Place of Origin
CHINA, JIANGSU
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
FPGR-2
Process:
Rotating
Warranty:
One Year
Material:
Customized
Vacuum Degree:
-0.098mpa
Certification:
CE,ISO9001
Application:
Distillation
Condition:
New
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Highlight:

rotary vacuum distiller

,

rotary film evaporator

Product Description

Vacuum Rotary evaporator

Rotary evaporator is an evaporating instrument widely used in laboratory.It is suitable for reflux operation, rapid evaporation of solvent, concentration of trace components and reaction processes requiring stirring.

Rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in pharmaceutical, chemical and biological pharmaceutical industries.The principle is that under the vacuum condition, the constant temperature heating ,making the rotating bottle rotate at a constant speed, the material forms a large area of film on the bottle wall, and then solvent evaporates efficiently. The solvent vapor is cooled by the high efficiency glass condenser and recycled in the collection bottle, which greatly improves the evaporation efficiency.

Rotary evapotator is especially suitable for the concentration and purification of biological products which are easy to decompose and denature at high temperature.

Explosion-proof rotary evaporator uses a explosion-proof motor, that will keep reaction to be safe in the whole process.



Using stepless speed regulation to rotate glass bottle in a constant speed, material forms a large area of balanced thin film in bottle wall, then the smart thermostat water bath heats the rotating bottle and conducts high speed evaporation under vacuum condition. Solvent steam is cooled by high efficiency glass condenser and recycled to receiving bottle.

Features

1. Easy, straight-forward and visual operation with digital speed and temperature display
2. PID temperature controller ensures accurate temperature control.
3.1-way check valve automatically turns off when draining the receiving flask.
4. All components making contact with liquids and gases are made of borosilicate glass 3.3 and PTFE.
5. Specialized motor provides precise driving for very quiet, vibration-free operation.
6. Downward-condensing vacuum connection design ensures safe vacuum operation.
7. Modular design (individual rotary and water bath modules) upgrades easily maintenance.




Product Model

Evaporation Flask

Receiving Flask

Motor Power(w)

Bath Power

Rotation Speed

Evaporation Speed(L/h)

Power(V)

Dismension(cm)
PR-2
2L/29#
1L
40
1.5
10-180
1.2
220
55*35*75
PR-5
5L/50#
2L/3L
90
2
10-90
2
220
55*35*110
PR-10
10L/95#
5L
120
3
5-110
3.5
220
100*50*180
PR-20
20L/95#
10L+5L
120
5
5-110
5
220
110*70*200
PR-50
50L/125#
10L+10L
180
5
5-110
8
220
120*80*220

Product Details

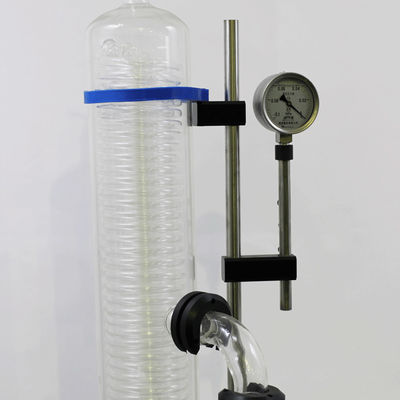

Rotary  Evaporator 2020 Brand New10-50L Vacuum Rotary Evaporator With Dual Condensers 0



Rotary  Evaporator 2020 Brand New10-50L Vacuum Rotary Evaporator With Dual Condensers 1



Packing and delivery

Rotary  Evaporator 2020 Brand New10-50L Vacuum Rotary Evaporator With Dual Condensers 2

Packaging
- The mini parts will be wrapped with foam, then put into the carton, the mainbody portion will be packed in wooden cases;
- Also customized packaging can be available.
Shipping
- DHL, UPS, TNT, EMS and so on. Also, you can choose your own shipping agent.



Our factory

Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument. Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.



Advantage of us is customize according to client need. We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, new material, noble material.



We are located in Nantong City, with convenient transportation access. 2 hours away drives from Shanghai. Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.



Rotary  Evaporator 2020 Brand New10-50L Vacuum Rotary Evaporator With Dual Condensers 3



Our services

1. If you have questions of the equipment
Please send us email of the problem. Pictures or a small video will be much better. We will find the
problem and tell you how to solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.

2. The shipping of the replacement parts
We will according the actual situation to choose the suitable shipping ways. For small parts we shipping by Express.

3. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized services.



4. Warranty

(1) We offer 1 years warranty . For the manufacturing and quality problem, we offer replacement, maintenance service.
(2) The damage caused by the transportation shall be borned by the seller.
