1l 2l 5l 10l 20l 50l Industrial Rotary Evaporator Innovative For Alcohol Extraction
  • name
  • name
  • name
  • name
  • name

1l 2l 5l 10l 20l 50l Industrial Rotary Evaporator Innovative For Alcohol Extraction

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5 days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets/momth
Details Information
Product Description
Detail Information
Place of Origin
CHINA, JIANGSU
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
FPGR-20
Motor Power:
120
Process:
Evaporator
Weight:
Depending
Product Name:
Rotary Vacuum Evaporator
Sealing:
PTFE Sealing
Voltage:
220V
Receiving Flask:
Customized
Highlight:

large scale rotary evaporator

,

rotary vacuum distiller

Product Description

Vacuum Rotary evaporator

  It is mainly used for concentration, crystallization, drying, separation and solvent recovery in pharmaceutical, chemical and biological pharmaceutical industries.



  Widely used in laboratory.It's suitable for reflux operation, rapid evaporation of solvent, concentration of trace components and reaction processes requiring stirring.



  The principle is that under the vacuum condition, the constant temperature heating ,making the rotating bottle rotate at a constant speed, the material forms a large area of film on the bottle wall, and then solvent evaporates efficiently. The solvent vapor is cooled by the high efficiency glass condenser and recycled in the collection bottle, which greatly improves the evaporation efficiency.



Features

Adopt AC induction motor, variable speed, no brush, no spark, can work effectively for a long time.

Chassis, bath pot, main bar, shaft of rotary evaporator are made of high qualified stainless steel.

Appearance is attractive and anti-corrosive.

Intelligent temperature control can work with both water and oil bath.

Temperature fluctuation is only ±0.02 ℃.Evaporation is more stable and material can not be washed easily.

Customizable




Product Model

Evaporation Flask

Receiving Flask

Motor Power(w)

Bath Power

Rotation Speed

Evaporation Speed(L/h)

Power(V)

Dismension(cm)
PR-2
2L/29#
1L
40
1.5
10-180
1.2
220
55*35*75
PR-5
5L/50#
2L/3L
90
2
10-90
2
220
55*35*110
PR-10
10L/95#
5L
120
3
5-110
3.5
220
100*50*180
PR-20
20L/95#
10L+5L
120
5
5-110
5
220
110*70*200
PR-50
50L/125#
10L+10L
180
5
5-110
8
220
120*80*220

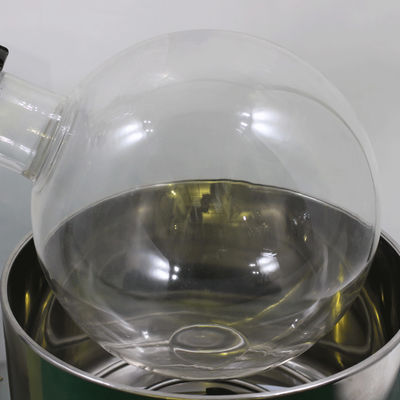

Product Details

1l 2l 5l 10l 20l 50l Industrial Rotary Evaporator Innovative For Alcohol Extraction 0

1l 2l 5l 10l 20l 50l Industrial Rotary Evaporator Innovative For Alcohol Extraction 11l 2l 5l 10l 20l 50l Industrial Rotary Evaporator Innovative For Alcohol Extraction 2

Packing and delivery

Packaging
- The mini parts will be wrapped with foam, then put into the carton, the main body portion will be packed in wooden cases;
- Also customized packaging can be available.

1l 2l 5l 10l 20l 50l Industrial Rotary Evaporator Innovative For Alcohol Extraction 3



Our factory



1l 2l 5l 10l 20l 50l Industrial Rotary Evaporator Innovative For Alcohol Extraction 4

Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument.



Including glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.



Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching America, Mexico, India, Turkey, Germany and Norway.



Please feel free to contact us if you are interested in any of our products . We are looking forward to forming successful business relationship with you.

Our service

Customizable

1. If you have questions of the equipment
Please send us email of the problem. Pictures or a small video will be much better. We will find the
problem and tell you how to solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.

2. Could you do customized for us?
We are a manufacturer that can provide all kinds of customized services.



3. Warranty
We offer 1 years warranty . For the manufacturing and quality problem, we offer replacement, maintenance service.
