Safe Industrial Rotary Evaporator Manual Lifting Improved Recovery Speed

Safe Industrial Rotary Evaporator Manual Lifting Improved Recovery Speed

MOQ: 1 Set
Price: Negotiable
Standard Packaging: polywood case
Delivery Period: 5-7 working days
Payment Method: T/T, L/C, Western Union
Supply Capacity: 100 sets per month
Detail Information
Place of Origin
NANTONG, CHINA
Brand Name
NTSJ
Certification
ISO9001
Model Number
PR-10
Motor Power:
140W
Voltage:
220V
Rotary Flask:
10L
Receiver:
5L
Condition:
New
Material:
Borosilicate Glass
Dimension(l*w*h):
Capacity
Sealing:
PTFE Sealing
Highlight:

large scale rotary evaporator

,

rotary vacuum distiller

Product Description

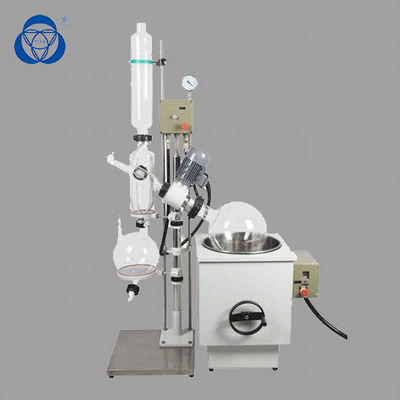

Borosilicate Rotary Evaporator

Rotary evaporator’s working principle is to rotate the glass flask filled with materials under constant temperature heating, and the system connect to the negative pressure to low the boiling point, then liquid forms a film and evaporates,



At last it recovers the menstruum by the glass coil condenser and receiving flask. It is specially applicable for the concentration, crystallization, separation and menstruum recovery of heat sensitive materials.

Specifications



roduct Model

Evaporation Flask

Receiving Flask

Motor Power(w)

Bath Power

Rotation Speed

Evaporation Speed(L/h)

Power(V)

Dismension(cm)
PR-2
2L/29#
1L
40
1.5
10-180
1.2
220
55*35*75
PR-5
5L/50#
2L/3L
90
2
10-90
2
220
55*35*110
PR-10
10L/95#
5L
120
3
5-110
3.5
220
100*50*180
PR-20
20L/95#
10L+5L
120
5
5-110
5
220
110*70*200
PR-50
50L/125#
10L+10L
180
5
5-110
8
220
120*80*220

Features

Adopt advanced frequency converter and electronic speed regulator to ensure the stable working of motor and improve the evaporation and recovery speed.

Automatic bath lift and and vacuum feeding can help to reduce the breakage of rotary flask.

R-eceiving flask use ball-milling port for connection to ensure the high sealing, it also can be removed easily.

Use high temperature resistant, corrosion resistant and long-acting precision seals to ensure the gas tightness under high temperature, high negative pressure and strong corroding conditions when it is under dynamic sealing.

Chassis, bath pot, main bar, shaft of rotary evaporator are made of high qualified stainless steel, appearance is attractive and anti-corrosive.



Safe Industrial Rotary Evaporator Manual Lifting Improved Recovery Speed 0

Shipping and Package

Safe Industrial Rotary Evaporator Manual Lifting Improved Recovery Speed 1



The glass parts will be wrapped with foam material,then put into the carton, all parts will be packed into wooden case finally; Customized packaging can be available.
The damage caused by the transportation problem shall be born by the seller.
Qualified wooden package or carton for different products or as customer requirements

Service

We are a professional manufacturer which is specialized in designing, producing and selling.
Obtained many patents at home and abroad, all of our products is being innovated all the time.
Be able to do ODM. We could do OEM business mode with customers and the packaging could be customized according to per customer’s requirement.
With advanced technology and high-end equipment.we do quality control before shipping to our customers.
