Custom Sized Rotary Vacuum Evaporator , Solventvap Rotary Evaporator Adjustable

Custom Sized Rotary Vacuum Evaporator , Solventvap Rotary Evaporator Adjustable

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets/momth
Detail Information
Place of Origin
CHINA, JIANGSU
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
FPGR-20
Application:
Pharmaceutical Processing
Condition:
New
Dimension(l*w*h):
Capacity
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Warranty:
12 Months
Process:
Vacuum Distillation
Power Source:
Electric
Highlight:

large scale rotary evaporator

,

rotary film evaporator

Product Description

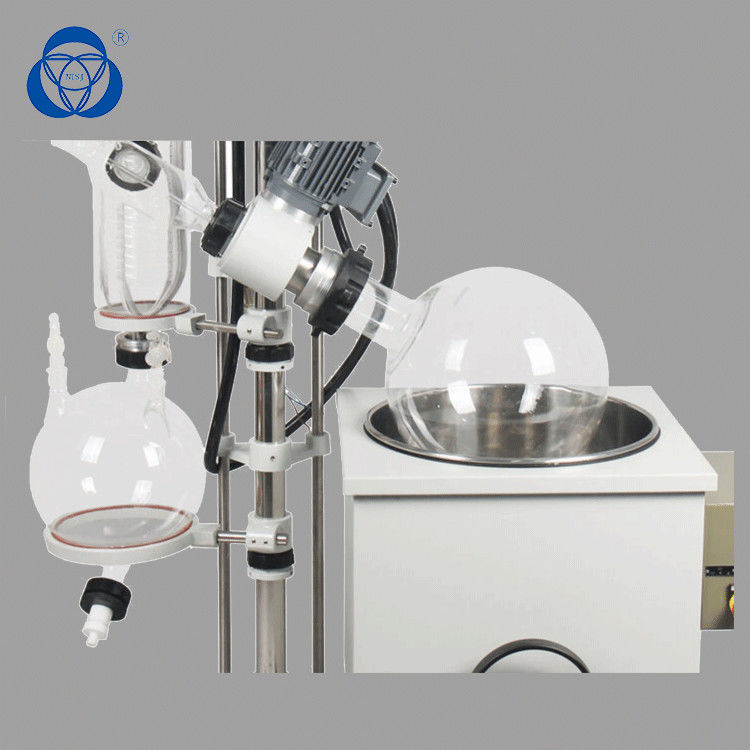

Vacuum Rotary evaporator

A rotary evaporator is a device used in Chemical Laboratories for efficient and gentle removal of solvents from samples by evaporation.



The main components of a rotary evaporator are:
1.The motor unit which rotates the evaporation flask containing sample material.
2. A vapour duct which acts as an axis for sample rotation, and a vacuum tight conduit for the vapour being drawn off of the sample.
3. A vacuum system (not integral part of the equipment) to substantially reduce the pressure within the evaporator system.
4. A heated fluid (water / thermic fluid) bath to heat the sample being evaporated.
5. A condenser with double coil through which the coolant passes.
6. A condensate collecting flask at the bottom of the condenser, to collect the distilling solvent after it recondenses.
7. A mechanical or motorized mechanism to quickly lift the evaporation flask from the heating bath or lower the heating bath so that the evaporation flask does not remain in contact with bath.

Features

The series modular design on the whole set makes it extensible and easy to install, and more convenient to maintain.



Adopt Japanese Technology AC induction motor, variable speed, no brush, no spark, can work effectively for a long time.


Chassis, bath pot, main bar, shaft of rotary evaporator are made of high qualified stainless steel, appearance is attractive and anti-corrosive.
Intelligent temperature control with digital display, can work with both water and oil bath, more widely used. Temperature fluctuation is only ±0.02 ℃. Evaporation is more stable and material can not be washed easily.





Product Model

Evaporation Flask

Receiving Flask

Motor Power(w)

Bath Power

Rotation Speed

Evaporation Speed(L/h)

Power(V)

Dismension(cm)
PR-2
2L/29#
1L
40
1.5
10-180
1.2
220
55*35*75
PR-5
5L/50#
2L/3L
90
2
10-90
2
220
55*35*110
PR-10
10L/95#
5L
120
3
5-110
3.5
220
100*50*180
PR-20
20L/95#
10L+5L
120
5
5-110
5
220
110*70*200
PR-50
50L/125#
10L+10L
180
5
5-110
8
220
120*80*220


Custom Sized Rotary Vacuum Evaporator , Solventvap Rotary Evaporator Adjustable 0



Packing and delivery

Custom Sized Rotary Vacuum Evaporator , Solventvap Rotary Evaporator Adjustable 1

We have good cooperation with many international express companies, such as DHL/ UPS/ FedEx/ TNT and other, as well as large shipping companies providing air shipping and sea shipping.

The glass parts will be wrapped with foam material,then put into the carton, all parts will be packed into wooden case finally; Customized packaging can be available.
The damage caused by the transportation problem shall be born by the seller.

Our factory



Custom Sized Rotary Vacuum Evaporator , Solventvap Rotary Evaporator Adjustable 2

We are a manufacturer and trader specialized in research, development and production of chemical glass instrument.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching America, Mexico, India, Turkey, Germany and Norway.

Besides this, we also build the relationship with more than 10 oversea agents.



FAQ

Q1: Can you provide OEM or ODM service?

A1: Yes, we have strong developing team to support OEM and ODM service. The products can be made according to your request.



Q2: What's your MOQ?

A2: Any quantity is acceptable for your order. And the price is negotiable for large quantity.



Q3: What is your terms of delivery?

A3: FOB/ CIF /Door to Door/By air as you like.
