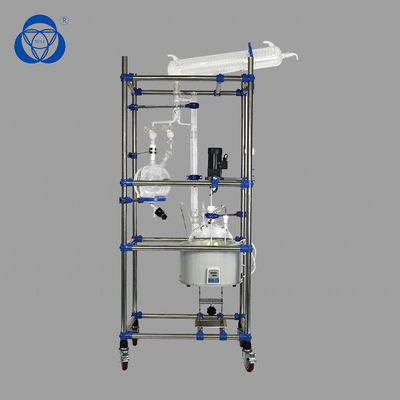

Lab Scale Double Layer Glass Reactor Semi Automatic Durable High Precision

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets/momth
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
FPGR-50
Pipe Fitting Material:
304 Stainless Steel/customized
Warranty:
12month
Vacuum Degree:
-0.098mpa
Weight:
68kg ~ 190kg
Automatic Grade:
Semi Automatic
Voltage:
220V
Certification:
CE,ISO9001
Application:
Lab Stirring, Distillation
Dimension(l*w*h):
Ordered Equipment
Highlight:

high pressure glass reactor

,

borosilicate glass reactor

Product Description

Glass Reactor Laboratory

Double glass reactor double glass design, inner into reaction menstruum do stirring reaction, interlayer can pass different cold sources (cryoprotectants, hot water or hot oil) do cycle heating or cooling reaction.



Setting thermostat conditions, in confined glass reactor, can use require atmospheric or negative pressure conditions conducted stirring response and do reaction solution reflux and distillation is modern Fine Chemical Factory, biopharmaceuticals and new materials synthesized ideal test production equipment.



Main features

Customizable

Made by high-borosilicate glass 3.3, with good physical and chemical performance.

The number of necks on reaction lid can be customized.

single layer & double & triple layer reactors are also available.

Perfect match between lid and reaction flask with frosted surface for perfect sealing.

Accurate control of rotating speed.

Optional Explosion-proof design.




Product Model

Volume(L)

Neck No.on Cover

External
Diameter of
inner Vessel(mm)

External
Diameter of
outer Vessel(mm)

Cover Diameter

Vessel Height(mm)

Motor Power(w)

Vacuum Degree(Mpa)

Rotation
Speed(rpm)

Torque(Nm)

Power(V)

Dimension(mm)
PGR-3
3
4
150
200
150
300
40
0.098
50-1400
0.27
220
320*350*900
PGR-10
10
6
230
265
450
140
0.098
50-600
2.23
220
650*650*1900
PGR-50
50
6
365
410
265
850
140
0.098
50-600
2.23
220
800*600*2300
PGR-100
100
6
460
500
340
950
250
0.098
50-600
3.98
220
1000*700*2700
PGR-200
200
6
600
650
340
1200
750
0.098
50-600
6.37
220
1200*900*3200




Lab Scale Double Layer Glass Reactor Semi Automatic Durable High Precision 0

Our factory

Nantong Sanjing Chemglass Co . Ltd is one of largest professional manufacturers of chemical glass equipments in China.The company specializes in design , production and manufacturing of biological and chemical testing instruments and pharmaceutical glass equipments , main products are : glass reactor series , rotary evaporator chemical glass pipes , glass condenser series , glass reaction devices series , bath pots series , heating circulator series , thermostatic bath series , cooling circulator series , constant speed stirrer , water circulation vacuum pumps , lab consumables and other products.



Lab Scale Double Layer Glass Reactor Semi Automatic Durable High Precision 1

Packing and delivery


Glass parts will be wrapped with foam, then put into the carton, the mainbody portion will be packed in wooden cases
Both neutral and customized packaging can be available.

We can ship the goods to you by International Express such as DHL, UPS, TNT, EMS and so on, you can also choose the appropriate one based on your timeline and budget. Besides, you can choose to use your own shipping agent.



Our service

Customizable

The warranty period of the company's products is 12 months from the

date of acceptance of the equipment (excluding glass fitings andconsumables);

If there are quality problems in the parts during the warranty period,

the seller can provide free replacement of malfunction components;if the damage is due to human factors, when the parts need to bereplaced, the seller will provide the accessories and charge themaintenance cost according to the price.

For on-site installation and commissioning, additional charges will apply.
