| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
| Delivery Period: | within 5days after payemnt received |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, |
| Supply Capacity: | 500 sets/momth |

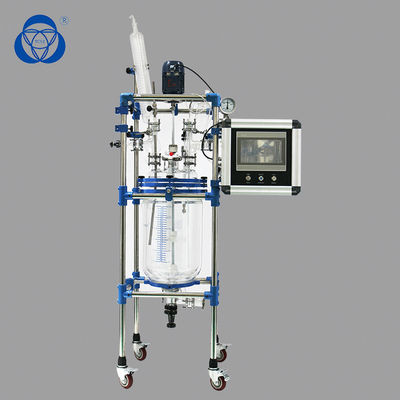

The glass reactors are equipped according to the application with additional glass equipment such as feed and product vessels, distillation columns and condensers as well as the required instrumentation.
This equipment is assembled as far as possible from standardized components - be easily modified and readily adapted to any task. Additionally the use of standardized components from stock offers the advantage of fast availability.
| Product Model | Volume (L) | Neck No. on Cover | External Diameter of Inner Vessel (mm) | External Diameter of Outer Vessel (mm) | Cover Diameter | Vessel Height (mm) | Motor Power (w) | Vacuum Degree (Mpa) | Rotation Speed (rpm) | Torque (Nm) | Power (V) | Dimension (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PGR-3 | 3 | 4 | 150 | 200 | 150 | 300 | 40 | 0.098 | 50-1400 | 0.27 | 220 | 320*350*900 |
| PGR-10 | 10 | 6 | 230 | 265 | 450 | 140 | 140 | 0.098 | 50-600 | 2.23 | 220 | 650*650*1900 |
| PGR-50 | 50 | 6 | 365 | 410 | 265 | 850 | 140 | 0.098 | 50-600 | 2.23 | 220 | 800*600*2300 |
| PGR-100 | 100 | 6 | 460 | 500 | 340 | 950 | 250 | 0.098 | 50-600 | 3.98 | 220 | 1000*700*2700 |
| PGR-200 | 200 | 6 | 600 | 650 | 340 | 1200 | 750 | 0.098 | 50-600 | 6.37 | 220 | 1200*900*3200 |
We have good cooperation with many international express companies, such as DHL/ UPS/ FedEx/ TNT and other, as well as large shipping companies providing air shipping and sea shipping.
We can also arrange global shipment as clients' requirements.
Specializes in design, production and manufacturing of biological and chemical testing instruments and pharmaceutical glass equipments.
Main products are: glass reactor series, rotary evaporator series, chemical glass pipes, glass condenser series, glass reaction devices series, bath pots series, heating circulator series, thermostatic bath series, cooling circulator series, constant speed stirrer, water circulation vacuum pumps, lab consumables and other products which are widely used in pharmaceuticals, chemicals, biological pharmacy, new materials, noble metals and other files, meanwhile, we can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, maintenance and other services etc.
Customized solutions available to meet specific requirements.
Warranty Information: The warranty period of the company's products is 12 months from the date of acceptance of the equipment (excluding glass fittings and consumables).
If there are quality problems in the parts during the warranty period, the seller can provide free replacement of malfunction components; if the damage is due to human factors, when the parts need to be replaced, the seller will provide the accessories and charge the maintenance cost according to the price.
For on-site installation and commissioning, additional charges will apply.
|
|
