| MOQ: | 1 SET |
| Price: | Negotiable |
| Standard Packaging: | polywood case |
| Delivery Period: | 20 working days |
| Payment Method: | T/T, Western Union, L/C |
| Supply Capacity: | 100 sets per month |
| Model | SJ-10 | SJ-20 | SJ-50 | SJ-100 | SJ-150 | SJ-200 | SJ-300 | SJ-500 |
| Evaporation Area m2 | 0.1 | 0.2 | 0.5 | 1 | 1.5 | 2 | 3 | 5 |
| Feeding Rate L/h | 1-15 | 5-25 | 10-60 | 50-120 | 60-180 | 100-200 | 100-300 | 200-500 |
| Feeding Method | High-precision gear pump | |||||||
| Receiving Method | Continuous discharge pump | |||||||
| Equipment Height(mm) | 2100 | 2650 | 3100 | 4250 | 4500 | 5000 | 6200 | 7500 |
| Max Speed(rpm) | 50-350 | |||||||
| Operation Temperature | Up to 350C | |||||||
| Vacuum Level(mbar) | Low to 0.001 mbar | |||||||
| Feeding Mode | Gear pump for automatic and continuous feeding | |||||||
| Collection Mode | Gear pump for automatic and continuous collection | |||||||
Molecular distillation is considered as the safest mode of separation and to purify the thermally unstable molecules and related compounds with low volatility and elevated boiling point.
One example is that, Molecular Distillation is applied for creating a high value clear distillate from Plant Oil Concentrates, for example, refine hemp concentrates into a golden clear distillate that can be infused into a variety of edible products or fine oils to be used in vape cartridges or other products.
| Turnkey Solution for Stainless Steel Molecular Distillation | |

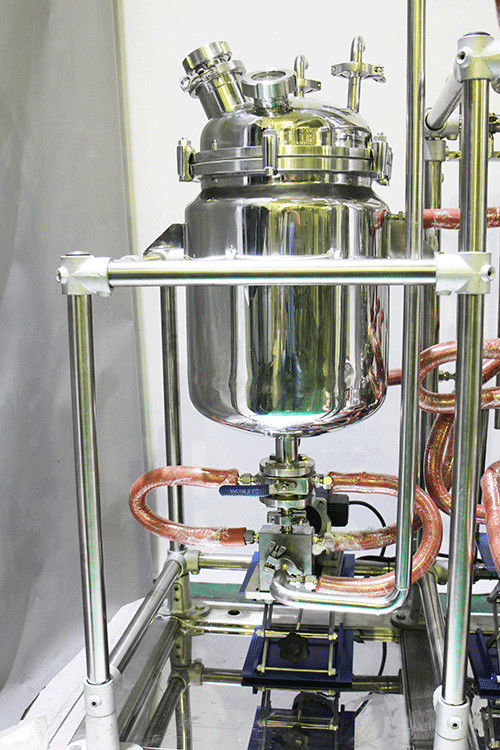

| 1 | Jacketed feeding vessel with sight glass |
| 2 | Feed pump for automatic and continuous feeding |
| 3 | Motor to drive rotation with mechanical sealing (Optional: Magnetic sealing) |
| 4 | Jacketed evaporator with internal condenser |
| 5 | Coils cold trap with sight glass |
| 6 | Collection pump(Distillate)for automatic and continuous collection |
| 7 | Collection pump (Residue) for automatic and continuous collection |

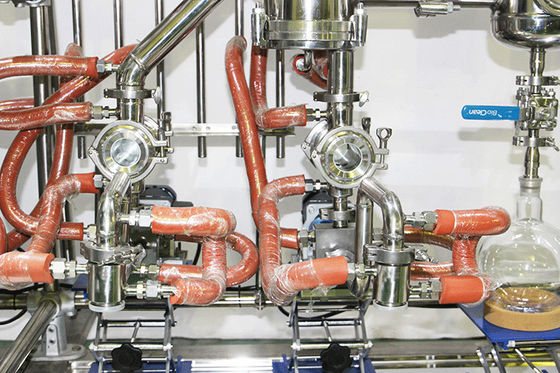

| 8 | Full jacketed pipe (feeding and collection section) |
| 9 | Control cabinet |
| 10 | Heating circulator for feeding vessel and pipeline |
| 11 | Heating circulator for jacketed evaporator |
| 12 | Heating circulator for reside collection section |
| 13 | Heating & cooling Circulator for internal condenser and distillate collection section |
| 14 | Cooling circulator for cold trap |
| 15 | Rotary vane vacuum pump |
| 16 | Molecular pump (Optional: Diffusion Pump) |
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching America, Mexico, India, Turkey, Germany and Norway. Besides this, we also build the relationship with more than 10 oversea agents.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationship with new clients around the world in the near future.
Customizable
Training how to install the machine and how to operate
Free 24-hour technical support
Engineers available to service machinery overseas
Quick response for detailed quotation and solutions according to clients' requirements.Confirm price, quantity, shipment, lead time and payment terms.
1 year complimentary warranty
Qualified wooden package or carton for different products or as customer require.
Strict packing process to ensure the safety and completeness of the goods
We are experienced in the whole packing and shipping process, and we will be responsible for any damage made during shipping and send clients replacements for free.
Sufficient inner protection with different materials, including bubble bag, foam board and others.
|
|
