Nantong Sanjing Chemglass Co.,Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTSJ |
| Certification: | CE,ISO9001 |
| Model Number: | FPGR-10 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
| Delivery Time: | within 5days after payemnt received |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/momth |
| Warranty: | 1 Year | Automatic Grade: | Semi-Automatic |
|---|---|---|---|
| Type: | Reaction Kettle | Application: | New Material Synthesis |
| Vacuum Degree: | 0.098 | Capacity: | Customzied |
| Neck No. On Lid: | 6 | Name: | Chemglass Filter Reactor |
| High Light: | high pressure glass reactor,laboratory reactor vessel |
||

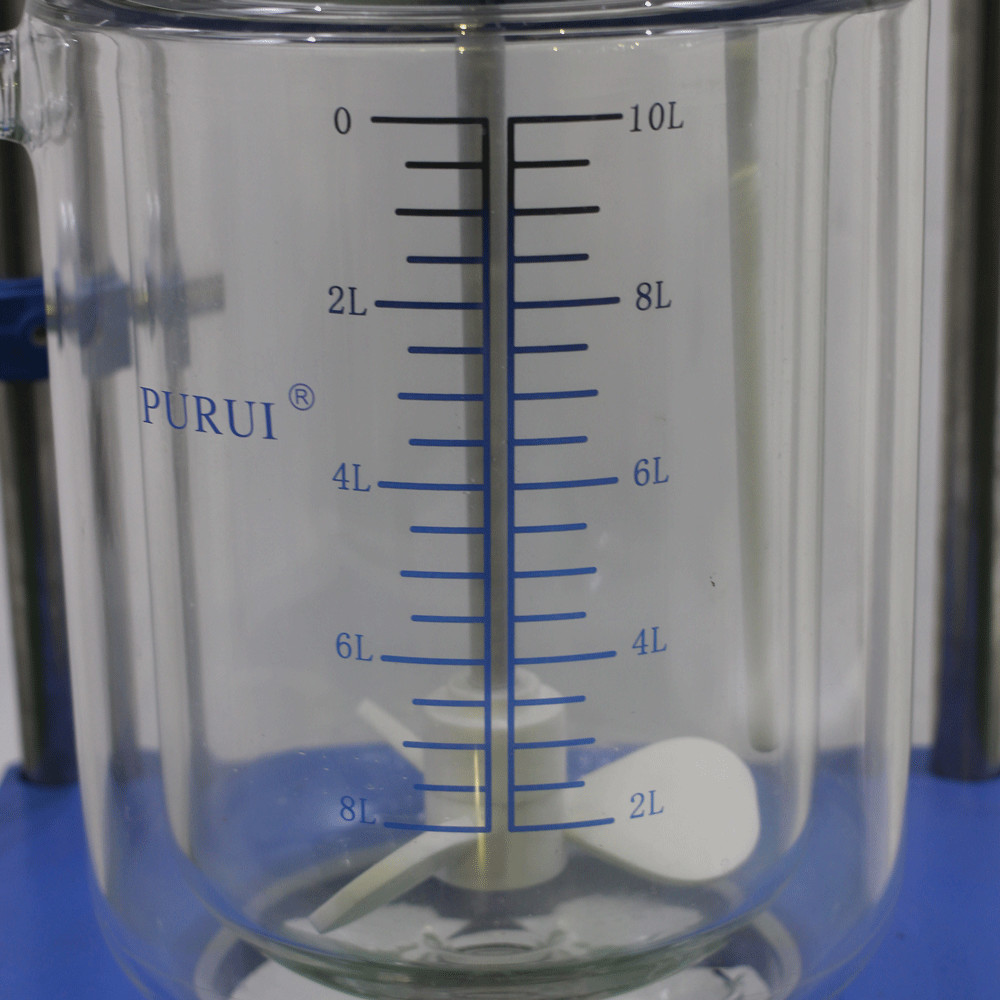

We offer a wide range of glass reactors with volumes from 250mL to 250L. They are electrical or air-driven, desktop or floor-stand, with or without filter base.
All the glass reactor systems can be modified in our own factory quickly (dimension, motor power, explosion proof, additional glassware, customize port size, etc).
The glass reactor systems are the essential equipment for mixing, reaction, distillation and filtration in chemistry and pharmaceutical industries.
| Product Model | PGR-3 | PGR-5 | PGR-10 | PGR-30 | PGR-50 | PGR-100 | PGR-200 |
| Volume(L) | 3 | 5 | 10 | 30 | 50 | 100 | 200 |
| Neck No.on Cover | 4 | 5 | 6 | 6 | 6 | 6 | 6 |
| External Diameter of Inner Vessel(mm) | 150 | 180 | 230 | 330 | 365 | 460 | 600 |
| External Diameter of Outer Vessel(mm) | 200 | 230 | 290 | 365 | 410 | 500 | 650 |
| Cover Diameter(mm) | 150 | 180 | 265 | 265 | 265 | 340 | 340 |
| Vessel Height(mm) | 300 | 400 | 450 | 730 | 850 | 950 | 1200 |
| Motor Power(W) | 40 | 60 | 140 | 140 | 140 | 250 | 750 |
| Vacuum Degree(Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
| Rotation Speed(rpm) | 50-1400 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
| Torque(Nm) | 0.27 | 0.95 | 2.23 | 2.23 | 2.23 | 3.98 | 6.37 |
| Power(V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Dimension(mm) | 320*350*900 | 450*450*1200 | 650*650*1900 | 700*500*2100 | 800*600*2300 | 1000*700*2700 | 1200*900*3200 |
Stirring blades
The blades are available in PTFE,
stainless steel and can be clamped on the stirring shaft.
Vacuum Jacket
an additional vacuum jacket on the vessel can provide thermal insulation, get rid of frost and keep clear vision inside the vessel
Thermo-fluid port
We offer thermo- fluid ports in different forms (glass barb,stainless steel barb, flange, NPT thread, etc).
① Full set of glass part is produced by G3.3 borosilicate glass, owning excellent chemical and physical properties.
② Alternating current dynamo conducts frequency control stirring, reliable operation, large moment of force and no spark.
③ Enable react under normal temperature, tap water connected can take away the reaction heat quickly.
Packaging
-Glass parts will be wrapped with foam and carton, the mainbody portion will be packed in wooden cases;
-Both neutral and customized packaging can be available.
Shipping
-By International Express such as DHL, UPS, TNT, EMS and so on.Besides, you can choose to use your own shipping agent.
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument.
Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.
We are located in Nantong City, with convenient transportation access. 2 hours away drives from Shanghai.
Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.
Advantage of us is customize according to client need.
We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, new material, noble material.
Customizable
1. The period, scope and condition of the warranty.
(1) We offer 1 years warranty on the date of shipping from China.
(2) During the warranty time, because of manufacturing&quality problem, we offer replacement, maintenance service.
(3) The damage caused by the transportation problem shall be borne by the seller.
2. Could you do customized for us?
We can provide all kinds of customized services.
3. How to shipping the replacement parts?
We will according the actual situation to choose the suitable shipping ways.
