MOQ: | 1 set |
Price: | Negotiable |
Standard Packaging: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
Delivery Period: | within 5days after payemnt received |
Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Capacity: | 500 sets/momth |
The glass reactor systems are the essential equipment for mixing, reaction, distillation and filtration in chemistry and pharmaceutical industries.
In chemical engineering, a jacketed vessel is a container that is designed for controlling temperature of its contents, by using a cooling or heating "jacket" around the vessel through which a cooling or heating fluid is circulated. Agitation can be also used in jacketed vessels to improve the homogeneity of the fluid properties (such as temperature or concentration)
Product Model | PGR-3 | PGR-5 | PGR-10 | PGR-30 | PGR-50 | PGR-100 | PGR-200 |
Volume(L) | 3 | 5 | 10 | 30 | 50 | 100 | 200 |
Neck No.on Cover | 4 | 5 | 6 | 6 | 6 | 6 | 6 |
External Diameter of Inner Vessel(mm) | 150 | 180 | 230 | 330 | 365 | 460 | 600 |
External Diameter of Outer Vessel(mm) | 200 | 230 | 290 | 365 | 410 | 500 | 650 |
Cover Diameter(mm) | 150 | 180 | 265 | 265 | 265 | 340 | 340 |
Vessel Height(mm) | 300 | 400 | 450 | 730 | 850 | 950 | 1200 |
Motor Power(W) | 40 | 60 | 140 | 140 | 140 | 250 | 750 |
Vacuum Degree(Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
Rotation Speed(rpm) | 50-1400 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
Torque(Nm) | 0.27 | 0.95 | 2.23 | 2.23 | 2.23 | 3.98 | 6.37 |
Power(V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
Dimension(mm) | 320*350*900 | 450*450*1200 | 650*650*1900 | 700*500*2100 | 800*600*2300 | 1000*700*2700 | 1200*900*3200 |
The 500mL to 5L reactor systems come with a table-top design with maximized accessibility to all components (vessel, lid, condenser, funnel, etc). Any exchange and replacement of components can be done easily.
Our unjacketed glass reactors come with an oil/water bath included, so that no additional heating circulator is needed.

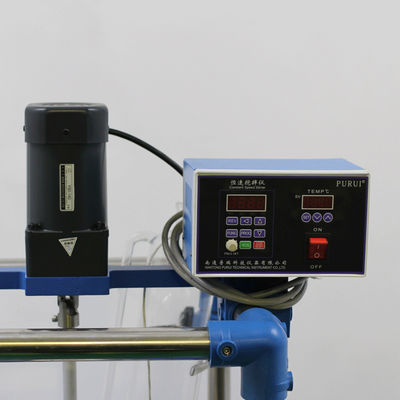

Durable AC induction motor is designed for continuous operation.
The support frame is made of stainless steel 304, with outstanding corrosion resistance. Moreover, it’s designed to protect the glass vessel against damages from careless operation.
The bottom drain valve has a zero dead space design, to make sure materials inside the vessel is always mixed thoroughly.

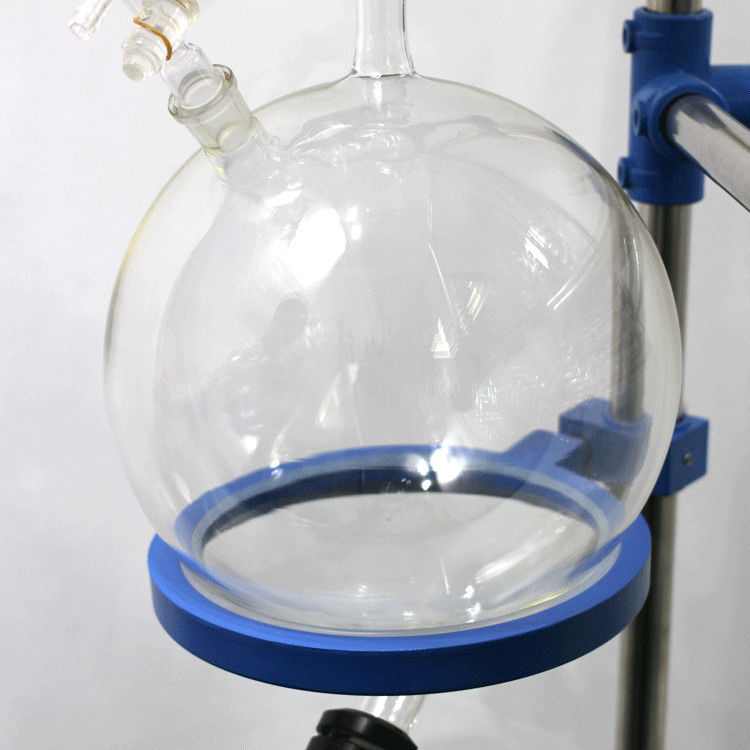

All the glassware is carefully crafted by borosilicate 3.3 glass for excellent chemical and physical performance.
The glass lid comes with 5 ports for maximized flexibility in operation (ports for stirring, thermowell, funnel, condenser & vacuum valve).
