Nantong Sanjing Chemglass Co.,Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTSJ |
| Certification: | CE,ISO9001 |
| Model Number: | FPGR-1 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
| Delivery Time: | within 5days after payemnt received |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/momth |
| Product Name: | Chemical Reactor | Automatic Grade: | Semi-Automatic |
|---|---|---|---|
| Dimension(l*w*h): | Ordered Equipment | Warranty: | 12 Months |
| Type: | Reaction Kettle | Condition: | New |
| Application: | New Material Synthesis | Feature: | Customizable |
| High Light: | high pressure glass reactor,borosilicate glass reactor |
||

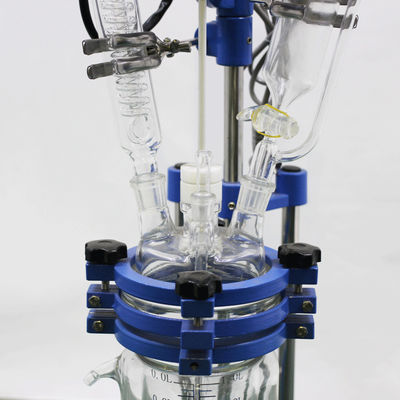

Double layer glass reactor is stirred by reaction solvent in the inner layer.
The interlayer can be heated / cooled by cold and heat sources (frozen liquid, water or silicone oil).
PTFE sealing material, sealing, corrosion resistance, wear resistance, electronic stepless speed regulation, smooth operation, the main structure of stainless steel, aluminum alloy.
| Product Model | PGR-3 | PGR-5 | PGR-10 | PGR-30 | PGR-50 | PGR-100 | PGR-200 |
| Volume(L) | 3 | 5 | 10 | 30 | 50 | 100 | 200 |
| Neck No.on Cover | 4 | 5 | 6 | 6 | 6 | 6 | 6 |
| External Diameter of Inner Vessel(mm) | 150 | 180 | 230 | 330 | 365 | 460 | 600 |
| External Diameter of Outer Vessel(mm) | 200 | 230 | 290 | 365 | 410 | 500 | 650 |
| Cover Diameter(mm) | 150 | 180 | 265 | 265 | 265 | 340 | 340 |
| Vessel Height(mm) | 300 | 400 | 450 | 730 | 850 | 950 | 1200 |
| Motor Power(W) | 40 | 60 | 140 | 140 | 140 | 250 | 750 |
| Vacuum Degree(Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
| Rotation Speed(rpm) | 50-1400 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
| Torque(Nm) | 0.27 | 0.95 | 2.23 | 2.23 | 2.23 | 3.98 | 6.37 |
| Power(V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Dimension(mm) | 320*350*900 | 450*450*1200 | 650*650*1900 | 700*500*2100 | 800*600*2300 | 1000*700*2700 | 1200*900*3200 |
Durable AC induction motor is designed for continuous operation.
All the glassware is carefully crafted by borosilicate 3.3 glass for excellent chemical and physical performance.
The glass lid comes with 5 ports for maximized flexibility in operation (ports for stirring, thermowell, funnel, condenser & vacuum valve).
