Nantong Sanjing Chemglass Co.,Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | NTSJ |
| Certification: | CE,ISO9001 |
| Model Number: | FPGR-50 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
| Delivery Time: | within 5days after payemnt received |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/momth |
| Product Name: | Jacketed Glass Filter | Automatic Grade: | Semi-Automatic |
|---|---|---|---|
| Certification: | ISO9001 | Type: | Reaction Kettle |
| After-sales Service Provided: | Video Technical Support,Field Maintenance And Repair Service | Application: | New Material Synthesis |
| Voltage: | 220V/50HZ ( Customizable As Clients' Region) | Vacuum Degree: | 0.098mpa |
| High Light: | high pressure glass reactor,borosilicate glass reactor |
||

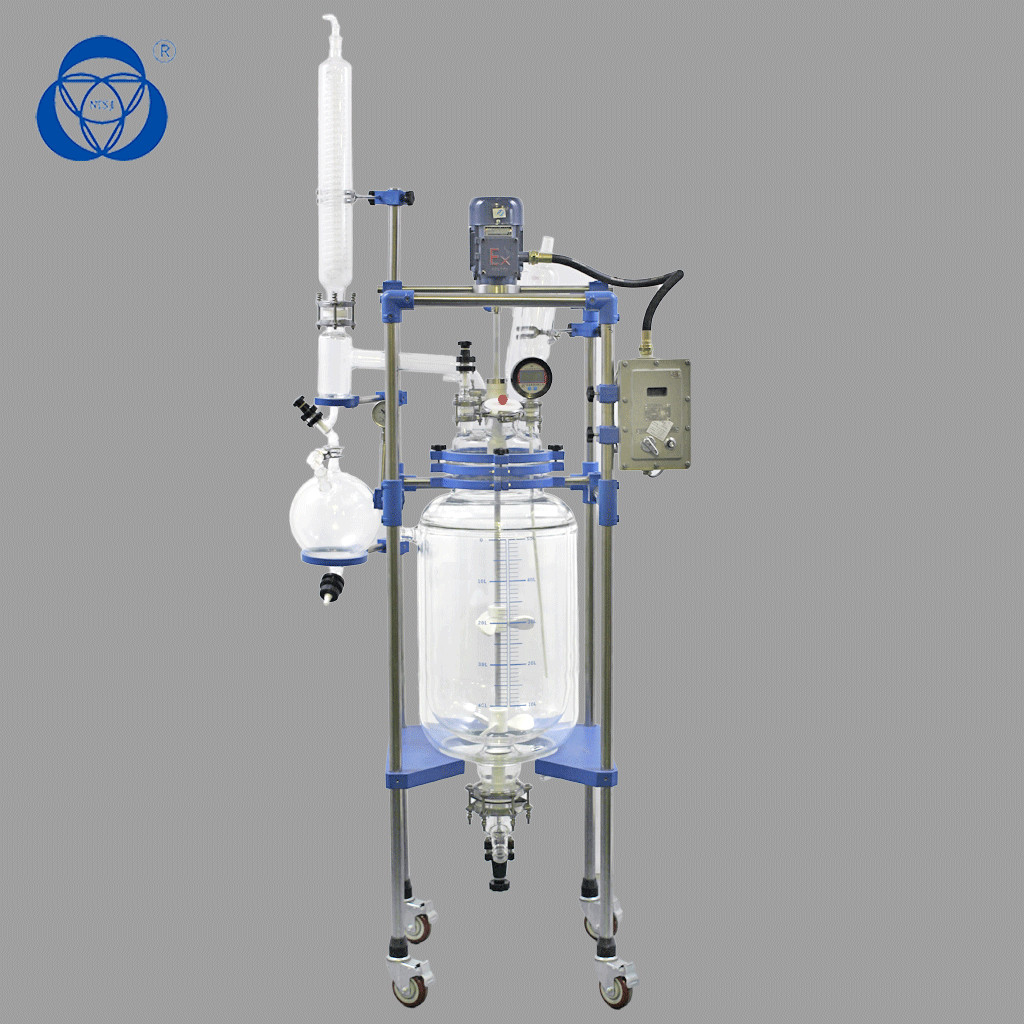

The glass reactor systems are the essential equipment for mixing, reaction, distillation and filtration in chemistry and pharmaceutical industries.
We offer a wide range of glass reactors with volumes from 250mL to 250L. They are electrical or air-driven, desktop or floor-stand, with or without filter base.
| Product Model | PGR-3 | PGR-5 | PGR-10 | PGR-30 | PGR-50 | PGR-100 | PGR-200 |
| Volume(L) | 3 | 5 | 10 | 30 | 50 | 100 | 200 |
| Neck No.on Cover | 4 | 5 | 6 | 6 | 6 | 6 | 6 |
| External Diameter of Inner Vessel(mm) | 150 | 180 | 230 | 330 | 365 | 460 | 600 |
| External Diameter of Outer Vessel(mm) | 200 | 230 | 290 | 365 | 410 | 500 | 650 |
| Cover Diameter(mm) | 150 | 180 | 265 | 265 | 265 | 340 | 340 |
| Vessel Height(mm) | 300 | 400 | 450 | 730 | 850 | 950 | 1200 |
| Motor Power(W) | 40 | 60 | 140 | 140 | 140 | 250 | 750 |
| Vacuum Degree(Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
| Rotation Speed(rpm) | 50-1400 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
| Torque(Nm) | 0.27 | 0.95 | 2.23 | 2.23 | 2.23 | 3.98 | 6.37 |
| Power(V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Dimension(mm) | 320*350*900 | 450*450*1200 | 650*650*1900 | 700*500*2100 | 800*600*2300 | 1000*700*2700 | 1200*900*3200 |
Customizable
Glass(PTFE)discharge valve, non-dead angle mixing, fast emptying, no residue.
Double cylinder; kettle cover is separated from kettle body. It is convenient to disassemble, clean and install.
High-borosilicate glass with nice physical-chemical properties; Resistant to strong acidic properties of materials; only touching with glass parts & PTFE, no cross-contamination.
Stirring adopts to mechanical sealing, it keeps higher vacuum degree among the same products in the market. It also keeps high vacuum degree when stirring.
Packaging
- Export plywood case or carton.
- Both neutral and customized packaging are available.
Shipping
- Usually we ship the goods by International Express such as DHL, TNT, EMS, FedEX and UPS for small volume goods, and ship the big volume goods by air or ocean.
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument. We are a professional supplier. We work hard to provide high quality and low cost laboratory products to our customers in universities, research labs and production facilities
Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.
Advantage of us is customize according to client need. We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, new material, noble material.
Customizable
Our technical experts are always willing to assist customers over phone, e-mail or chat on specific problems related to Rotary Evaporators operation and maintenance. We also have a qualified team of engineers to assist customers in their process related problems.
We provide price and high-quality assured.
