| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packaged in wooden case. |
| Delivery Period: | within 5 days after payemnt received |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 500 sets/momth |

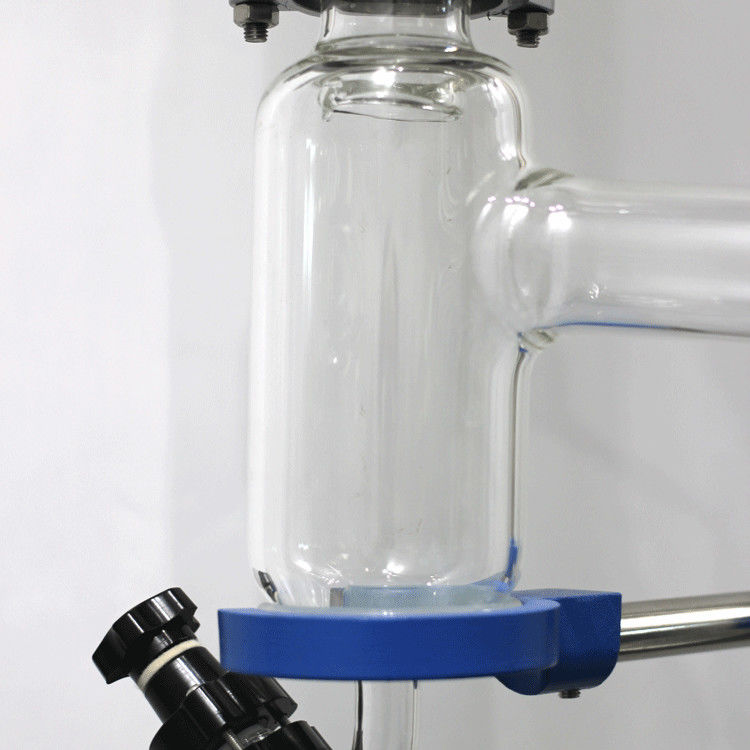

The material in the reaction kettle is heated or cooled by constant temperature (high temperature or low temperature), hot solution or cooling liquid through the interlayer of the double layer reactor and can be provided with agitation. The material in the reactor for reaction, evaporation and reflux, and can control the reaction solution after the reaction, the material can be discharged from the discharging port of the bottom, the operation is very convenient. It is the ideal equipment for the synthesis of modern chemical laboratory, petrochemical industry, medium sample experiment, biological pharmacy and new material.
| Product Model | PGR-3 | PGR-5 | PGR-10 | PGR-30 | PGR-50 | PGR-100 | PGR-200 |
| Volume(L) | 3 | 5 | 10 | 30 | 50 | 100 | 200 |
| Neck No.on Cover | 4 | 5 | 6 | 6 | 6 | 6 | 6 |
| External Diameter of Inner Vessel(mm) | 150 | 180 | 230 | 330 | 365 | 460 | 600 |
| External Diameter of Outer Vessel(mm) | 200 | 230 | 290 | 365 | 410 | 500 | 650 |
| Cover Diameter(mm) | 150 | 180 | 265 | 265 | 265 | 340 | 340 |
| Vessel Height(mm) | 300 | 400 | 450 | 730 | 850 | 950 | 1200 |
| Motor Power(W) | 40 | 60 | 140 | 140 | 140 | 250 | 750 |
| Vacuum Degree(Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
| Rotation Speed(rpm) | 50-1400 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
| Torque(Nm) | 0.27 | 0.95 | 2.23 | 2.23 | 2.23 | 3.98 | 6.37 |
| Power(V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Dimension(mm) | 320*350*900 | 450*450*1200 | 650*650*1900 | 700*500*2100 | 800*600*2300 | 1000*700*2700 | 1200*900*3200 |
Customizable
This product explosion-proof frequency conversion governor for speed, temperature double digital display (can display the temperature inside the kettle). The speed can be set by speed, screw and torsion, which is convenient and convenient. Besides, the temperature measuring probe (PT100) in the kettle is also equipped.
The whole structure is compact and reasonable, equipped with brake universal wheel, which can move in whole and easy to operate.
No dead angle glass discharge valve, can effectively reduce the dead angle of mixing, convenient discharge.
This product has a vacuum display function, high boiling material can choose the best operating vacuum.
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument. We are a professional supplier. We work hard to provide high quality and low cost laboratory products to our customers in universities, research labs and production facilities
Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.
Advantage of us is customize according to client need.
Customizable
Efficient and Safe Transportation
We have good cooporation with leading international shipping companies such as DHL/UPS/FedEx/TNT to provide various sea shipping and air shipping options.After we received the payment, we can ship them within 3 days.
Strict packing process to ensure the safty and completeness of the goods.
Great Customer Service
We provide professional Pre-sale,sale,after sale Service for every customer.
Video
Video
|
|
