Essential Oil Extraction Jacketed Glass Reactor Vessel Single Layer Wide Temp Range
  • name
  • name
  • name
  • name
  • name

Essential Oil Extraction Jacketed Glass Reactor Vessel Single Layer Wide Temp Range

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets/momth
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
FPGR-3
Volume:
1/2/3/5/10/20/30/50/100/200L
Vacuum Degree:
-0.098mpa
Warranty:
12Months
Product Name:
Jacketed Glass Filter
Dimension(l*w*h):
Ordered Equipment
Application:
New Material Synthesis
After-sales Service Provided:
Field Maintenance And Repair Service
Voltage:
Customizable As Clients' Region
Highlight:

high pressure glass reactor

,

borosilicate glass reactor

Product Description

Glass Reactor

All the glass reactor systems can be modified in our own factory quickly (dimension, motor power, explosion proof, additional glassware, customize port size, etc).



For preventing danger, all electrical components can be upgraded to comply with explosion proof requirements. If necessary, air-driven motors are available upon request.




Product Model PGR-3 PGR-5 PGR-10 PGR-30 PGR-50 PGR-100 PGR-200
Volume(L) 3 5 10 30 50 100 200
Neck No.on Cover 4 5 6 6 6 6 6
External Diameter of Inner Vessel(mm) 150 180 230 330 365 460 600
External Diameter of Outer Vessel(mm) 200 230 290 365 410 500 650
Cover Diameter(mm) 150 180 265 265 265 340 340
Vessel Height(mm) 300 400 450 730 850 950 1200
Motor Power(W) 40 60 140 140 140 250 750
Vacuum Degree(Mpa) 0.098 0.098 0.098 0.098 0.098 0.098 0.098
Rotation Speed(rpm) 50-1400 50-600 50-600 50-600 50-600 50-600 50-600
Torque(Nm) 0.27 0.95 2.23 2.23 2.23 3.98 6.37
Power(V) 220 220 220 220 220 220 220
Dimension(mm) 320*350*900 450*450*1200 650*650*1900 700*500*2100 800*600*2300 1000*700*2700 1200*900*3200



Main features

Customizable

Optional multi-layer stirring blades for optimal reaction results.Wide range of temperature operations, from -110°F to 400°F.Large condenser cooling surface for exceptional condensation performance.Rugged stainless steel reinforced PTFE stirrer with anchored agitator, suitable for a wide range of viscous materials.Easily visual operation with digital speed and temperature displays.

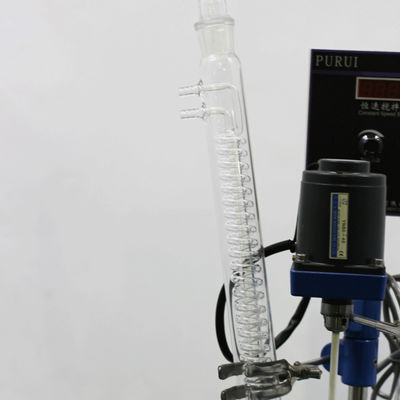

Essential Oil Extraction Jacketed Glass Reactor Vessel Single Layer Wide Temp Range 0

Our factory

Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument.



Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching America, Mexico, India, Turkey, Germany and Norway. Besides this, we also build the relationship with more than 10 oversea agents.

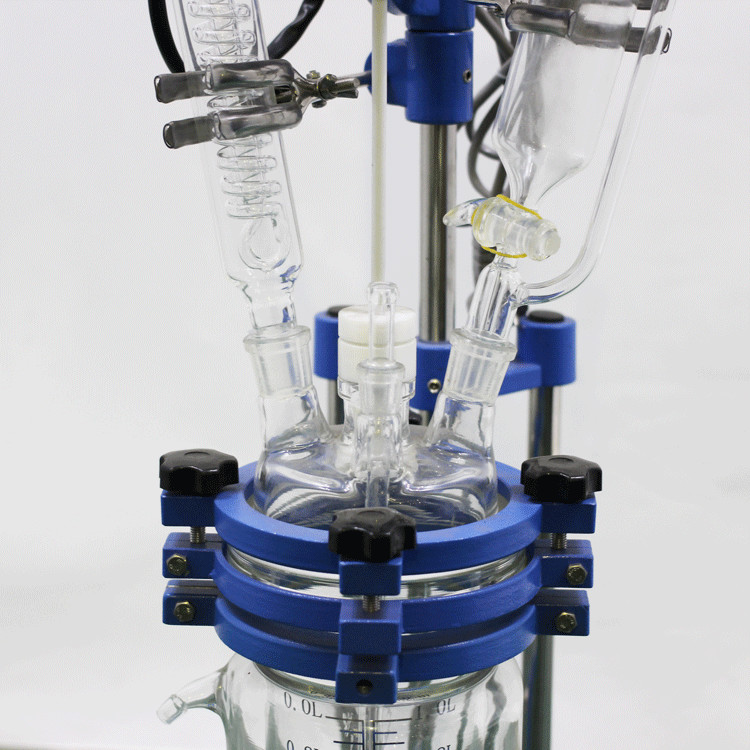

Essential Oil Extraction Jacketed Glass Reactor Vessel Single Layer Wide Temp Range 1

Our service

Customizable

How to ship the replacement parts?

We will choose the suitable shipping ways according the actual situation . For small parts we shipping by Express.

Could you do customized for us?

We can provide all kinds of customized services.

Are you manufacturer?

Yes. Sincerely welcome to visit our factory any time.
