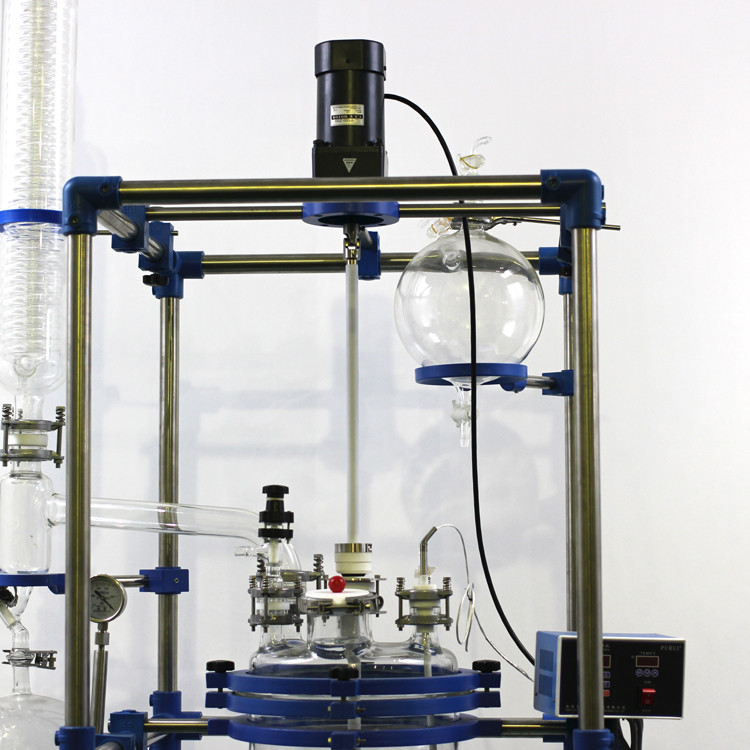

PTFE Sealing Jacketed Glass Reactor Vessel Thermostat Compounding Electricity Stirrer
  • name
  • name
  • name
  • name
  • name

PTFE Sealing Jacketed Glass Reactor Vessel Thermostat Compounding Electricity Stirrer

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets/momth
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
FPGR-50
Dimension(l*w*h):
As Per Model
Pipe Fitting Material:
304
Vacuum Degree:
-0.098mpa
Automatic Grade:
Semi-Automatic
Voltage:
220V/50Hz
Certification:
CE,ISO9001
Application:
Lab Stirring, Distillation
Type:
Lab Scale Pyrolysis
Weight:
68kg ~ 190kg
Highlight:

high pressure glass reactor

,

borosilicate glass reactor

Product Description

Glass Reactor

The jacketed glass reactor, is on the basis of the single-layer glass reactor, after years of improvement and production of new glass reactor.



Conveniently realize the high and low temperature as well as rapid heating up. It is a modern laboratory, chemical industry, pharmacy, new material synthesis, a necessary instrument.



Main features

AC induction motor, Digital display of mixing speed, frequency conversion, and constant speed mixing system, brushless, no spark, safe and stable.Rugged steel-reinforced PTFE stirrer with anchor agitator which is suitable for a wide range of material viscosity.PTFE discharge valve can discharge materials thoroughly and quickly.It can work under pressure and vacuum conditions, under vacuum of about 0.098MPa up to the stationary state.Ex-proof motor is optional for 10L,20L,30L,50L,100L,150L,200L.




Product Model

Volume(L)

Neck No.on Cover

External
Diameter of
inner Vessel(mm)

External
Diameter of
outer Vessel(mm)

Cover Diameter

Vessel Height(mm)

Motor Power(w)

Vacuum Degree(Mpa)

Rotation
Speed(rpm)

Torque(Nm)

Power(V)

Dimension(mm)
PGR-3
3
4
150
200
150
300
40
0.098
50-1400
0.27
220
320*350*900
PGR-10
10
6
230
265
450
140
0.098
50-600
2.23
220
650*650*1900
PGR-50
50
6
365
410
265
850
140
0.098
50-600
2.23
220
800*600*2300
PGR-100
100
6
460
500
340
950
250
0.098
50-600
3.98
220
1000*700*2700
PGR-200
200
6
600
650
340
1200
750
0.098
50-600
6.37
220
1200*900*3200

Product Details

PTFE Sealing Jacketed Glass Reactor Vessel Thermostat Compounding Electricity Stirrer 0

PTFE Sealing Jacketed Glass Reactor Vessel Thermostat Compounding Electricity Stirrer 1



Packing and delivery

Packing:
-Chemical compounding reaction kettle glass reactor glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packed in wooden cases.
-Both neutral and customized packaging can be available.
Shipping:
-Usually we ship the goods by one of three methods as below. You can choose the most appropriate one according to your timeline and budget. Shipping by your own shipping agent is acceptable.
By Express,By air to the airport,By air and dispatch

PTFE Sealing Jacketed Glass Reactor Vessel Thermostat Compounding Electricity Stirrer 2

Our factory

We are located in Nantong City, with convenient transportation access. 2 hours away drives from Shanghai. Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching America, Mexico, India, Turkey, Germany and Norway. Besides this, we also build the relationship with more than 10 oversea agents.

PTFE Sealing Jacketed Glass Reactor Vessel Thermostat Compounding Electricity Stirrer 3



Our services

Customizable

Customize design
According to different requirements different regions.provide professional customized design for your special demands

One-step service
Provide professional equipment and perfect solutions for your experiments

Competitive price
Direct factory price
Create profit-maximizing for you
