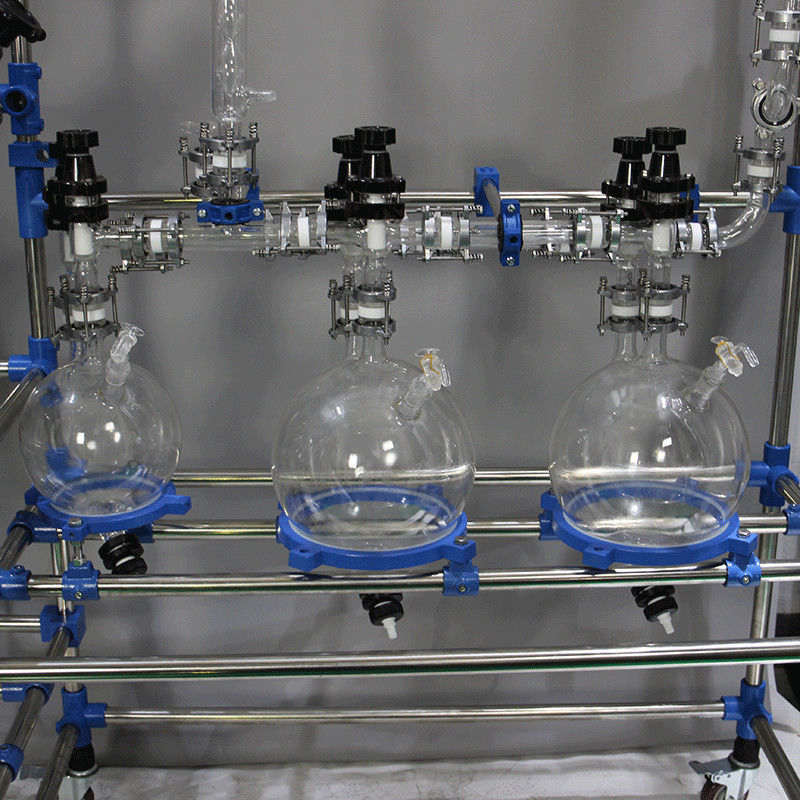

High Resolution 10l Short Path Distillation Kit Standard Interface Modular Design
  • name
  • name
  • name
  • name
  • name

High Resolution 10l Short Path Distillation Kit Standard Interface Modular Design

MOQ: 1 SET
Price: Negotiable
Standard Packaging: polywood case
Delivery Period: 20 working days
Payment Method: T/T, Western Union, L/C
Supply Capacity: 100 sets per month
Details Information
Product Description
Detail Information
Place of Origin
NANTONG,CHINA
Brand Name
NTSJ
Certification
ISO9001
Model Number
Short path distillation kit
Certification:
ISO9001,CE
Warranty:
1Year
Power Source:
Electric
Application:
Distillation
Sealing:
Main PTFE Seal
Dimension(l*w*h):
As Designed
After-sales Service Provided:
Online Support
Process:
Vacuum Distillation
Product Name:
Molecular Distillation
Condition:
New
Highlight:

essential oil distillation kit

,

chemistry distillation kit

Product Description

PRODUCT DESCRIPTION

It is a stilling method under high vacuum. The average free path of steam molecular is less than the distance between evaporating surface and condensing surface. Components in the mixing liquid will be separated according to different evaporating rate.





It is a special liquid-liquid separating technology. Its working principle is advanced more than traditional boiling point separating method. Supporting by this technology, our SPD series short path molecular distillation device is a high efficient plant essential oil refining equipment. It can help you get highly purified essential oil.



Model MD-80 MD-100 MD-150 MD-200
Feed Rate(kg/hr) 1.0-20 1.5-30 2.5-40 3.5-70
Estimate Throughput at End of 8-10 hr/day for CBD (kg) 8 12 20 28
Effective Evaporationn Area(m2) 0.1 0.15 0.25 0.35
Motor Power (W) 120 120 120 120
Maximum Speed(rpm) 350 350 350 350
Barrel Diameter (mm) 80 100 150 200
Feeding Funel Volume( L) 1 2 3 5
Dimension(DXWXH mm) 2120X1740X628 2120X1740X628 2270X1940X628 2420x2040x628
Internal Condenser Area(m) 0.2 0.3 0.4 0.5
Jacketed Feeding Vessel Volume ( L) 1 2 3 5
Distillate Receiving Vessel Volume(L) 1 2 5 5
Residue Receiving Vessel Volume(L) 1 1 3 5
Wiper PTFE scraper PTFE scraper PTFE scraper PTFE scraper

Features

Customizable

Molecular distillation system is composed of high borosilicate glass 3.3, stainless steel and PTFE, so it has excellent anti-corrosion ability.


The main part of the molecular distillation system is made of high borosilicate glass 3.3, and the whole operation process can be well observed.
The high precision distillation cylinder body enables the liquid to form a complete integrated film on the heating surface.The inner wall of the barrel body is smooth and bright, not easy to stick to the material and scaling.


Imported brand variable frequency speed reduction motor,safe and reliable in operation;equipped with self-cooling fan,it can continuous working for a long time.

High Resolution 10l Short Path Distillation Kit Standard Interface Modular Design 0

OUR FACTORY

High Resolution 10l Short Path Distillation Kit Standard Interface Modular Design 1

We are located in Nantong City, 2 hours away drives from Shanghai. Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching America, Mexico, India, Turkey, Germany and Norway. Besides this, we also build the relationship with more than 10 oversea agents.

SHIPPING AND PACKAGE

Wooden box with sufficient inner protection for short path distillation unit;



Besides,will buy insurance for every shipment by sea or by air.



High Resolution 10l Short Path Distillation Kit Standard Interface Modular Design 2

High Resolution 10l Short Path Distillation Kit Standard Interface Modular Design 3

Service

Customizable

We are a professional manufacturer which is specialized in designing, producing and selling.
We have obtained many patents at home and abroad, all of our products is being innovated all the time.
We are able to do ODM. We could do OEM business mode with customers and the packaging could be customized according to per customer’s requirement.



With advanced technology and high-end equipment.we do quality control before shipping to our customers.
Free 24-hour technical support

1 year complimentary warranty
Training how to install the machine
support:Free lifetime maintenance service and 24-hour


technical support:Reliable quality and thoughtful after sale service
