MOQ: | 1 set |
Price: | Negotiable |
Standard Packaging: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
Delivery Period: | within 5days after payemnt received |
Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Supply Capacity: | 500 sets/momth |

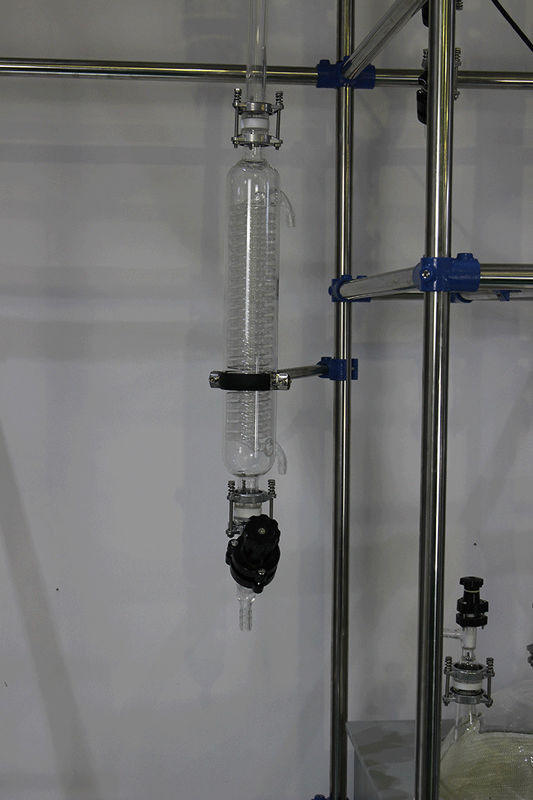

The glass reactor systems are the essential equipment for mixing, reaction, distillation and filtration in chemistry and pharmaceutical industries.
A jacketed vessel is a container that is designed for controlling temperature of its contents.
By using a cooling or heating "jacket" around the vessel through which a cooling or heating fluid is circulated.
The full transparent reaction process is an ideal test equipment for modern fine chemicals, new biochemicals research and development, pharmaceutical intermediates, precious metals purification, new graphene energy materials and aerospace materials. We keeps pace with the times, can provide the reaction kettle system from simple kettle to complex process. The product can be used with circulating water multipurpose vacuum pump, high and low temperature circulation device, one-stop matching, for your free expansion of the ideal choice of reaction synthesis.
Product Model | PGR-3 | PGR-5 | PGR-10 | PGR-30 | PGR-50 | PGR-100 | PGR-200 |
Volume(L) | 3 | 5 | 10 | 30 | 50 | 100 | 200 |
Neck No.on Cover | 4 | 5 | 6 | 6 | 6 | 6 | 6 |
External Diameter of Inner Vessel(mm) | 150 | 180 | 230 | 330 | 365 | 460 | 600 |
External Diameter of Outer Vessel(mm) | 200 | 230 | 290 | 365 | 410 | 500 | 650 |
Cover Diameter(mm) | 150 | 180 | 265 | 265 | 265 | 340 | 340 |
Vessel Height(mm) | 300 | 400 | 450 | 730 | 850 | 950 | 1200 |
Motor Power(W) | 40 | 60 | 140 | 140 | 140 | 250 | 750 |
Vacuum Degree(Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
Rotation Speed(rpm) | 50-1400 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
Torque(Nm) | 0.27 | 0.95 | 2.23 | 2.23 | 2.23 | 3.98 | 6.37 |
Power(V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
Dimension(mm) | 320*350*900 | 450*450*1200 | 650*650*1900 | 700*500*2100 | 800*600*2300 | 1000*700*2700 | 1200*900*3200 |
Customizable
A. Stirring blades
The blades are available in PTFE,stainless steel and can be clamped on the stirring shaft.
B. Vacuum Jacket
An additional vacuum jacket on the vessel can provide thermal insulation, get rid of frost and keep clear vision inside the vessel
C. Thermo-fluid port
We offer thermo- fluid ports in different forms (glass barb,stainless steel barb, flange, NPT thread, etc).
1.Strict packing process to ensure the safety and completeness of the goods.
2.Sufficient inner protection with different materials.
3.Qualified wooden package or carton for different products or as customer requirements
Advantage of us is customized according to client need. We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, new material, noble material.
We are located in Nantong City, with convenient transportation access. 2 hours away drives from Shanghai. Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.
How to solve the problem of your equipment?
Please send us email of the problem, pictures or a small video will be much better. we will find the problem and tell you how to solve it. If there is a broken, we will send you a new part and it is free in the period of warranty.
How to ship the replacement parts?
We will choose the suitable shipping ways according the actual situation . For small parts we shipping by Express.
Could you do customized for us?
We can provide all kinds of customized service.
