| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
| Delivery Period: | within 5days after payemnt received |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 500 sets/momth |

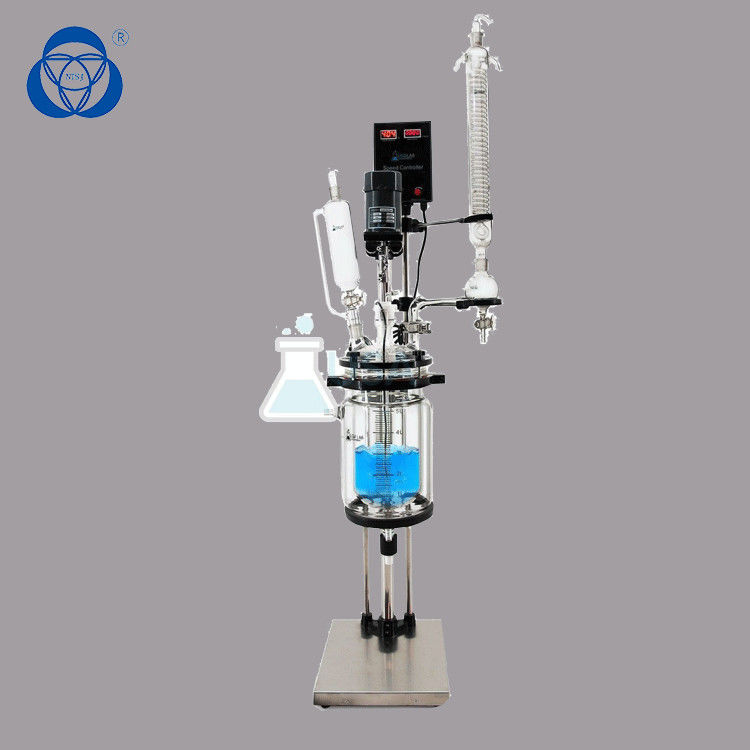

Jacketed glass reactor is mainly applied in Bio-chemical, Pharmaceutical & Fine-Chemical Trades.
It can be jointed with vacuum pump, chilling circulator , heating circulator is widely used in the process like Combination, Reaction, Separation,
Concentration, etc It is adopted in the industry of chemical products, advanced material synthesis experiment, etc.
| Product Model | PGR-3 | PGR-5 | PGR-10 | PGR-30 | PGR-50 | PGR-100 | PGR-200 |
| Volume(L) | 3 | 5 | 10 | 30 | 50 | 100 | 200 |
| Neck No.on Cover | 4 | 5 | 6 | 6 | 6 | 6 | 6 |
| External Diameter of Inner Vessel(mm) | 150 | 180 | 230 | 330 | 365 | 460 | 600 |
| External Diameter of Outer Vessel(mm) | 200 | 230 | 290 | 365 | 410 | 500 | 650 |
| Cover Diameter(mm) | 150 | 180 | 265 | 265 | 265 | 340 | 340 |
| Vessel Height(mm) | 300 | 400 | 450 | 730 | 850 | 950 | 1200 |
| Motor Power(W) | 40 | 60 | 140 | 140 | 140 | 250 | 750 |
| Vacuum Degree(Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
| Rotation Speed(rpm) | 50-1400 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
| Torque(Nm) | 0.27 | 0.95 | 2.23 | 2.23 | 2.23 | 3.98 | 6.37 |
| Power(V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Dimension(mm) | 320*350*900 | 450*450*1200 | 650*650*1900 | 700*500*2100 | 800*600*2300 | 1000*700*2700 | 1200*900*3200 |
The Applications In Laboratory
The glass reactor is applied in laboratory applications. For example, you will find the reactor used to test the reaction of different chemicals. It is common in chemical processing. Different ingredients are mixed after which the scientists will monitor their reaction in the glass reactor. It can be used in batch reactions to test the effectiveness of certain processes. It is widely used in distillation processes.
It is flexiable and can be customized! our wooden boxes are based on our customer requirements, product weights and size.
Our wooden box will not be heavy, but can protect all parts, the shipping cost will be better for you.
Q: Are you trading company or manufacturer?
A: We are professional manufacture of lab equipment and we have our own factory. We commit to be your professional, efficient and reliable partner.
Q: How long is your delivery time?
A: Generally it is within 7 working days after receiving 100% payment if the goods are in stock. Or it is 15 working days if the goods are not in stock, depending on order quantity.
Q: Do you provide samples? Is it free?
A: Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we will give you our best price including shipping cost.
|
|
