| Place of Origin: | NANTONG,CHINA |
|---|---|
| Brand Name: | Sanjing |
| Certification: | ISO9001 |
| Model Number: | FPGR-20 |
| Minimum Order Quantity: | 1 SET |
| Price: | Negotiable |
| Packaging Details: | polywood case |
| Delivery Time: | 5 working after receive your payment |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 1000 sets per month |
| Feature: | Customizable | Explosion Poof Or Not: | Yes |
|---|---|---|---|
| Stock: | In Stock | Size: | Customers' Requests |
| Motor Power: | 180W | Voltage: | 220V |
| Frame Part: | SS316 Or SS304 Spray Teflon | Application: | For Laboratory |
| High Light: | double jacketed glass reactor,single layer glass reactor,frequency control lab glass reactor |
||

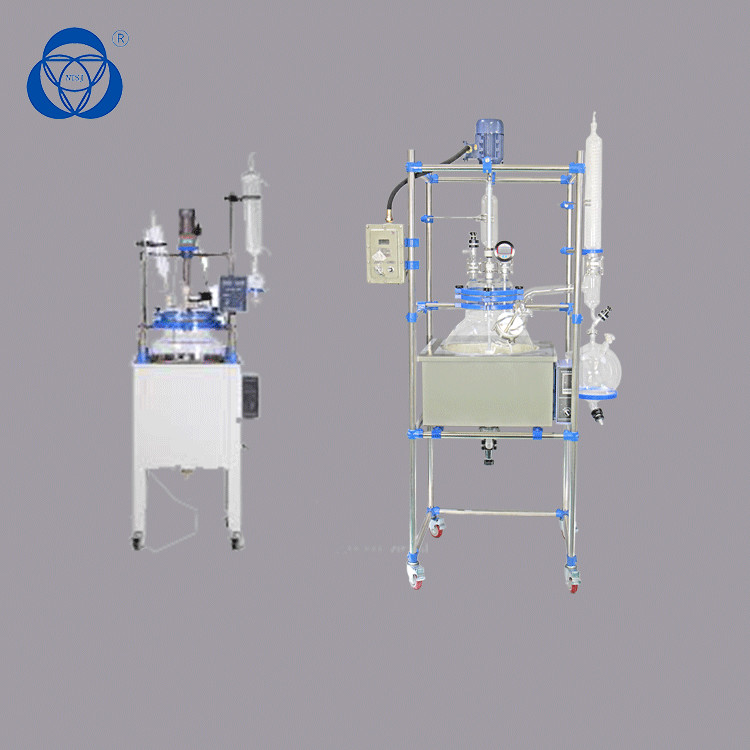

Main features
1. Frequency control, AC induction motor, speed digital display constant, brushless, no spark, safe and stable, it can work continuously;

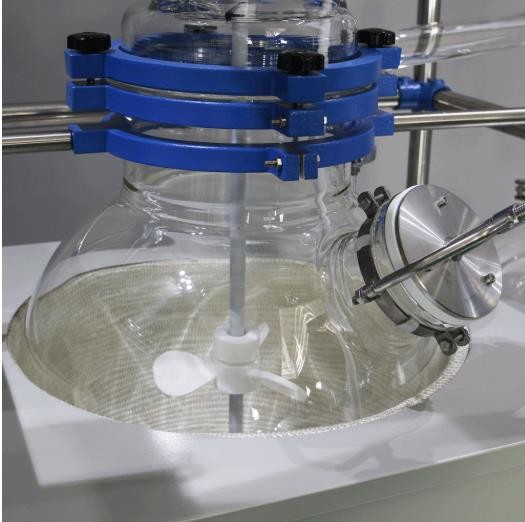

2. Supporting glass using GG17 high boron silicon material production, has a good chemical, physical properties; big bottle design, hand out cleaning;
3. PTFE (Ceramic) mechanical component sealing, proprietary technology, it can get the best vacuum degree in the market among the similar products;
4. Overall stainless steel frame structure (foot connecting parts like Tee and four-way valve are all stainless steel), compact and solid, stable and reliable without shaking when mixing;
5. Casters with brake fixed, it is convenient and reliable for mobile use;
6. The PTFE discharge valve without dead corner, solid material/liquid material can be easily released from the bottom;
7. Computer controlled thermostatic oil bath, the intelligent PID control, temperature control is accurate and convenient;
8. Integral structure is scientific design and beautiful appearance, convenient for operation;
9. Explosion-proof series available.
( We can add the cooling coil and an anti-explosion device according to user's needs)
| Product Model | FSPGR-20 |
| Volume(L) | 20 |
| Neck No.on Cover | 6 |
| External Diameter of Inner Vessel(mm) | 460 |
| External Diameter of Outer Vessel(mm) | 500 |
| Cover Diameter(mm) | 340 |
| Vessel Height(mm) | 950 |
| Motor Power(W) | 370 |
| Vacuum Degree(Mpa) | 0.098 |
| Rotation Speed(rpm) | 50-600 |
| Torque(Nm) | 5.89 |
| Power(V) | 220 |
| Dimension(mm) | 1000*700*2500 |
Strict packing process to ensure the safety and completeness of the goods
We have good cooperation with many international express companies, such as DHL/ UPS/ FedEx/ TNT and other, as well as large shipping companies providing air shipping and sea shipping.
We can also arrange global shipment as clients' requirements.
We are located in Nantong City, with convenient transportation access. 2 hours away drives from Shanghai. Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching America, Mexico, India, Turkey, Germany and Norway. Besides this, we also build the relationship with more than 10 oversea agents.
Q: What's the advantage of your glass reactor?
A: G3.3 high borosilicate glass is used, which can afford temp from -100℃~250℃ and anti corrosive.
Q: How many kinds of your glass reactor and what about the volume you can make?
A: Jacketed: 1L,2L,3L,5L, 10L, 20L, 30L, 50L, 80l,100L,150L,200L(Biggest one in China)
Single Wall: 1L,2L,3L,5L, 10L, 20L, 30L, 50L, 80l,100L,150L,200L,250L
Triple Wall: 1L,2L,3L,5L, 10L, 20L, 30L, 50L
Q: If we want to customize reactor system, it is available?
A: Sure, we are experienced at this, we have professional technical team, we can design the drawing according to your requirements and then produce it.
Q: Can you offer the supporting facilities?
A: Yes, we can offer you the vacuum pump, heating and cooling system as per your request.
Q: What kind of payment term do you accept?
A: Normally we accept TT, Western Union, L/C or Cash. The exact term with be discussed during the deal.
