Eco Friendly Glass Batch Reactor 304 Stainess Steel Frame Structure

Eco Friendly Glass Batch Reactor 304 Stainess Steel Frame Structure

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets/momth
Detail Information
Place of Origin
CHINA
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
FPGR-50
Feature:
Eco-Friendly
Neck No. On Lid:
Customized
Vacuum Degree:
-0.098mpa
Dimension(l*w*h):
Ordered Equipment
Certification:
CE/ISO
Glass Material:
High Borosilicate Glass
Frame Material:
Stainless Steel
Type:
Reaction Kettle
High Light:

borosilicate glass reactor

,

single layer glass reactor

,

stainess steel frame glass reactor

Product Description

Glass Reactor

A jacketed vessel is a container that is designed for controlling temperature of its contents.Different cold and hot circulating fluid (hot water / hot oil / freezing liquid) can be put into the layer of double glass reactor. In the sealed glass container, the reactants are stirred and distilled at normal pressure or negative pressure and can be used for various biochemical synthesis reactions under constant temperature conditions, and can also be reflux or distilled at different temperatures.



The reaction kettle covers different openings to realize the different effects of feeding, measuring temperature, recovering distillates and so

The glass reactor systems are the essential equipment for mixing, reaction, distillation and filtration in chemistry and pharmaceutical industries.



Product Model PGR-3 PGR-5 PGR-10 PGR-30 PGR-50 PGR-100 PGR-200
Volume(L) 3 5 10 30 50 100 200
Neck No.on Cover 4 5 6 6 6 6 6
External Diameter of Inner Vessel(mm) 150 180 230 330 365 460 600
External Diameter of Outer Vessel(mm) 200 230 290 365 410 500 650
Cover Diameter(mm) 150 180 265 265 265 340 340
Vessel Height(mm) 300 400 450 730 850 950 1200
Motor Power(W) 40 60 140 140 140 250 750
Vacuum Degree(Mpa) 0.098 0.098 0.098 0.098 0.098 0.098 0.098
Rotation Speed(rpm) 50-1400 50-600 50-600 50-600 50-600 50-600 50-600
Torque(Nm) 0.27 0.95 2.23 2.23 2.23 3.98 6.37
Power(V) 220 220 220 220 220 220 220
Dimension(mm) 320*350*900 450*450*1200 650*650*1900 700*500*2100 800*600*2300 1000*700*2700 1200*900*3200



Main features

Customizable

Multi-functional frequency control box.



Product Model is BET56-B. Ex-proof mark is ExdⅡT6/DIP A20 TA, T6. Ex-proof license number: CE12.1200.Ex-proof grade: IP66. Panel contains speed digital display window, speed control knobs, power indicator, power switch and inbuilt speed control converter.



Ex-proof motor: 220V 120W ex-proof motor.



Adopt 304 stainless steel tubes, aluminum sprayed chassis, flanges, connectors and nylon fasteners to assemble the column framework with movable brake casters and stainless steel made shock proof vacuum meter, the structure is steady and wise as well as the whole set is nice and durable, the whole set size is 650*650*1900mm.

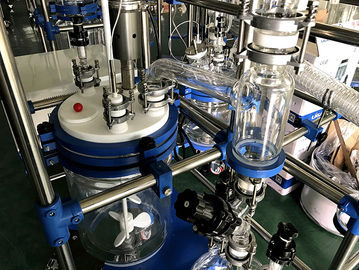

Eco Friendly Glass Batch Reactor 304 Stainess Steel Frame Structure 0



Packing and delivery

Wooden box packaging products parts and accessories,our wooden box will not be heavy, but can protect all parts.



Sufficient inner protection with different materials, including bubble bag, foam board and others.



Customizing the package according to the customer's request.

Eco Friendly Glass Batch Reactor 304 Stainess Steel Frame Structure 1

Our factory

Nantong Sanjing Chemglass Company summarize:Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument. Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.



Advantage of us is customize according to client need. We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, new material, noble material.

Eco Friendly Glass Batch Reactor 304 Stainess Steel Frame Structure 2

Our service

Customizable

Provide free technical advice.

Design proposals can be issued according to customer requirements.

The seller can provide detailed equipment parameters and configuration list.

The warranty period of the company's products is 12 months from the date of acceptance of the equipment (excluding glass fitings andconsumables);

If there are quality problems in the parts during the warranty period,the seller can provide free replacement of malfunction components;if the damage is due to human factors, when the parts need to bereplaced, the seller will provide the accessories and charge themaintenance cost according to the price.
