MOQ: | 1 SET |
Price: | Negotiable |
Standard Packaging: | polywood case |
Delivery Period: | 20 working days |
Payment Method: | T/T, Western Union, L/C |
Supply Capacity: | 100 sets per month |

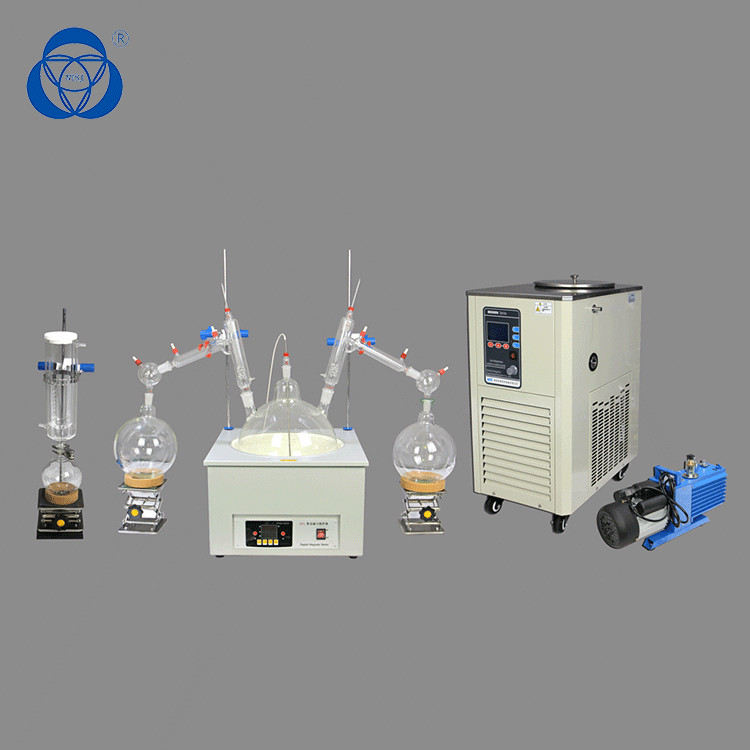

The Short Path Distillation with Vacuum Pump Heating System is an economical bench top-scale short path distillation kit, specifically assembled to compete with low-budget market options. When trying to separate compounds having a complete turn-key system which includes all stands, clamps, hoses, connectors, and accessories necessary to perform distillations efficiently and with ease is of importance.
Advantages of Short Path Distillation:
The advantage is that the heating temperature can be considerably lower (at reduced pressure) than the boiling point of the liquid at standard pressure, and the distillate only has to travel a short distance before condensing. A short path ensures that little compound is lost on the sides of the apparatus.
Model | MD-80 | MD-100 | MD-150 | MD-200 |
Feed Rate(kg/hr) | 1.0-20 | 1.5-30 | 2.5-40 | 3.5-70 |
Estimate Throughput at End of 8-10 hr/day for CBD (kg) | 8 | 12 | 20 | 28 |
Effective Evaporationn Area(m2) | 0.1 | 0.15 | 0.25 | 0.35 |
Motor Power (W) | 120 | 120 | 120 | 120 |
Maximum Speed(rpm) | 350 | 350 | 350 | 350 |
Barrel Diameter (mm) | 80 | 100 | 150 | 200 |
Feeding Funel Volume( L) | 1 | 2 | 3 | 5 |
Dimension(DXWXH mm) | 2120X1740X628 | 2120X1740X628 | 2270X1940X628 | 2420x2040x628 |
Internal Condenser Area(m) | 0.2 | 0.3 | 0.4 | 0.5 |
Jacketed Feeding Vessel Volume ( L) | 1 | 2 | 3 | 5 |
Distillate Receiving Vessel Volume(L) | 1 | 2 | 5 | 5 |
Residue Receiving Vessel Volume(L) | 1 | 1 | 3 | 5 |
Wiper | PTFE scraper | PTFE scraper | PTFE scraper | PTFE scraper |
Customizable
The cold trap protects the vacuum pump from contamination and damage of vapors
For organic chemistry labs, distillation, fractional distillation, separation, purification, and synthesis
Vacuum-jacketed distillation adaptor
It's under vacuum conditions, through constant heating
All flasks are made of 3.3 borosilicate glass
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument. Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.
We are located in Nantong City, with convenient transportation access. 2 hours away drives from Shanghai. Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching America, Mexico, India, Turkey, Germany and Norway. Besides this, we also build the relationship with more than 10 oversea agents.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationship with new clients around the world in the near future.
We have good cooperation with many international express companies, such as DHL/ UPS/ FedEx/ TNT and other, as well as large shipping companies providing air shipping and sea shipping.
We can also arrange global shipment as clients' requirements.
Customizable
Sample testing support.
View our Factory.
Inquiry and consulting support.
