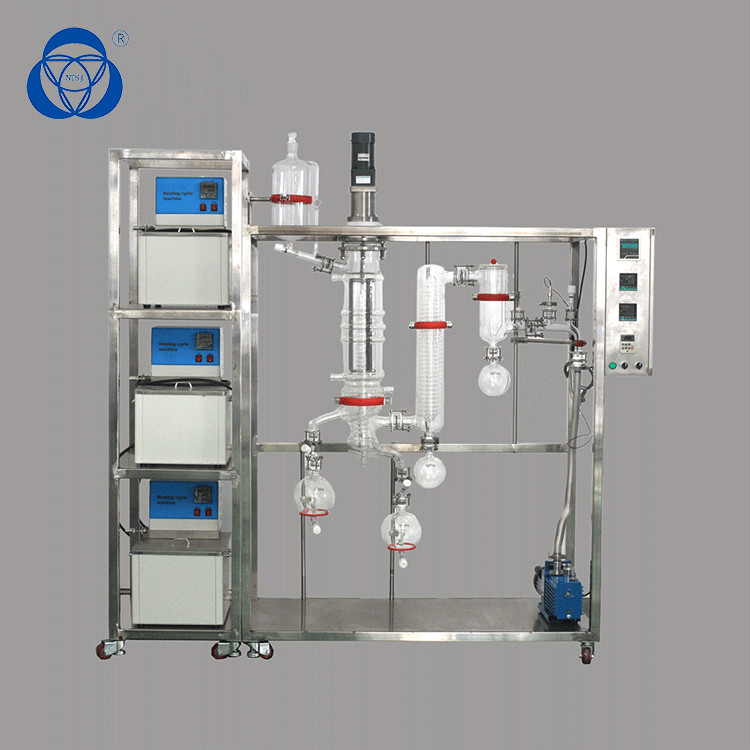

Turnkey Solution Short Path Distillation Kit Cbd Wiped Film 2l Corrosion Resistent

Turnkey Solution Short Path Distillation Kit Cbd Wiped Film 2l Corrosion Resistent

MOQ: 1 SET
Price: Negotiable
Standard Packaging: polywood case
Delivery Period: 20 working days
Payment Method: T/T, Western Union, L/C
Supply Capacity: 100 sets per month
Detail Information
Place of Origin
NANTONG,CHINA
Brand Name
NTSJ
Certification
ISO9001
Model Number
Short path distillation kit
Certification:
CE ISO . Etc
Condition:
New
Product Name:
Molecular Distillation
After-sales Service Provided:
Online Support
Process:
Vacuum Distillation
Sealing:
Main PTFE Seal
Power Source:
Electric
Warranty:
1 Warranty
Voltage:
220V/50HZ
Highlight:

essential oil distillation kit

,

chemistry distillation kit

Product Description


PRODUCT DESCRIPTION

Glass distiller is a distillation technique that involves the distillate travelling a short distance. It is a method of separating mixtures based on differences in their volatilities in a boiling liquid mixture under reduced pressure.

Molecular distillation is a distillation method operated under high vacuum, where the average free path of the vapor molecules is greater than the distance between the evaporating surface and the condensing surface.Thus, the liquid mixture can be separated by the difference of evaporation rate of each component in the feed liquid



Model MD-80 MD-100 MD-150 MD-200
Feed Rate(kg/hr) 1.0-20 1.5-30 2.5-40 3.5-70
Estimate Throughput at End of 8-10 hr/day for CBD (kg) 8 12 20 28
Effective Evaporationn Area(m2) 0.1 0.15 0.25 0.35
Motor Power (W) 120 120 120 120
Maximum Speed(rpm) 350 350 350 350
Barrel Diameter (mm) 80 100 150 200
Feeding Funel Volume( L) 1 2 3 5
Dimension(DXWXH mm) 2120X1740X628 2120X1740X628 2270X1940X628 2420x2040x628
Internal Condenser Area(m) 0.2 0.3 0.4 0.5
Jacketed Feeding Vessel Volume ( L) 1 2 3 5
Distillate Receiving Vessel Volume(L) 1 2 5 5
Residue Receiving Vessel Volume(L) 1 1 3 5
Wiper PTFE scraper PTFE scraper PTFE scraper PTFE scraper

Features

Customizable

According to the characteristics of molecular distillation technology, it has the following obvious advantages over conventional distillation technology in practical industrial application



(1) molecular distillation can remove the substances, such as organic solvent, odor, etc., which is a very effective method for the dissolution of liquid after solvent extraction;



(2) molecular distillation can selectively evaporate the target products, remove other impurities, and separate more than two substances at the same time through multistage separation;


(3) the fractionation process of molecular distillation is a physical process, so it can well protect separated substances from pollution and infringement.

OUR FACTORY

Turnkey Solution Short Path Distillation Kit Cbd Wiped Film 2l  Corrosion Resistent 0

We are located in Nantong City, with convenient transportation access. 2 hours away drives from Shanghai. Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.



Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching America, Mexico, India, Turkey, Germany and Norway. Besides this, we also build the relationship with more than 10 oversea agents.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationship with new clients around the world in the near future.

Turnkey Solution Short Path Distillation Kit Cbd Wiped Film 2l  Corrosion Resistent 1



SHIPPING AND PACKAGE

We are experienced in the whole packing and shipping process, and we will be responsible for any damage made during shipping and send clients replacements for free.



Sufficient inner protection with different materials, including bubble bag, foam board and others.

Qualified wooden package or carton for different products or as customer require

Strict packing process to ensure the safety and completeness of the goods



Turnkey Solution Short Path Distillation Kit Cbd Wiped Film 2l  Corrosion Resistent 2

Turnkey Solution Short Path Distillation Kit Cbd Wiped Film 2l  Corrosion Resistent 3

Service

Customizable

Quick response for detailed quotation and solutions according to clients' requirements.Confirm price, quantity, shipment, lead time and payment terms.

1 year complimentary warranty

Training how to install the machine and how to operate

Free 24-hour technical support

Engineers available to service machinery overseas
