Turnkey Solution Short Path Distillation Kit Herbal Extraction Equipment High Efficiency

Turnkey Solution Short Path Distillation Kit Herbal Extraction Equipment High Efficiency

MOQ: 1 SET
Price: Negotiable
Standard Packaging: polywood case
Delivery Period: 20 working days
Payment Method: T/T, Western Union, L/C
Supply Capacity: 100 sets per month
Detail Information
Place of Origin
NANTONG,CHINA
Brand Name
Sanjing
Certification
ISO9001
Model Number
Short path distillation kit
Glass Material:
High Borosilicate Glass 3.3
Dimension(l*w*h):
As Designed
Name:
Essential Oil Extraction Apparatus
Process:
Vacuum Distillation
Main Uses:
Industrial Distillation
Power Source:
Electric
Certification:
ISO, CE. Etc
Vacuum Degree:
-0.098 Mpa
Sealing:
Main PTFE Seal
Application:
Distillation
High Light:

essential oil distillation kit

,

chemistry distillation kit

,

herbal extraction short path distillation

Product Description



Turnkey Solution Short Path Distillation Kit Herbal Extraction Equipment High Efficiency

Product Description

Glass short-range molecular distillation is a special liquid-liquid separation technolofy,which is different from the traditional distillation based on the principle of boiling point difference separation.This is a process of distillation and purification of heat sensitive substances or substances with high boiling point by using the difference of the free path of the molecules of different substances in high vacuum. It is mainly used in chemical,pharmaceutical,petrochemical,perfume,plastic,oil and other industries.



Features

1. High quality and heavy duty Borosilicate 3.3 glass for durability
2. Vacuum-jacketed distillation adapter,3.5L heating mantle with magnetic stirring function, available in 110V or 220V.
3. Cold trap protects the vacuum pump from contamination and damage of vapors.
4. Flexible choice of vacuum pump.
5. Flexible choice of desktop high efficiency heater/chillers.
6. Customizable





Parameter



Part Description Specification Quantity
Round bottom flask for evaporation 10L, 3-neck, hand blown, 34/45 1
Short path distillation port Vacuum Jacketed, 34/45 2
Screw thermometer inlet adapter 24/40 1
Thermometer inlet adapter 14/20 2
Distillation Cow Receiver 2 1-to-1, 24/40 2
Round Bottom Flask for receiving 2000ml, 1-neck, hand blown, 34/35 2
Glass Funnel 4" opening, 24/40 1
Keck Clamp 1 24/40, Stainless Steel 1
Keck Clamp 2 24/40, Plastic 6
Keck Clamp 1 34/45, Stainless Steel 2
Hexagonal glass bottle stopper 14/20 2
Hexagonal glass bottle stopper 24/40 1
Cork Ring Stand for Flask 2 1pc 110mm,1pc 160mm 4
Silecone tubing 8x14mm 1
Stainless steel lab jak 1pc 15x15cm,1pc 20x20cm 2
Glass termometer 300 degree 2
Sealing gasket for screw thermometer inlet adapter 24/40 10
Clamp holder   2
Lab support stand   1
3-prong condenser clamp   2
Glass T adaper 3/8'' 2
Vacuum grease   1
1/2'' fiberglass insulating rope   10
Glass cold trap T-20 1
Desktop precise heater/chiller 15L, -5 to 95 degree centigrade 1
Rotary vane oil pump 8.4CFM(4L/S), 2-stage, 220 V 1

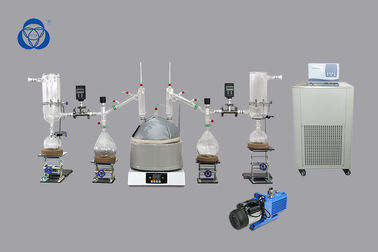

Turnkey Solution Short Path Distillation Kit Herbal Extraction Equipment High Efficiency 0

Our Factory

Turnkey Solution Short Path Distillation Kit Herbal Extraction Equipment High Efficiency 1Sanjing Chemglass is located in Nantong which is very convenient and only takes 2 hour-drive-away from Shanghai Airport. Sanjing Chemglass is the largest scale of production glass factory in China with over forty thousand square meters area. And we have over two hundred employees with high rate capacity utilization. The annual sales figure of Sanjing Chemglass has reached twenty million dollars.

Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee customer satisfaction. As a result of our high-quality products and outstanding customer service, we have formed global sales network including Russia, America, Switzerland, India, Paraguay, New Zealand, Netherlands, Thailand and South Africa. In addition, we also build the relationship with more than 10 overseas distributors.

SHIPPING AND PACKAGE

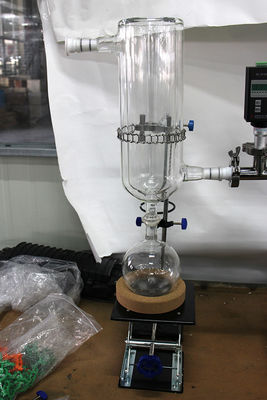

Turnkey Solution Short Path Distillation Kit Herbal Extraction Equipment High Efficiency 2

Turnkey Solution Short Path Distillation Kit Herbal Extraction Equipment High Efficiency 3

Before-Sales Service

※ Sample testing support.

※ View our Factory.

※ Inquiry and consulting support.

Customizable

After-Sales Service

※ Instruction vedeo
※ Available engineers service overseas
※ Instruction manual
