Nantong Sanjing Chemglass Co.,Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Sanjing |
| Certification: | CE,ISO9001 |
| Model Number: | FPGR-5 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
| Delivery Time: | within 5days after payemnt received |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/momth |
| Warranty: | 12 Year | Glass Material: | High Borosilicate Glass 3.3 |
|---|---|---|---|
| Product Name: | Jacketed Glass Reactor | Automatic Grade: | Automatic |
| Capacity: | 5L | Type: | Reaction Kettle |
| After-sales Service Provided: | Video Technical Support,Field Maintenance And Repair Service | Application: | New Material Synthesis |
| High Light: | Chemistry batch chemical reactor,5L batch chemical reactor,5L batch flow reactor |
||

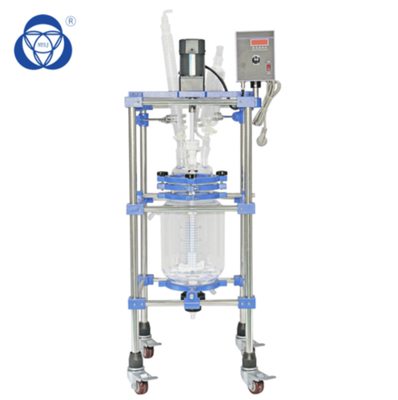

5L High Borosilicate Glass Stainless Steel Reaction Kettle With Reactor Agitator
Short Description:
- Multiple stage can be customized upon clients’ requests.
- electrical parts can be equipped with explosion-proof type
Main features
Seal Assembly
You need to seal the reactor vessel well so that you can regulate the pressure. In most cases, the 50L glass reactor will come with a seal assembly which plays a great role in ensuring the system has the perfect seal in place.
Discharge Value
After the reaction is over, you need to discharge the ingredients. The unit comes with a discharge valve which makes it possible to discharge the ingredients. You can count on the unit to achieve the best product discharge. There is a minimal mess due to the high-quality construction of the discharge unit.
Heating And Cooling System
There should be a way of heating and cooling the ingredients during the chemical reaction. The reactor has a unit that allows for effective cooling and heating of the ingredients.
|
Product Model |
FPGR-5 |
FPGR-10 |
FPGR-30 |
FPGR-50 |
|
Volume(L) |
5 |
10 |
30 |
50 |
|
Neck No.on Cover |
5 |
6 |
6 |
6 |
|
External Diameter of Inner Vessel(mm) |
180 |
230 |
330 |
365 |
|
External Diameter of Outer Vessel(mm) |
230 |
290 |
365 |
410 |
|
Cover Diameter(mm) |
180 |
265 |
265 |
265 |
|
Vessel Height(mm) |
400 |
450 |
730 |
850 |
|
Motor Power(W) |
120 |
120 |
180 |
180 |
|
Vacuum Degree(Mpa) |
0.098 |
0.098 |
0.098 |
0.098 |
|
Rotation Speed(rpm) |
50-600 |
50-600 |
50-600 |
50-600 |
|
Torque(Nm) |
1.9 |
1.9 |
2.86 |
2.86 |
|
Power(V) |
220 |
220 |
220 |
220 |
|
Dimension(mm) |
450*450*1200 |
650*650*1900 |
700*500*2100 |
700*500*2300 |
The reaction in the 5 liter glass reactor incorporates a lot of ingredients which make it easy for the engineers to determine the reaction of the ingredients under different applications. The glass reactor is in most cases made out of high-quality borosilicate glass which is resistant to chemical reactions. It can as well withstand high temperatures and pressure.
Product Details
Packing and delivery
Packaging
Export plywood case or carton.
Both neutral and customized packaging are available.
Shipping
Usually we ship the goods by International Express such as DHL, TNT, EMS, FedEX and UPS for small volume goods, and ship the big volume goods by air or ocean.
Our factory
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument. We are a professional supplier. We work hard to provide high quality and low cost laboratory products to our customers in universities, research labs and production facilities
Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.
Advantage of us is customize according to client need. We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, new material, noble material.
FAQ
1, Q: If we want to customize reactor system, it is available?
A: Sure, we are experienced at this, we have professional technical team, we can design the drawing according to your requirements and then produce it.
2,Q: Can you offer the supporting facilities?
A:Yes, we can offer you the vacuum pump, heating and cooling system as per your request.
3,Q: What kind of payment term do you accept?
A: Normally we accept TT, Western Union, L/C or Cash. The exact term with be discussed during the deal.
4,Q: How will you deliver these goods?
A: As your willing, we can deliver by air, by sea, by international express, freight cost will be at your expense.
5, Q: How will package glass equipment?
A:We package these glass equipment in good and Non fumigation standard wooden case.
