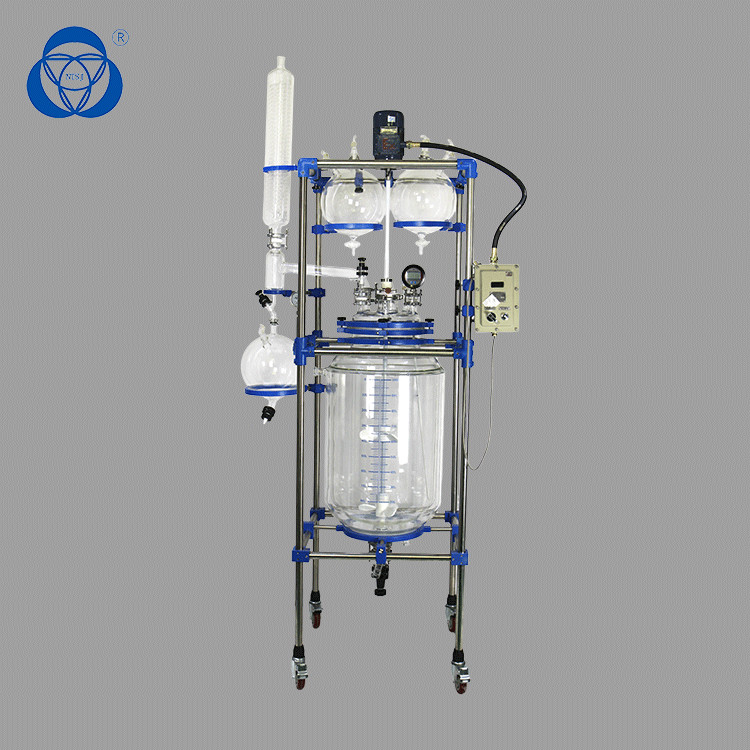

Essential Oil Extracting Chemical Glass Reactor 50l With Vertical Condenser

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets/momth
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
FPGR-50
Dimension(l*w*h):
Ordered Equipment
Type:
Reaction Kettle
Feature:
Eco-Friendly
Neck No. On Lid:
Customized
Frame Material:
Stainless Steel
Certification:
CE/ISO
Vacuum Degree:
-0.098mpa
Highlight:

double jacketed glass reactor

,

borosilicate glass reactor

,

essential oil extracting glass reactor

Product Description

Jacketed reactor

Jacketed glass reactor has been widely used in chemical reaction, combination, separation and concentration.



Product Model PGR-3 PGR-5 PGR-10 PGR-30 PGR-50 PGR-100 PGR-200
Volume(L) 3 5 10 30 50 100 200
Neck No.on Cover 4 5 6 6 6 6 6
External Diameter of Inner Vessel(mm) 150 180 230 330 365 460 600
External Diameter of Outer Vessel(mm) 200 230 290 365 410 500 650
Cover Diameter(mm) 150 180 265 265 265 340 340
Vessel Height(mm) 300 400 450 730 850 950 1200
Motor Power(W) 40 60 140 140 140 250 750
Vacuum Degree(Mpa) 0.098 0.098 0.098 0.098 0.098 0.098 0.098
Rotation Speed(rpm) 50-1400 50-600 50-600 50-600 50-600 50-600 50-600
Torque(Nm) 0.27 0.95 2.23 2.23 2.23 3.98 6.37
Power(V) 220 220 220 220 220 220 220
Dimension(mm) 320*350*900 450*450*1200 650*650*1900 700*500*2100 800*600*2300 1000*700*2700 1200*900*3200



Main features

Explosion-proof type is optional
Glass(PTFE)discharge valve, non-dead angle mixing, fast emptying, no residue.
Frequency control speed gear motor, smooth running,high torque, automatic booster, no spark, noise free, long life.
SUS frame and cast aluminum material kettle body support, elegant appearance, stable structure.

Circulating water/oil bath, high and low temperature machine can supply heating source; Cooling machine:cooling chiller,high and low temperature machine,convenient and practical

Customizable



Essential Oil Extracting Chemical Glass Reactor 50l With Vertical Condenser 0



Packing and delivery

Strict packing process to ensure the safety and completeness of the goods
Flexible and multiply shipping methods for on-time shipment:
We have good cooperation with many international express companies, such as DHL/ UPS/ FedEx/ TNT and other, as well as large shipping companies providing air shipping and sea shipping.



Essential Oil Extracting Chemical Glass Reactor 50l With Vertical Condenser 1Essential Oil Extracting Chemical Glass Reactor 50l With Vertical Condenser 2

Our factory

Nantong Sanjing Chemglass Company summarize:Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument. Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.

Advantage of us is customize according to client need. We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, maintenance.

Essential Oil Extracting Chemical Glass Reactor 50l With Vertical Condenser 3

Our service

Customizable

Provide free technical advice.

The seller can provide detailed equipment parameters and configuration list.

The warranty period of the company's products is 12 months from the date of acceptance of the equipment (excluding glass fitings andconsumables).

If there are quality problems in the parts during the warranty period,the seller can provide free replacement of malfunction components;if the damage is due to human factors, when the parts need to bereplaced, the seller will provide the accessories and charge themaintenance cost.
