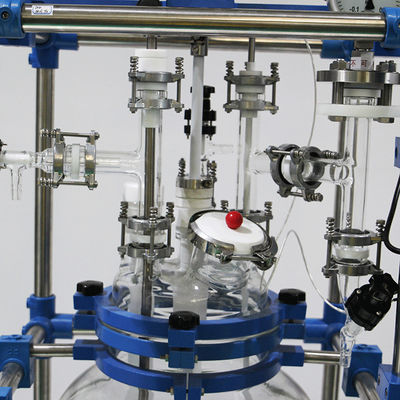

Borosilicate 3.3 Single Layer Glass Reactor Explosion Proof Design Safe Processing

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets/momth
Details Information
Product Description
Detail Information
Place of Origin
CHINA
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
FPGR-50
Feature:
Eco-Friendly
Type:
Reaction Kettle
Vacuum Degree:
-0.098Mpa
Neck No. On Lid:
Customized
Dimension(l*w*h):
Ordered Equipment
Frame Material:
Stainless Steel
Certification:
CE/ISO
Highlight:

double jacketed glass reactor

,

single layer glass reactor

,

borosilicate 3.3 glass chemical reactors

Product Description

Jacketed reactor

Jacketed glass reactor is popular as physical or chemical reaction vessel,through reaction vessel structure design and parameter configuration to achieve the process requirement of heating, evaporation, cooling and low-high-speed mixing function.


For laboratory research, double layer glass reactor is the idea reaction vessel to do new materials synthesis, mixing homogeneous reaction, extraction and purification, distillation and samples purification.



Product Model PGR-3 PGR-5 PGR-10 PGR-30 PGR-50 PGR-100 PGR-200
Volume(L) 3 5 10 30 50 100 200
Neck No.on Cover 4 5 6 6 6 6 6
External Diameter of Inner Vessel(mm) 150 180 230 330 365 460 600
External Diameter of Outer Vessel(mm) 200 230 290 365 410 500 650
Cover Diameter(mm) 150 180 265 265 265 340 340
Vessel Height(mm) 300 400 450 730 850 950 1200
Motor Power(W) 40 60 140 140 140 250 750
Vacuum Degree(Mpa) 0.098 0.098 0.098 0.098 0.098 0.098 0.098
Rotation Speed(rpm) 50-1400 50-600 50-600 50-600 50-600 50-600 50-600
Torque(Nm) 0.27 0.95 2.23 2.23 2.23 3.98 6.37
Power(V) 220 220 220 220 220 220 220
Dimension(mm) 320*350*900 450*450*1200 650*650*1900 700*500*2100 800*600*2300 1000*700*2700 1200*900*3200



Main features

1. PTFE flush discharge valve: No-sample accumulation in valve during operation and discharge.

2. Side discharge valve (standard or preload): No dead angle, air isolated discharge.

3. Glass reactor has through CE certification of latest EU standard

Customizable

Borosilicate 3.3 Single Layer Glass Reactor Explosion Proof Design Safe Processing 0

Packing and delivery

We are experienced in the whole packing and shipping process, and we will be responsible for any damage made during shipping and sending clients replacements for free.

Sufficient inner protection with different materials, including bubble bag, foam board and others.



Borosilicate 3.3 Single Layer Glass Reactor Explosion Proof Design Safe Processing 1Borosilicate 3.3 Single Layer Glass Reactor Explosion Proof Design Safe Processing 2

Our factory

Nantong Sanjing Chemglass Company summarize:Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument. Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.

Advantage of us is customize according to client need. We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, maintenance.

Borosilicate 3.3 Single Layer Glass Reactor Explosion Proof Design Safe Processing 3

Our service

Customizable

Professional consultation service on System Configuration,practical solution to meet user's real needs.
Lead time will be strictly controlled.

We are a professional manufacturer which is specialized in designing, producing and selling.

We always offer the reasonable price to our valued customers.

We provide professional pre-sale , sale, after-sale service for our valued customers.
