5l 10l 20l 50l Rotary Vacuum Evaporator For Essential Oil Distillation

5l 10l 20l 50l Rotary Vacuum Evaporator For Essential Oil Distillation

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets/momth
Detail Information
Place of Origin
CHINA, JIANGSU
Brand Name
Sanjing
Certification
CE,ISO9001
Model Number
FPGR-5
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Weight:
Depending
Vacuum Degree:
-0.096Mpa
Rotary Flask:
Customized Size
Warranty:
1 Year
Power Source:
Electric
Dimension(l*w*h):
Capacity
Process:
Vacuum Distillation
High Light:

rotary evaporator distillation

,

rotary vacuum film evaporator

,

20l rotary vacuum evaporator

Product Description

Vacuum Rotary evaporator

Rotary evaporators feature a simple and reliable modular design, making it one of the most reliable rotary evaporators in industry. Their open and straight-forward structure also makes them extremely easy to maintain and repair. Moreover, these evaporators are designed with various safety features (dry-heating shut off, over temperature protection, soft start of rotation, over-current protection).

We are able to customize the system to air-driven motor and steam-heated bath, which totally eliminate risks from electrical sparks.

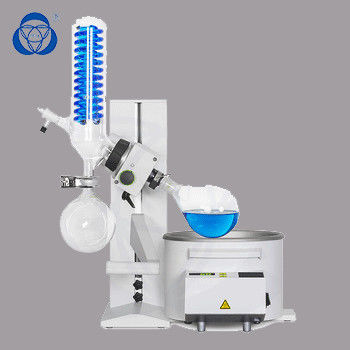

5l 10l 20l 50l Rotary Vacuum Evaporator For Essential Oil Distillation 0



The main components of a rotary evaporator are:
1. A motor unit that rotates the evaporation flask or vial containing the user's sample.
2. A vapor duct that is the axis for sample rotation, and is a vacuum-tight conduit for the vapor being drawn off the sample.
3. A vacuum system, to substantially reduce the pressure within the evaporator system.
4. A heated fluid bath (generally water) to heat the sample.
5. A condenser with either a coil passing coolant, or a "cold finger" into which coolant mixtures such as dry ice and acetone are placed.
6. A condensate-collecting flask at the bottom of the condenser, to catch the distilling solvent after it re-condenses.
7. A mechanical or motorized mechanism to quickly lift the evaporation flask from the heating bath.



Product model FPR-2 FPR-5 FPR-10 FPR-20 FPR-50 FPR-100
Evaporation Flask(L) 2L 5L 10L 20L 50L 100L
Receiving Flask(L) 1L 2L/3L 5L/50# 10L+5L 10L+10L 20L+30L
Motor Power(W) 40 90 120 120 180 370
Vacuum Degree(Mpa) 0.098 0.098 0.098 0.098 0.098 0.098
Rotation Speed(rpm) 10-180 10-90 5-100 5-110 5-110 5-110
Evaporation Speed(L/h) 1.2 2 3.5 5 8 15-18
Power(V) 220 220 220 220 220 220
Dimension(CM) 55×35×75 55×35×110 55×35×110 110×70×200 120×80×220 170×83×280

Features

1.All the wetted components are made of high quality boro 3.3 glass and PTFE, for excellent corrosion resistance.
2.High precision vacuum seal and vapor tube design leads to ultimate vacuum performance (1 mbar end vacuum, < 1 mbar/min vacuum leakage).
3.Modular and straight-forward structure for extremely easy maintenance.
4.High torque motor, high precision worm-gear gearbox and hand lift components for years of quiet and reliable operations.
5.Easy and straight forward operation of speed and temperature controller.
6.1-year hassle-free warranty and life-long parts and phone support.

Packing and delivery

5l 10l 20l 50l Rotary Vacuum Evaporator For Essential Oil Distillation 1
We have good cooperation with many international express companies, such as DHL/ UPS/ FedEx/ TNT and other

as well as large shipping companies providing air shipping and sea shipping.

Our factory


5l 10l 20l 50l Rotary Vacuum Evaporator For Essential Oil Distillation 2

We are located in Nantong City, with convenient transportation access. 2 hours away drives from Shanghai. Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.



Advantage of us is customize according to client need. We can provide relevant industry with design, manufacturing, equipment selection, instrument supporting, installation, debugging, maintenance. Our chemical glass instruments have been widely used in the fields of pharmaceuticals, chemicals, biological pharmacy, new material, noble material.



Services

Free 24-hour technical support
Reliable quality and thoughtful after sale service
1 year complimentary warranty
Quick response for detailed quotation and solutions according to clients' requirements.Confirm price, quantity, shipment, lead time and payment terms.
We are able to do ODM. We could do OEM business mode with customers and the packaging could be customized according to per customer’s requirement.
