| MOQ: | 1 set |
| Price: | Negotiable |
| Standard Packaging: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
| Delivery Period: | within 5days after payemnt received |
| Payment Method: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Capacity: | 500 sets/momth |

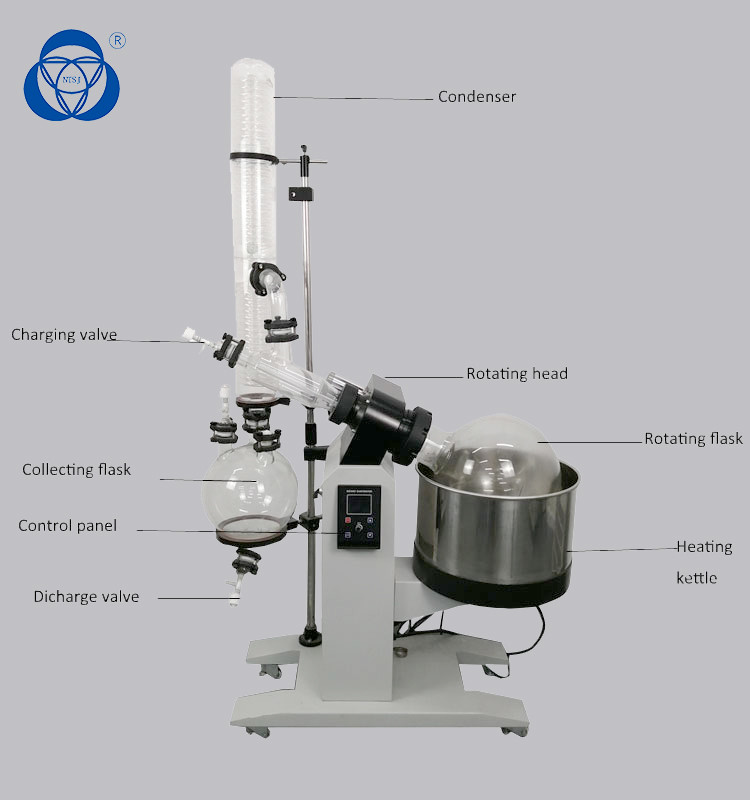

Rotary evaporator's principle is that under the vacuum condition, the constant temperature heats ,making the rotating bottle rotate at a constant speed, the material forms a large area of film on the bottle wall, and then solvent evaporates efficiently. The solvent vapor is cooled by the high efficiency glass condenser and recycled in the collection bottle, which greatly improves the evaporation efficiency.
It is especially suitable for the concentration and purification of biological products which are easy to decompose and denature at high temperature.
| Product model | FPR-2 | FPR-5 | FPR-10 | FPR-20 | FPR-50 | FPR-100 |
| Evaporation Flask(L) | 2L | 5L | 10L | 20L | 50L | 100L |
| Receiving Flask(L) | 1L | 2L/3L | 5L/50# | 10L+5L | 10L+10L | 20L+30L |
| Motor Power(W) | 40 | 90 | 120 | 120 | 180 | 370 |
| Vacuum Degree(Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
| Rotation Speed(rpm) | 10-180 | 10-90 | 5-100 | 5-110 | 5-110 | 5-110 |
| Evaporation Speed(L/h) | 1.2 | 2 | 3.5 | 5 | 8 | 15-18 |
| Power(V) | 220 | 220 | 220 | 220 | 220 | 220 |
| Dimension(CM) | 55×35×75 | 55×35×110 | 55×35×110 | 110×70×200 | 120×80×220 | 170×83×280 |
The glass parts will be wrapped with foam material,then put into the carton, all parts will be packed into wooden case finally; Customized packaging can be available.We can ship them by International Express such as DHL, UPS, TNT, EMS and so on, You can choose to use your own forwarder.
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument.Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.Advantage of us is customize according to client need.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationship with new clients around the world in the near future.
※ How to solve the problem of your equipment?
- Please send us email of the problem, pictures or a small video will be much better. we will find the
problem and tell you how to solve it. If there is a broken, we will send you a new part, and it is free in the warranty period.
※ Could you do customized for us?
- We are a manufacturer that can provide all kinds of customized services.
※ Warranty
- 1 year complimentary warranty
※ How to shipping the replacement parts?
- We will according the actual situation to choose the suitable shipping ways. For small parts we shippin by Express.
