University Lab Rotary Evaporator With Chiller And Vacuum Pump Mini Size
  • name
  • name
  • name
  • name
  • name

University Lab Rotary Evaporator With Chiller And Vacuum Pump Mini Size

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets/momth
Details Information
Product Description
Detail Information
Place of Origin
CHINA, JIANGSU
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
FPGR-5
Warranty:
12 Months
Weight:
Depending
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Power Source:
Electric
Dimension(l*w*h):
Capacity
Process:
Vacuum Distillation
Vacuum Degree:
0.096Mpa
Rotary Flask:
Customized Size
Highlight:

rotary vacuum flash evaporator

,

rotary evaporator distillation

Product Description

Vacuum Rotary evaporator

A rotary evaporator (or rotavap/rotovap) is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation.
Rotary evaporators are also used in molecular cooking for the preparation of distillates and extracts.
The main components of a rotary evaporator are:
1. A motor unit that rotates the evaporation flask or vial containing the user's sample.
2. A vapor duct that is the axis for sample rotation, and is a vacuum-tight conduit for the vapor being drawn off the sample.
3. A vacuum system, to substantially reduce the pressure within the evaporator system.
4. A heated fluid bath (generally water) to heat the sample.
5. A condenser with either a coil passing coolant, or a "cold finger" into which coolant mixtures such as dry ice and acetone are placed.
6. A condensate-collecting flask at the bottom of the condenser, to catch the distilling solvent after it re-condenses.
7. A mechanical or motorized mechanism to quickly lift the evaporation flask from the heating bath.

Features


Product Model

Evaporation Flask

Receiving Flask

Motor Power(w)

Bath Power

Rotation Speed

Evaporation Speed(L/h)

Power(V)

Dismension(cm)
PR-2
2L/29#
1L
40
1.5
10-180
1.2
220
55*35*75
PR-5
5L/50#
2L/3L
90
2
10-90
2
220
55*35*110
PR-10
10L/95#
5L
120
3
5-110
3.5
220
100*50*180
PR-20
20L/95#
10L+5L
120
5
5-110
5
220
110*70*200
PR-50
50L/125#
10L+10L
180
5
5-110
8
220
120*80*220


Rotary evaporator’s working principle is to rotate the glass flask which filled with materials under constant temperature heating, and the system connect to the negative pressure to low the boiling point, then liquid forms a film and evaporates,at last it recovers the menstruum by the glass coil condenser and receiving flask. It is specially applicable for the concentration, crystallization, separation and menstruum recovery of heat sensitive materials.

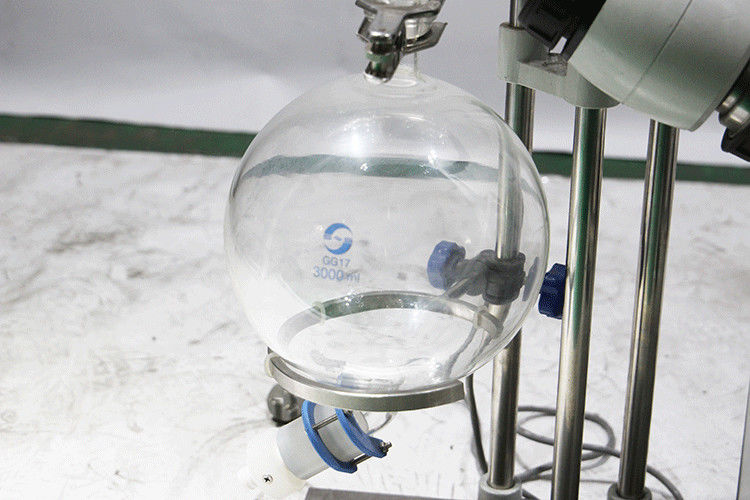

University Lab Rotary Evaporator With Chiller And Vacuum Pump Mini Size 0

Packing and delivery

University Lab Rotary Evaporator With Chiller And Vacuum Pump Mini Size 1
We have good cooperation with many international express companies, such as DHL/ UPS/ FedEx/ TNT and other

as well as large shipping companies providing air shipping and sea shipping.

Our factory


University Lab Rotary Evaporator With Chiller And Vacuum Pump Mini Size 2
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument. Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.


Services

We are a professional manufacturer which is specialized in designing, producing and selling.
Having obtained many patents at home and abroad, all of our products is being innovated all the time.
We are able to do ODM. We could do OEM business mode with customers and the packaging could be customized according to per customer’s requirement.
With advanced technology and high-end equipment.we do quality control before shipping to our customers.
Engineers available to service machinery overseas
