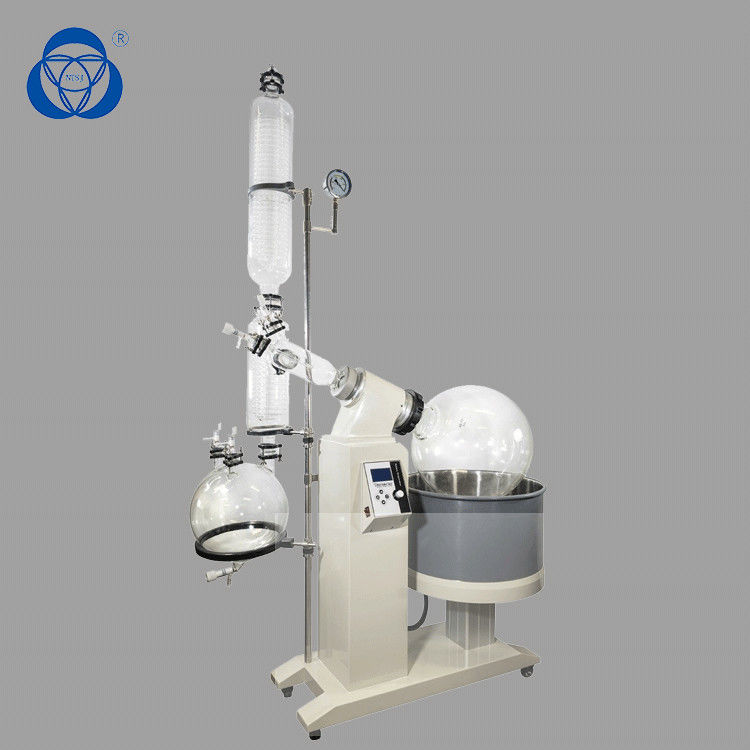

Industrial Rotary Vacuum Evaporator Essential Oil Distillation 220V Voltage

Industrial Rotary Vacuum Evaporator Essential Oil Distillation 220V Voltage

MOQ: 1 Set
Price: Negotiable
Standard Packaging: polywood case
Delivery Period: 5-7 work days
Payment Method: T/T, L/C, Western Union
Supply Capacity: 100 sets per month
Detail Information
Place of Origin
NANTONG,CHINA
Brand Name
NTSJ
Certification
ISO9001
Model Number
FPR-10
Motor Power:
180W
Rotary Flask:
10L
Receiver:
5L
Condition:
New
Warranty:
One Year
Process:
Vacuum Distillation,Rotary,Thermal,Evaporator
Material:
3.3 Borosilicate Glass
Voltage:
220V
High Light:

rotary evaporator distillation

,

rotary vacuum film evaporator

,

3.3 Borosilicate Glass Vacuum Evaporator

Product Description

Vacuum Rotary evaporator

Adopt advanced frequency conversion and electronic speed regulation to ensure the stable working of motor and improve the evaporation and recovery rate.

Bath can be lift and vacuum feeding reduced the breakage of rotating glass flask. When evaporation under low boiling point, receiving bottle can be immersed into the ice bath to reduce the second evaporation.

Adopt Japanese Technology AC induction motor, variable speed, no brush, no spark, can work effectively for a long time.

Receiving flask use ball-milling mouth for connection, can remove easily and reach high performance sealing.

Adopt high temperature resistant, corrosion resistant and long-acting precision seals to ensure the gas tightness under high temperature, high negative pressure and strong corroding conditions when it is in dynamic sealing.

Chassis, bath pot, main bar, shaft of rotary evaporator are made of high qualified stainless steel, appearance is attractive and anti-corrosive.

Intelligent temperature control with digital display, can work with both water and oil bath, more widely used. Temperature fluctuation is only ±0.02 ℃. Evaporation is more stable and material can not be washed easily.

The series modular design on the whole set makes it extensible and easy to install, and more convenient to maintain.



Features

The centrifugal force and the frictional force between the wall of the rotating flask and the liquid sample result in the formation of a thin of warm solvent being spread over a large surface.
The forces created by the rotation suppress violently, unpredicted boiling/bumping.
Allows quick and gentle evaporation of solvents from most samples.
Low temperature and vacuum control also help in kerbing bumping/foaming during the evaporation process.




Product Model

Evaporation Flask

Receiving Flask

Motor Power(w)

Bath Power

Rotation Speed

Evaporation Speed(L/h)

Power(V)

Dismension(cm)
PR-2
2L/29#
1L
40
1.5
10-180
1.2
220
55*35*75
PR-5
5L/50#
2L/3L
90
2
10-90
2
220
55*35*110
PR-10
10L/95#
5L
120
3
5-110
3.5
220
100*50*180
PR-20
20L/95#
10L+5L
120
5
5-110
5
220
110*70*200
PR-50
50L/125#
10L+10L
180
5
5-110
8
220
120*80*220



Industrial Rotary Vacuum Evaporator Essential Oil Distillation 220V Voltage 0



Packing and delivery

The damage caused by the transportation problem shall be born by the seller.



We are experienced in the whole packing and shipping process, and we will be responsible for any damage made during shipping and sending clients replacements for free.



Qualified wooden package or carton for different products or as customer requirements.



Industrial Rotary Vacuum Evaporator Essential Oil Distillation 220V Voltage 1

Our factory

Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument.



Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching America, Mexico, India, Turkey, Germany and Norway. Besides this, we also build the relationship with more than 10 oversea agents.



Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.

Industrial Rotary Vacuum Evaporator Essential Oil Distillation 220V Voltage 2



Our services

Are you manufacturer?

Yes. Sincerely welcome to visit our factory any time.



Could you do customized for us?

We can provide all kinds of customized services.



Are you trading company or manufacturer?

We are professional manufacturer and we have our own factory.



Do you provide samples? Is it free?

Yes, we could offer the sample. Considering the high value of our products, the sample is not free, but we'll give you our best price including shipping cost.



How long is your delivery time?

Generally it is within 3 working days after receiving the payment if the goods are in stock. Otherwise, it is 5-10 working days.
