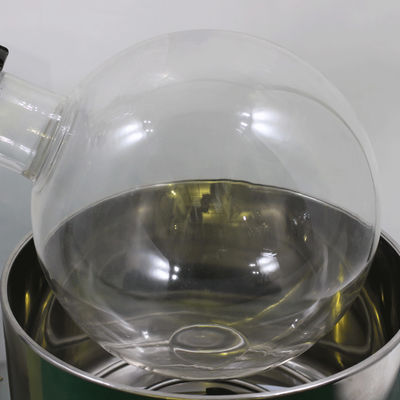

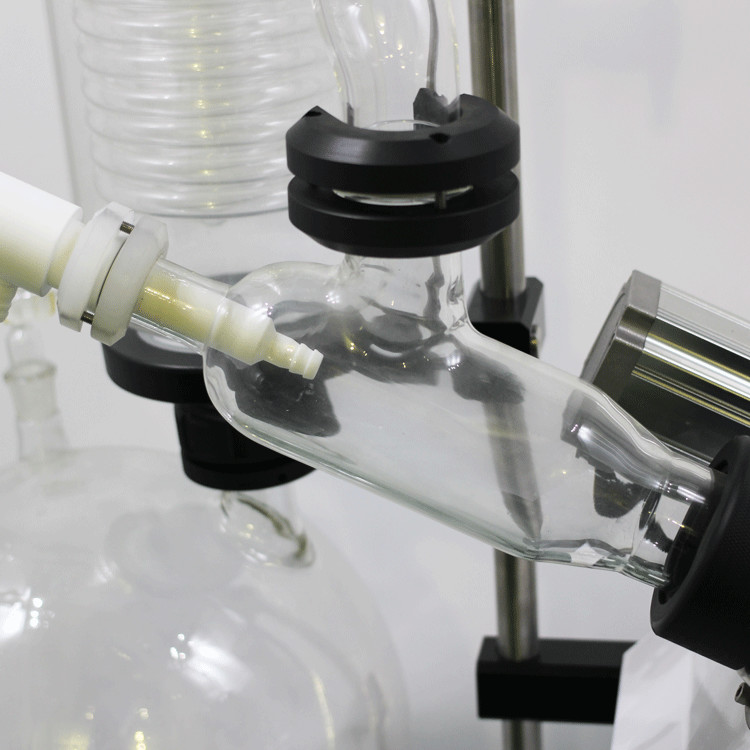

Small Miniature Rotary Vacuum Evaporator , 5l Rotary Evaporator Liquid Extraction

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets/momth
Details Information
Product Description
Detail Information
Place of Origin
CHINA, JIANGSU
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
PR-10
Dimension(l*w*h):
Capacity
After-sales Service Provided:
Engineers Available To Service Machinery Overseas
Warranty:
12 Months
Process:
Vacuum Distillation
Power Source:
Electric
Weight:
Depending
Rotary Flask:
Customized Size
Highlight:

rotary evaporator distillation

,

rotary vacuum film evaporator

Product Description

Vacuum Rotary evaporator

A rotary evaporator is a device used in Chemical Laboratories for efficient and gentle removal of solvents from samples by evaporation.



The main components of a rotary evaporator are:

heated fluid (water / thermic fluid) bath to heat the sample being evaporated.
condenser with double coil through which the coolant passes.
condensate collecting flask at the bottom of the condenser, to collect the distilling solvent after it recondenses.
mechanical or motorized mechanism to quickly lift the evaporation flask from the heating bath or lower the heating bath so that the evaporation flask does not remain in contact with bath.
motor unit which rotates the evaporation flask containing sample material.
vapour duct which acts as an axis for sample rotation, and a vacuum tight conduit for the vapour being drawn off of the sample.
vacuum system (not integral part of the equipment) to substantially reduce the pressure within the evaporator system.

Features


Product Model

Evaporation Flask

Receiving Flask

Motor Power(w)

Bath Power

Rotation Speed

Evaporation Speed(L/h)

Power(V)

Dismension(cm)
PR-2
2L/29#
1L
40
1.5
10-180
1.2
220
55*35*75
PR-5
5L/50#
2L/3L
90
2
10-90
2
220
55*35*110
PR-10
10L/95#
5L
120
3
5-110
3.5
220
100*50*180
PR-20
20L/95#
10L+5L
120
5
5-110
5
220
110*70*200
PR-50
50L/125#
10L+10L
180
5
5-110
8
220
120*80*220



1. Adopt advanced frequency converter and electronic speed regulator to ensure the stable working of motor and improve the evaporation and recovery speed.
2. Automatic bath lift and and vacuum feeding can help to reduce the breakage of rotary flask.
3. Receiving flask use ball-milling port for connection to ensure the high sealing, it also can be removed easily.
4. Use high temperature resistant, corrosion resistant and long-acting precision seals to ensure the gas tightness under high temperature, high negative pressure and strong corroding conditions when it is under dynamic sealing.

5. Adopt AC induction motor, variable speed, no brush, no spark, can work effectively for a long time.

6. Chassis, bath pot, main bar, shaft of rotary evaporator are made of high qualified stainless steel, appearance is attractive and anti-corrosive.

7. Intelligent temperature controller, can work with both water and oil bath, more widely used. Temperature fluctuation is only ±0.02 ℃. Evaporation is more stable and material can not be washed easily.

8. The series modular design on the whole set makes it extensible and easy to install, and more convenient to maintain.



Small Miniature Rotary Vacuum Evaporator , 5l Rotary Evaporator Liquid Extraction 0



Packing and delivery

Small Miniature Rotary Vacuum Evaporator , 5l Rotary Evaporator Liquid Extraction 1

We have good cooperation with many international express companies, such as DHL/ UPS/ FedEx/ TNT and other, as well as large shipping companies providing air shipping and sea shipping.

Our factory



Small Miniature Rotary Vacuum Evaporator , 5l Rotary Evaporator Liquid Extraction 2

We are a manufacturer and trader specialized in research, development and production of chemical glass instrument.





FAQ

Q1: Can you provide OEM or ODM service?

A1: Yes, we have strong developing team to support OEM and ODM service. The products can be made according to your request.

Q2: What's your MOQ?

A2: Any quantity is acceptable for your order. And the price is negotiable for large quantity.

Q3: What is your terms of delivery?

A3: FOB/ CIF /Door to Door/By air as you like.
