Nantong Sanjing Chemglass Co.,Ltd
| Place of Origin: | CHINA, JIANGSU |
|---|---|
| Brand Name: | Sanjing |
| Certification: | CE,ISO9001 |
| Model Number: | FPGR-50 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
| Delivery Time: | within 5days after payemnt received |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/momth |
| Condenser: | Vertical Condenser | Material: | Stainless Steel,High Borosilicate Glass |
|---|---|---|---|
| Rotary Flask: | Customized Size | Sealing: | PTFE Sealing,Main PTFE Seal |
| Process: | Thermal,Evaporator | Application: | Industrial Rotary Evaporator |
| Condition: | New | Vacuum Degree: | 0.098Mpa |
| High Light: | rotary evaporator distillation,rotary vacuum film evaporator,lab chemical distillation rotary evaporator |
||

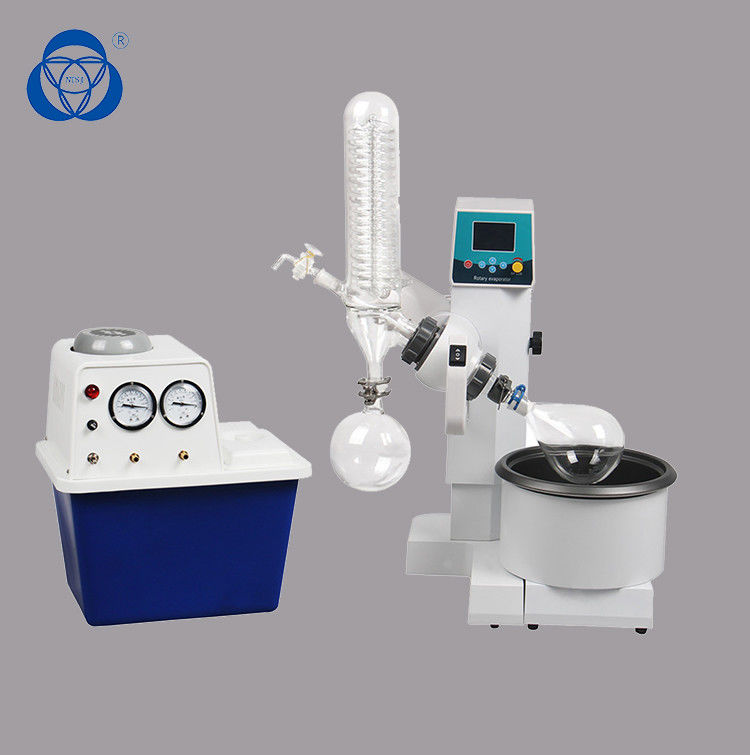

The lab chemical distillation rotary evaporator is a device used in chemical laboratories for the efficient and gentle removal of solvents from samples by evaporation. The process of rotary evaporation is most often used to separate solvents with low boiling points, such as n-hexane or ethyl acetate, from compounds which are solid at room temperature and pressure.
| Product model | FPR-5 | FPR-10 | FPR-20 | FPR-50 | FPR-100 |
| Evaporation Flask(L) | 5L | 10L | 20L | 50L | 100L |
| Receiving Flask(L) | 2L/3L | 5L/50# | 10L+5L | 10L+10L | 20L+30L |
| Motor Power(W) | 90 | 120 | 120 | 180 | 370 |
| Vacuum Degree(Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
| Rotation Speed(rpm) | 10-90 | 5-100 | 5-110 | 5-110 | 5-110 |
| Evaporation Speed(L/h) | 2 | 3.5 | 5 | 8 | 15-18 |
| Power(V) | 220 | 220 | 220 | 220 | 220 |
| Dimension(CM) | 55×35×110 | 55×35×110 | 110×70×200 | 120×80×220 | 170×83×280 |
Intelligent temperature controller, can work with both water and oil bath, more widely used. Temperature fluctuation is only ±0.02 ℃. Evaporation is more stable and material can not be washed easily.
The series modular design on the whole set makes it extensible and easy to install, and more convenient to maintain.
Adopt advanced frequency converter and electronic speed regulator to ensure the stable working of motor and improve the evaporation and recovery speed.
The glass parts will be wrapped with foam material,then put into the carton, all parts will be packed into wooden case finally; Customized packaging can be available.
The damage caused by the transportation problem shall be born by the seller.
We can also arrange global shipment as clients' requirements.
We are located in Nantong City, with convenient transportation access. 2 hours away drives from Shanghai. Covering an area of sixteen thousand square meters, now we have over one hundred employees, boast an annual sales figure that exceeds US dollars twenty million.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching America, Mexico, India, Turkey, Germany and Norway. Besides this, we also build the relationship with more than 10 oversea agents.
※ The period, scope and condition of the warranty?
1.1 We offer I years warranty on the date of shipping from China. During the warranty time, because of manufacturing quality problem, we offer replacement, maintenance service.
1.2 The damage caused by the transportation problem shall be borne by the seller.
※ What's your MOQ?
Any quantity is acceptable for your order. And the price is negotiable for large quantity.
※ What is your terms of delivery?
FOB/ CIF /Door to Door/By air as you like.
