Nantong Sanjing Chemglass Co.,Ltd
| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Sanjing |
| Certification: | CE,ISO9001 |
| Model Number: | PGR-20 |
| Minimum Order Quantity: | 1 set |
| Price: | Negotiable |
| Packaging Details: | The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case. |
| Delivery Time: | within 5days after payemnt received |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 500 sets/momth |
| Vacuum Degree: | -0.098mpa | Frame Material: | SUS 304 |
|---|---|---|---|
| Voltage: | 220v | After-sales Service Provided: | Field Maintenance And Repair Service |

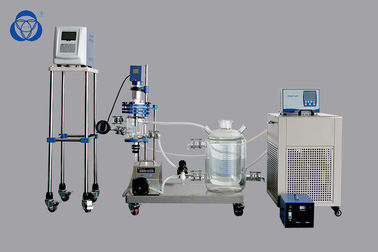

| Warranty: | 1 Year | Product Name: | Jacketed Glass Filter |
| Dimension(l*w*h): | Ordered Equipment | Application: | New Material Synthesis |
| Automatic Grade: | Automatic | ||
| High Light: | sus304 frame borosilicate glass reactor,double layer glass reactor vessels,30L jacketed glass reactor vessel |
||
| Product Model | PGR-3 | PGR-5 | PGR-10 | PGR-30 | PGR-50 | PGR-100 | PGR-200 |
| Volume(L) | 3 | 5 | 10 | 30 | 50 | 100 | 200 |
| Neck No.on Cover | 4 | 5 | 6 | 6 | 6 | 6 | 6 |
| External Diameter of Inner Vessel(mm) | 150 | 180 | 230 | 330 | 365 | 460 | 600 |
| External Diameter of Outer Vessel(mm) | 200 | 230 | 290 | 365 | 410 | 500 | 650 |
| Cover Diameter(mm) | 150 | 180 | 265 | 265 | 265 | 340 | 340 |
| Vessel Height(mm) | 300 | 400 | 450 | 730 | 850 | 950 | 1200 |
| Motor Power(W) | 40 | 60 | 140 | 140 | 140 | 250 | 750 |
| Vacuum Degree(Mpa) | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 | 0.098 |
| Rotation Speed(rpm) | 50-1400 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 | 50-600 |
| Torque(Nm) | 0.27 | 0.95 | 2.23 | 2.23 | 2.23 | 3.98 | 6.37 |
| Power(V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Dimension(mm) | 320*350*900 | 450*450*1200 | 650*650*1900 | 700*500*2100 | 800*600*2300 | 1000*700*2700 | 1200*900*3200 |
Customizable
Established in 2006, Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument.
We are a professional supplier. We work hard to provide high quality and low cost laboratory products to our customers in universities, research labs and production facilities.
We are a professional manufacturer which is specialized in designing, producing and selling.
We have obtained many patents at home and abroad, all of our products is being innovated all the time.
We are able to do ODM. We could do OEM business mode with customers and the packaging could be customized according to per customer’s requirement.
With advanced technology and high-end equipment.we do quality control before shipping to our customers.
We will train how to install the machine and how to operate"
Efficient and Safe Transportation
Customizable
