10L Borosilicate Jacketed Glass Vessel Explosion Proof 180W Motor Power

10L Borosilicate Jacketed Glass Vessel Explosion Proof 180W Motor Power

MOQ: 1 SET
Price: Negotiable
Standard Packaging: polywood case
Delivery Period: 5 working after receive your payment
Payment Method: T/T, Western Union, L/C
Supply Capacity: 1000 sets per month
Detail Information
Place of Origin
NANTONG,CHINA
Brand Name
NTSJ
Certification
ISO9001
Model Number
FPGR-10
Material:
Borosilicate Glass
Motor Power:
180W
Explosion Poof Or Not:
Yes
Voltage:
220V
Feature:
Customizable
Highlight:

jacketed glass vessel

,

double layer glass reactor

Product Description

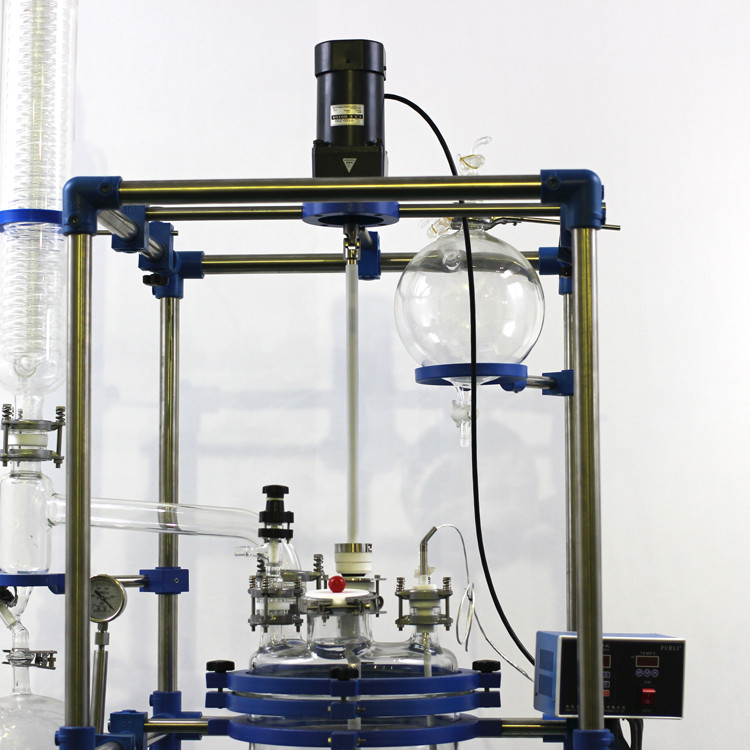

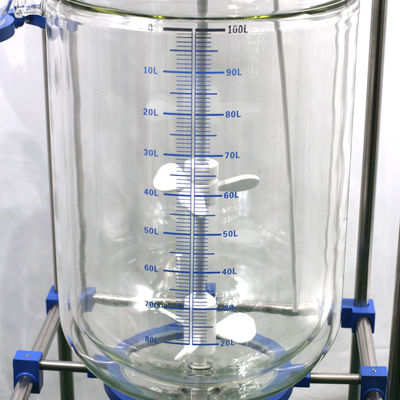

Glass reactor

This series glass reactor can be designed to be double glass reactor or three layers ofglass reactor. The inner layer adding the reactant to stirrer, jacketed layer can through theheating oil or coolant to do the distillation/cooled reaction. It takes reaction under Normal pressure or negative pressure and constant stirring.



It is mainly used for the process of combination, reaction, separation, concentration, etc. It is an ideal equipment for chemistry, finechemical, biopharmaceuticals, and the synthesis, test and production of new materials.

The reactor can be a system with circulating water vacuum pump, diaphragm vacuum pump,chiller /low temperature circulator, heating and heating and cooling circulating device.


Product Model

Volume(L)

Neck No.on Cover

External
Diameter of
inner Vessel(mm)

External
Diameter of
outer Vessel(mm)

Cover Diameter

Vessel Height(mm)

Motor Power(w)

Vacuum Degree(Mpa)

Rotation
Speed(rpm)

Torque(Nm)

Power(V)

Dimension(mm)
PGR-3
3
4
150
200
150
300
40
0.098
50-1400
0.27
220
320*350*900
PGR-10
10
6
230
265
450
140
0.098
50-600
2.23
220
650*650*1900
PGR-50
50
6
365
410
265
850
140
0.098
50-600
2.23
220
800*600*2300
PGR-100
100
6
460
500
340
950
250
0.098
50-600
3.98
220
1000*700*2700
PGR-200
200
6
600
650
340
1200
750
0.098
50-600
6.37
220
1200*900*3200

Main features

Customizable

PTFE rotary seal assembly; Patented product; High vacuum degree and long useful life.

PTFE discharge valve, discharge completely and quickly, no leak/pollution to the solvent.

High quality borosilicate glass 3.3 has good chemical-physical attribute.

Low speed booster motor; High torque; no spark; frequency control, smooth operation.

PTFE stirring paddle, suitable for low and high viscosity liquid stirring and mixing.

10L Borosilicate Jacketed Glass Vessel Explosion Proof 180W Motor Power 0

Packing & Delivery

Shipping by air.Airport to airport
Shipping time: 3-5 days arrive the airport.Advantage: Fast,Moderate price

Shipping by sea:Seaport to seaport

Shipping time: 10-55 days arrive the seaport(Please consult our staff at specific time)Advantage:Cheapest price,Large transport,

10L Borosilicate Jacketed Glass Vessel Explosion Proof 180W Motor Power 1







Our Company

10L Borosilicate Jacketed Glass Vessel Explosion Proof 180W Motor Power 2

Nantong Sanjing Chemglass Co . Ltd is one of largest professional manufacturers of chemical glass equipments in China.
The company specializes in design , production and manufacturing of biological and chemical testing instruments and pharmaceutical glass equipments , main products are : glass reactor series , rotary evaporator chemical glass pipes , glass condenser series , glass reaction devices series , bath pots series , heating circulator series , thermostatic bath series , cooling circulator series , constant speed stirrer , water circulation vacuum pumps , lab consumables and other products.

Our service

Customizable

OEM and ODM

We have strong developing team to support OEM and ODM service. The products can be made according to every customer’ requirement.

Efficient and Safe Transportation

We have good cooporation with leading international shipping companies such as DHL/UPS/FedEx/TNT to provide various sea shipping and air shipping options.After we received the payment, we can ship them within 3 days , it will need 4 to 6 days from Shanghai to your place by DHL express.

Strict packing process to ensure the safty and completeness of the goods.
