Auto Lifting Desktop Rotary Vacuum Evaporator With Water Bath
  • name
  • name
  • name
  • name
  • name

Auto Lifting Desktop Rotary Vacuum Evaporator With Water Bath

MOQ: 1 set
Price: Negotiable
Standard Packaging: The glass parts will be wrapped with foam, then put into the carton; the mainbody portion will be packde in wooden case.
Delivery Period: within 5days after payemnt received
Payment Method: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Capacity: 500 sets/momth
Details Information
Product Description
Detail Information
Place of Origin
CHINA, JIANGSU
Brand Name
NTSJ
Certification
CE,ISO9001
Model Number
FPGR-20
Warranty:
One Year
Process:
Evaporator
Dimension(l*w*h):
Capacity
Product Name:
Rotary Vacuum Evaporator
Sealing:
PTFE Sealing
Condition:
New
After-sales Service Provided:
Video Technical Support
Rotary Flask:
Custmized
Highlight:

rotary vacuum flash evaporator

,

rotary evaporator distillation

,

ptfe sealing mini rotary evaporator

Product Description

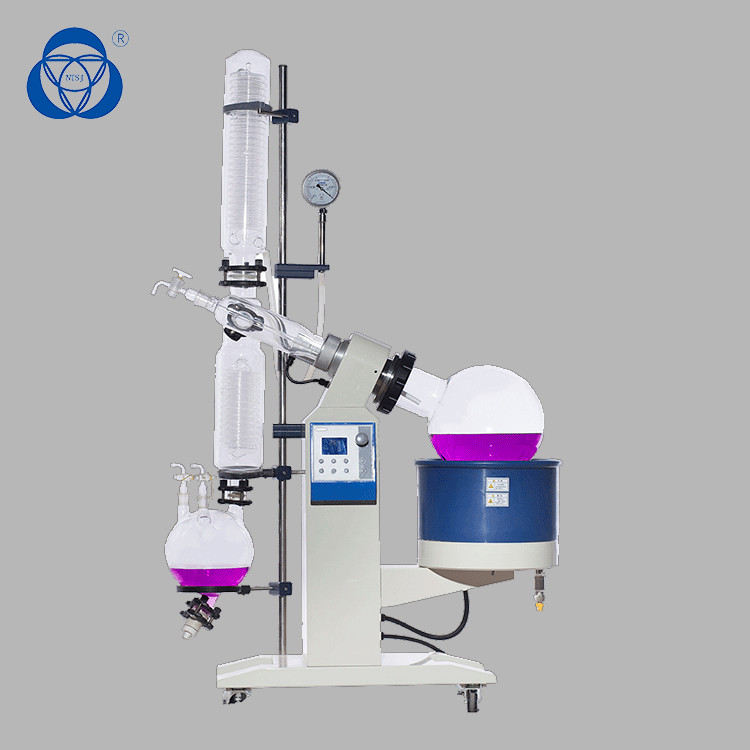

Vacuum Rotary evaporator

  Rotary evaporator is mainly used for concentration, crystallization, drying, separation and solvent recovery in pharmaceutical, chemical and biological pharmaceutical industries.



  It is suitable for reflux operation, rapid evaporation of solvent, concentration of trace components and reaction processes requiring stirring.Widely used in laboratory.



  The principle is that under the vacuum condition, the constant temperature heating ,making the rotating bottle rotate at a constant speed, the material forms a large area of film on the bottle wall, and then solvent evaporates efficiently. The solvent vapor is cooled by the high efficiency glass condenser and recycled in the collection bottle, which greatly improves the evaporation efficiency.

Features

1.1-way check valve automatically turns off when draining the receiving flask.
2. Downward-condensing vacuum connection design ensures safe vacuum operation.

3. Modular design (individual rotary and water bath modules) upgrades easily maintenance.

4. All components making contact with liquids and gases are made of borosilicate glass 3.3 and PTFE.

5. Easy, straight-forward and visual operation with digital speed and temperature display




Product Model

Evaporation Flask

Receiving Flask

Motor Power(w)

Bath Power

Rotation Speed

Evaporation Speed(L/h)

Power(V)

Dismension(cm)
PR-2
2L/29#
1L
40
1.5
10-180
1.2
220
55*35*75
PR-5
5L/50#
2L/3L
90
2
10-90
2
220
55*35*110
PR-10
10L/95#
5L
120
3
5-110
3.5
220
100*50*180
PR-20
20L/95#
10L+5L
120
5
5-110
5
220
110*70*200
PR-50
50L/125#
10L+10L
180
5
5-110
8
220
120*80*220

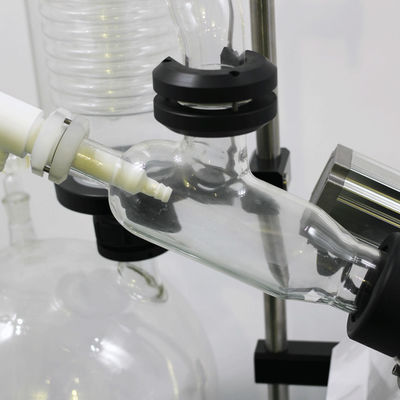

Product Details

Auto Lifting Desktop Rotary Vacuum Evaporator With Water Bath 0

Auto Lifting Desktop Rotary Vacuum Evaporator With Water Bath 1Auto Lifting Desktop Rotary Vacuum Evaporator With Water Bath 2

Packing and delivery

* We have good cooperation with many international express companies, such as DHL/ UPS/ FedEx/ TNT and other, as well as large shipping companies providing air shipping and sea shipping.

* We can also arrange global shipment according to your requirements.

Auto Lifting Desktop Rotary Vacuum Evaporator With Water Bath 3



Our factory



Auto Lifting Desktop Rotary Vacuum Evaporator With Water Bath 4

Nantong Sanjing Chemglass Co., Ltd. is a manufacturer and trader specialized in research, development and production of chemical glass instrument.



Main products include glass reactor, wiped film evaporator, rotary evaporator, short-path molecular distillation device and chemical glass tube.



Please feel free to contact us if you are interested in any of our products or would like to discuss a custom order, . We are looking forward to forming successful business relationship with new clients around the world in the near future.



Our service
(1) We offer 1 years warranty . For the manufacturing and quality problem, we offer replacement, maintenance service.
(2) The damage caused by the transportation shall be borned by the seller.
(3) We are able to do ODM. We could do OEM business mode with customers and the packaging could be customized according to per customer’s requirement.
